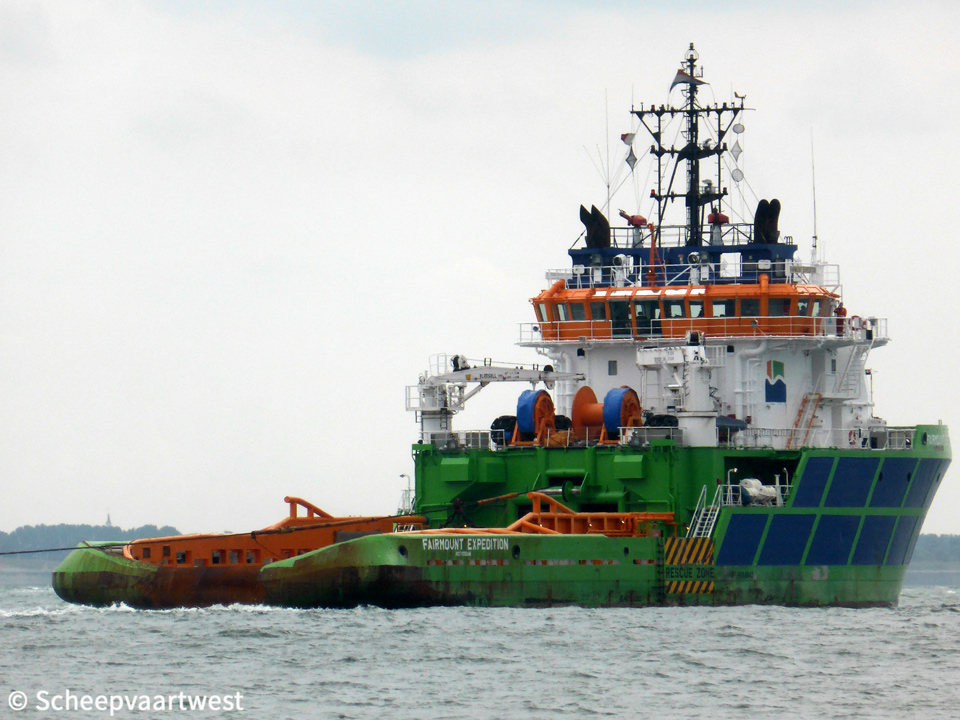

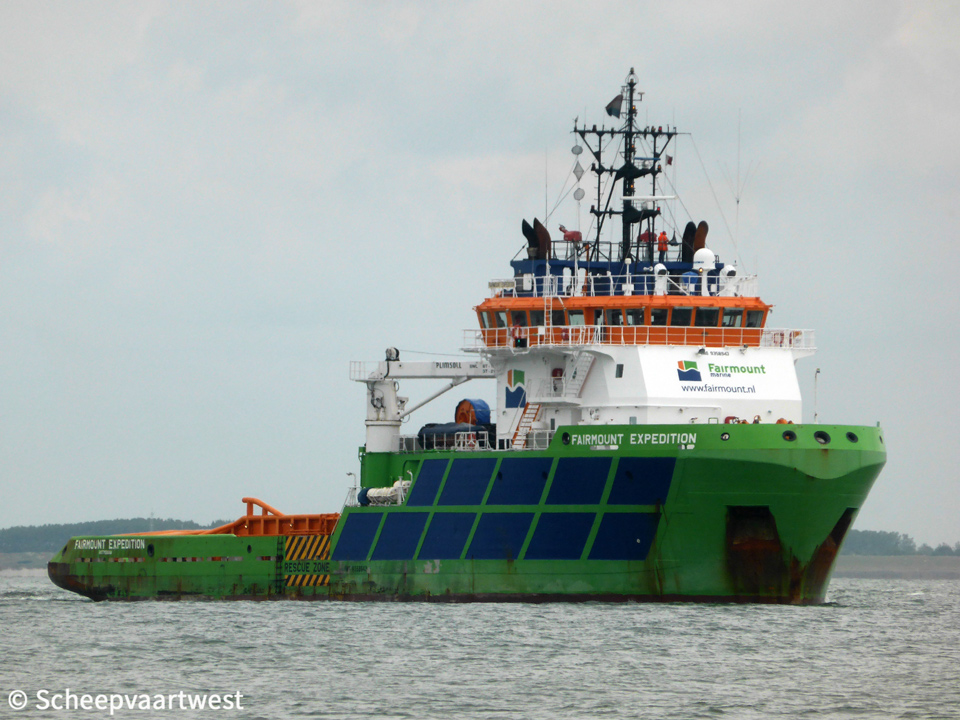

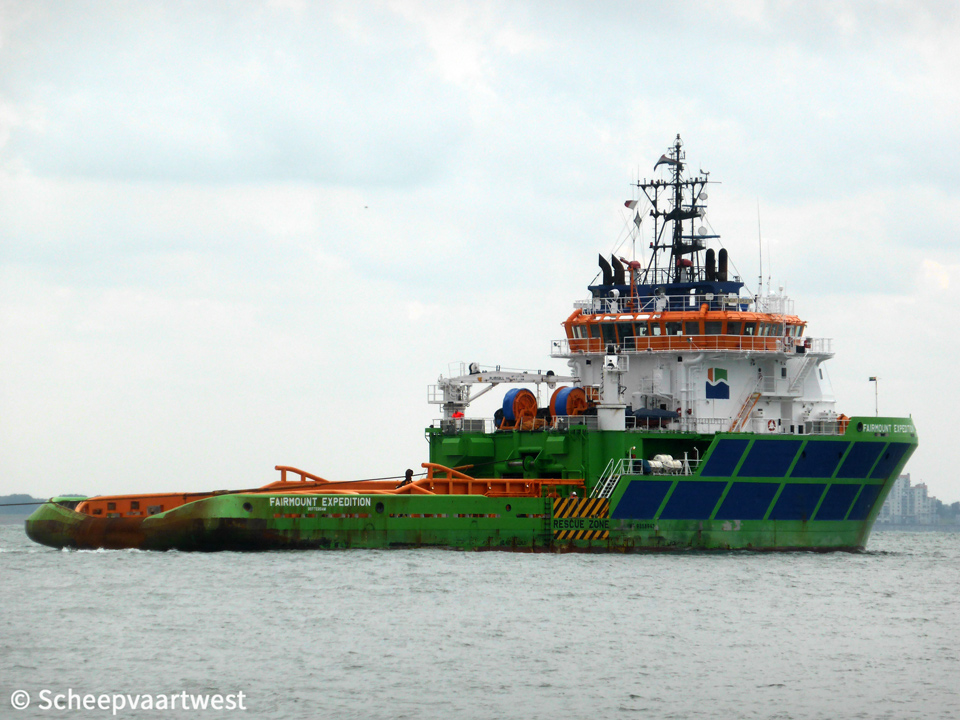

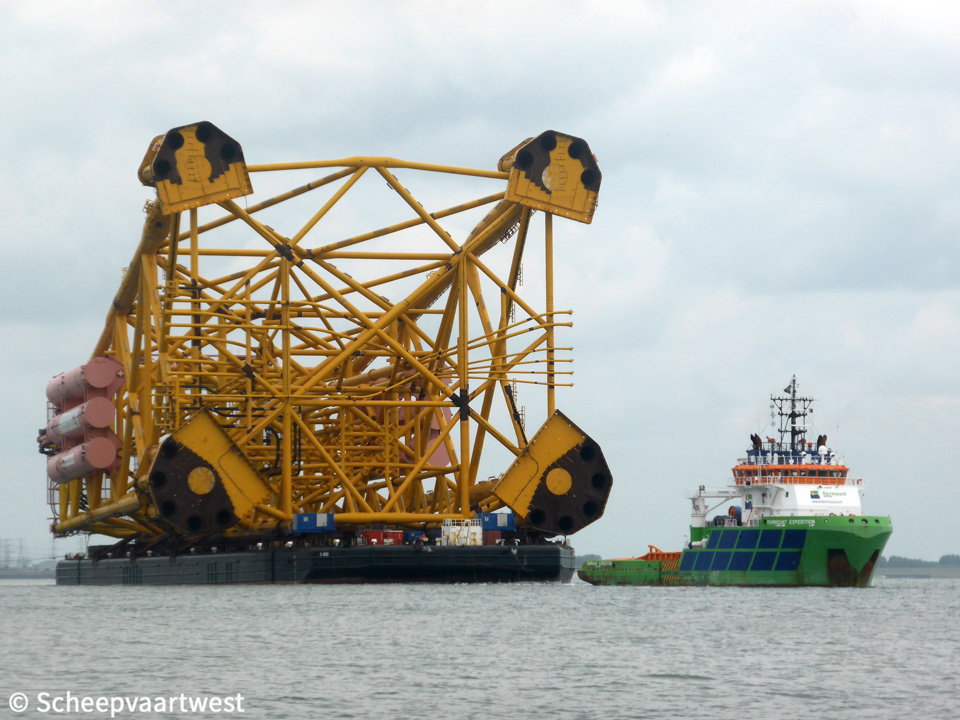

Westerschelde 19 June 2015 |
 |
 |
 |
||
| Westerschelde 19/06/15 | Westerschelde 19/06/15 | Westerschelde 19/06/15 | ||
|
Name |
FAIRMOUNT EXPEDITION |
|
Type |
Oceangoing anchor handling supply tug |
|
IMO-number |
9358943 |
|
Call sign |
9HA5068 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2008 - 2019 The Netherlands, Rotterdam- Call sign: PBNB |
|
GT |
3.239 t |
|
DWT |
Summer: 3.568 t |
|
NT |
971 t |
|
Length |
75,05 m overall 66,60 m between perpendiculars |
|
Breadth |
18,00 m overall |
|
Draught |
Max: 6,80 m min: 4,08 m |
|
Freeboard |
1.219 mm |
|
Depth |
8,00 m moulded |
|
Speed |
Max: 16,6 knots Service: 14,5 knots |
|
Built |
2007 |
|
Keel laid |
11/07/2006 |
|
Launch date |
10/02/2007 |
|
Delivery date |
08/06/2007 |
|
Builder |
Niigata Shipbuilding & Repair Niigata Japan |
|
Yard number |
0014 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
4x Wärtsilä 6L32 - 4 stroke single acting 6 cylinder 320 x 400 mm combustion engine each 3.000 kW / 4.080 bhp at 750 rpm |
|
Propellers |
2x Controllable pitch propellers at 155 rpm in nozzles Diameter: 3.850 mm |
|
Boilers |
2x CHO 22,00 m² - 19,0 bar |
|
Shaft generator |
2x 1.200 kW each 450 Volt 60 Hz |
|
Generators |
2x Caterpillar 3408C - 4 stroke 8 cylinder 137 x 152 diesel engines each 370 kW / 543 hp connected with generatorset each 370 ekW 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 155 kVA - 124 kW - 149 hp |
|
Bow thruster |
1x Controllable pitch thruster 825 kW / 1,122 bhp, forward 1x Controllable pitch thruster 736 kW / 1,001 bhp, aft |
|
Bollard pull |
205,0 t |
|
Deck area |
384 m² |
|
Towing winches/gear |
Winch: One electro-hydraulic waterfall type triple drum towing/anchor handling winch, consisting of three declutchable towing/ anchor handling drums Wires: Two towing drums: 1.500 m x 76 mm diameter tow wire each Working drum: 300 m x 76 mm diameter work wire Chains: 1 x 27,5 m towing chain diameter 76 mm (3 inch) 2 x 15 m towing chain diameter 76 mm (3 inch) 2 x 100 m towing pennant diameter 77 mm (3 inch) 1 x 50 m towing pennant diameter 77 mm (3 inch) 2 x 30 m towing pennant diameter 77 mm (3 inch) Brake holding capacity: 400 t |
|
Towing winches/gear (continued) |
Gypsy: 2x Non-declutchable gypsies, 3 inch Storage reels: 1x Spare tow wire-capacity 1.500 m x 76 mm four sets of pennant wires on storage reel Shark jaw: 1x Hydraulic operated shark jaw SWL 350 t Tow pins: 1x Set vertical hydraulic guide pins, SWL 200 t |
|
Fifi I & oil-pollution control |
2x Dual foam/water monitors, capacity each 1.200 m³/h, remote controlled Oil dispersant system |
|
Tank capacities |
HFO: 2.201 m³ MGO: 539 m³ Potable water: 216 m³ Foam tank: 11 m³ Dispersant tank: 11 m³ |
|
Cargo gear |
2x Deck cranes - SWL 8,0 tat 7,00 m outreach |
|
Accommodation |
Total bunks: 36 Officer and crew: 12 Towing crew: 24 |
|
Manager |
Fairmount Marine Rosmolenweg 20 3356 LK Papendrecht The Netherlands |
|
Owner |
Fairmount Expedition BV Rotterdam The Netherlands |
|
Renamed |
2019 Boka Expedition Malta, Valletta - Call sign: 9HA5068 Operator: Boskalis - The Netherlands |
|
Latest data adjustment |
25 May 2020 |
