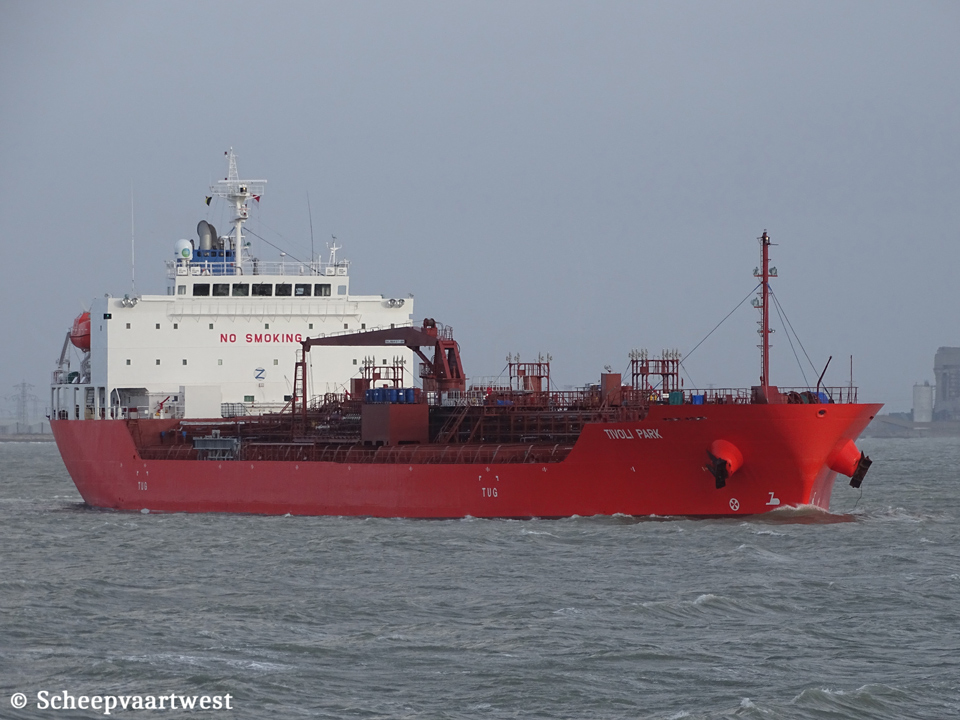

Tivoli Park IMO 9780536 04

Westerschelde 09 February 2019

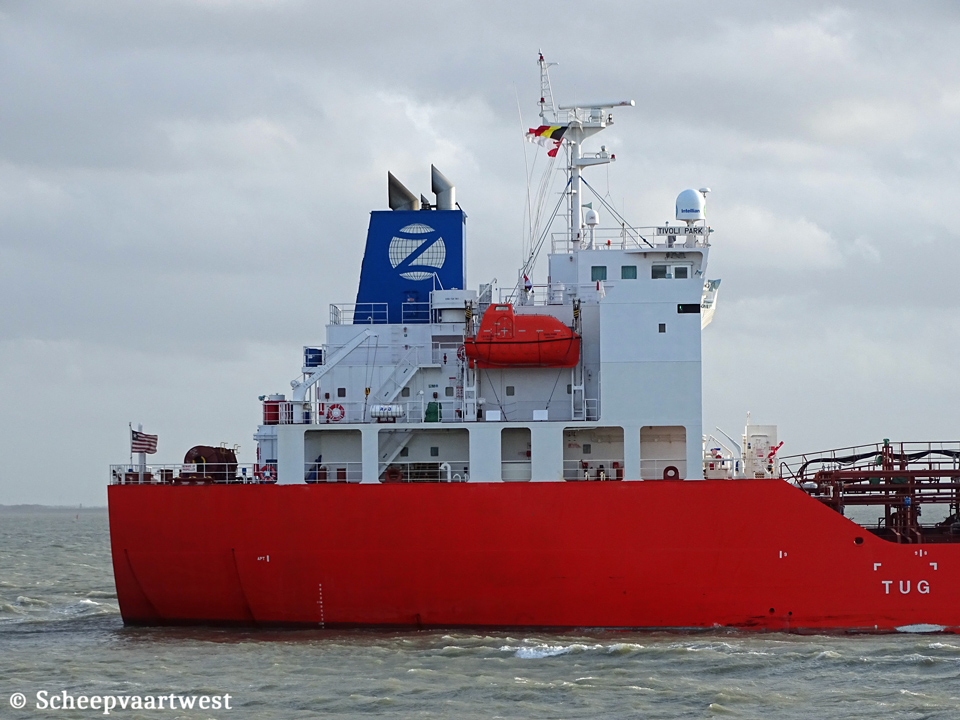

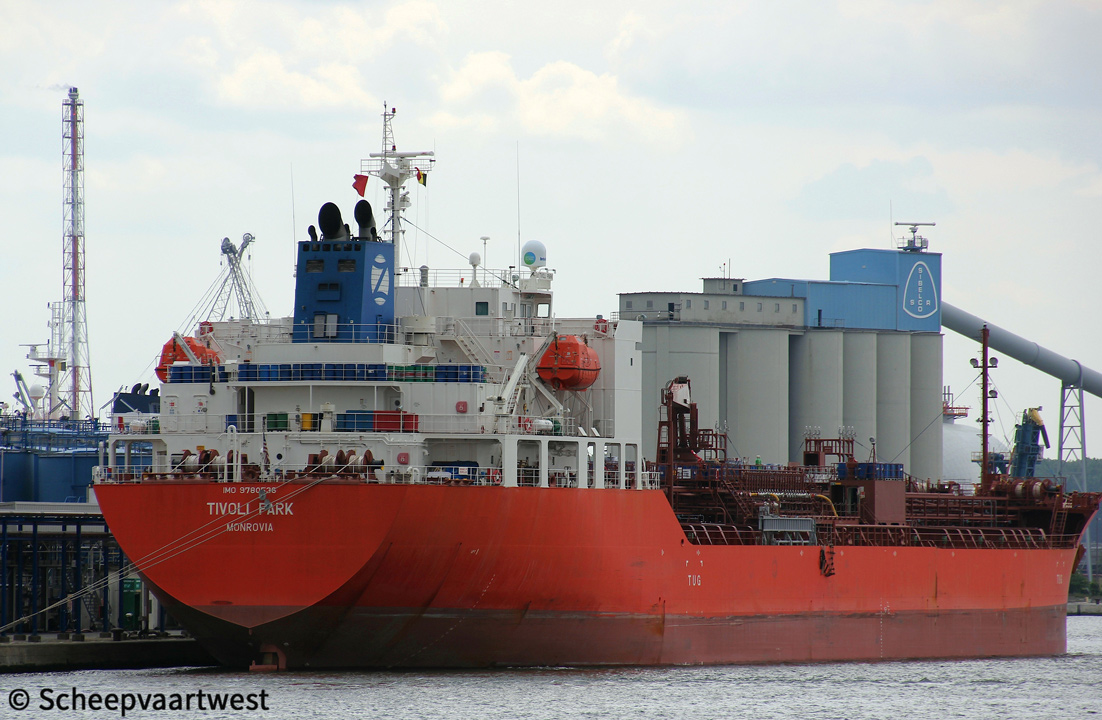

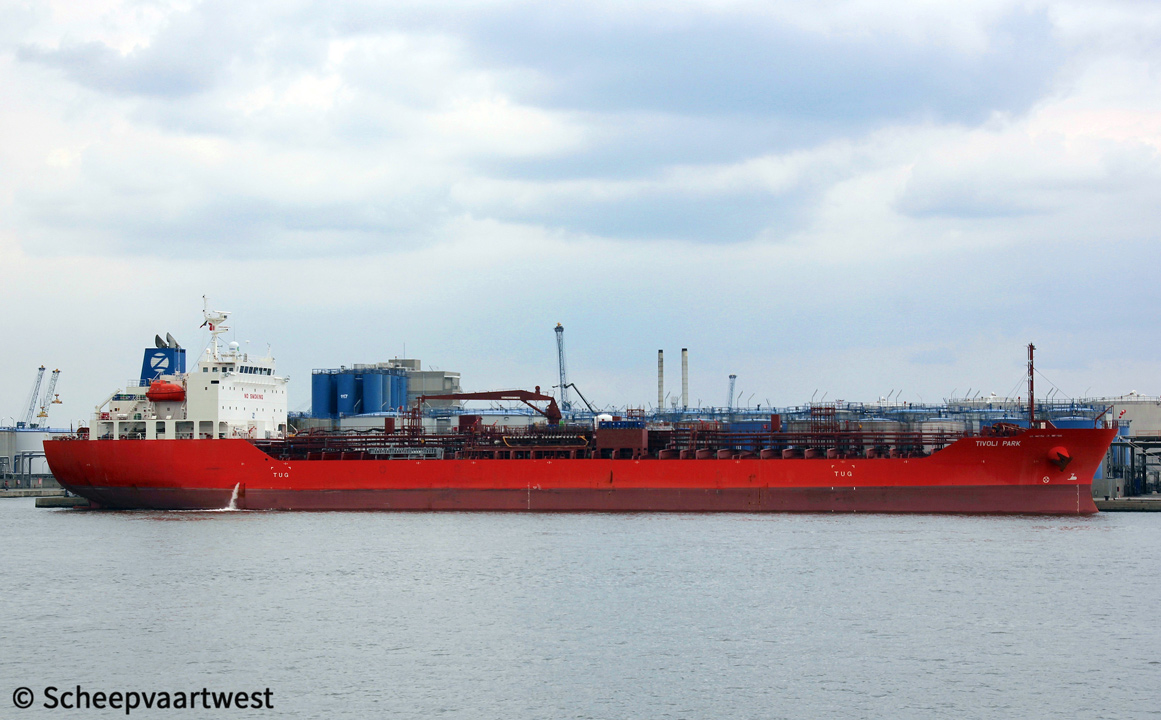

Tivoli Park IMO 9780536 03   Tivoli Park 02   Tivoli Park 01
Westerschelde 09/02/19 Antwerpen 07/05/19 Antwerpen 07/05/19


Name

TIVOLI PARK

Type

Chemical tanker

IMO-number

9780536

Call sign

D5QU2

Flag

Liberia

Port of registry

Monrovia

GT

12.142 t registered

Suez: 12.741 t

DWT

Summer: 19.994 t

Winter: 19.388 t

NT

6.232 t registered

Panama: 10.208 t

Suez: 10.692 t

Displacement

25.861 t

Light ship

5.866 t

Length

145,05 m overall

Breadth

24,20 m moulded

Draught

Summer: 9,76 m

Winter: 9,56 m

Moulded L x B x D

139,00 x 24,20 x 13,20 m

Registered L x B x D

139,26 x 24,20 x 13,20 m

Freeboard

Summer: 3.468 mm

Depth

13,20 m moulded

Speed

14,5 knots

Built

2018

Keel laid

18/12/2015

Launch date

16/04/2018

Date of completion

25/06/2018

Builder

Kitanihon Shipbuilding Co. Ltd.

Hachinohe

Japan

Yard number

637

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi 5UEC45LSE-1 - 2 stroke single acting 5 cylinder 450 x 1.840 mm combustion engine 4.900 kW at 124,0 rpm

Manufacturer: Akasaka Diesels Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 16,03 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 2.164 kVA

Cargo tank capacity

Liquid: 21.954 m³

Pumps

18x Cargo pumps

Manifolds

Distance bow to centre of manifold: 71,82 m

Distance deck to centre of manifold: 2,60 m

Distance manifold to rail: 4,35 m

Tank capacities

Fuel oil: 1.136,17 m³

Fresh water: 402,89 m³

Manager

Zodiac Maritime Limited

5th Floor, Portman House

2 Portman Street

London, W1H 6DU

United Kingdom

Registered owner

Walebiv Marine Inc.

Latest data adjustment

12 February 2021
