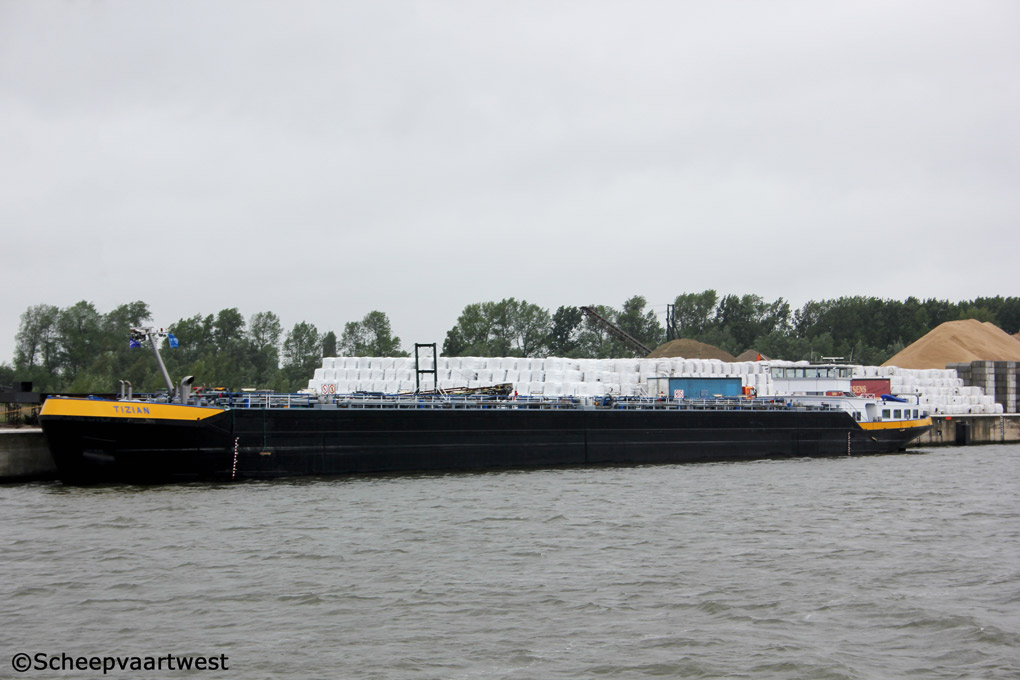

Tizian 01

Gent 10 May 2014

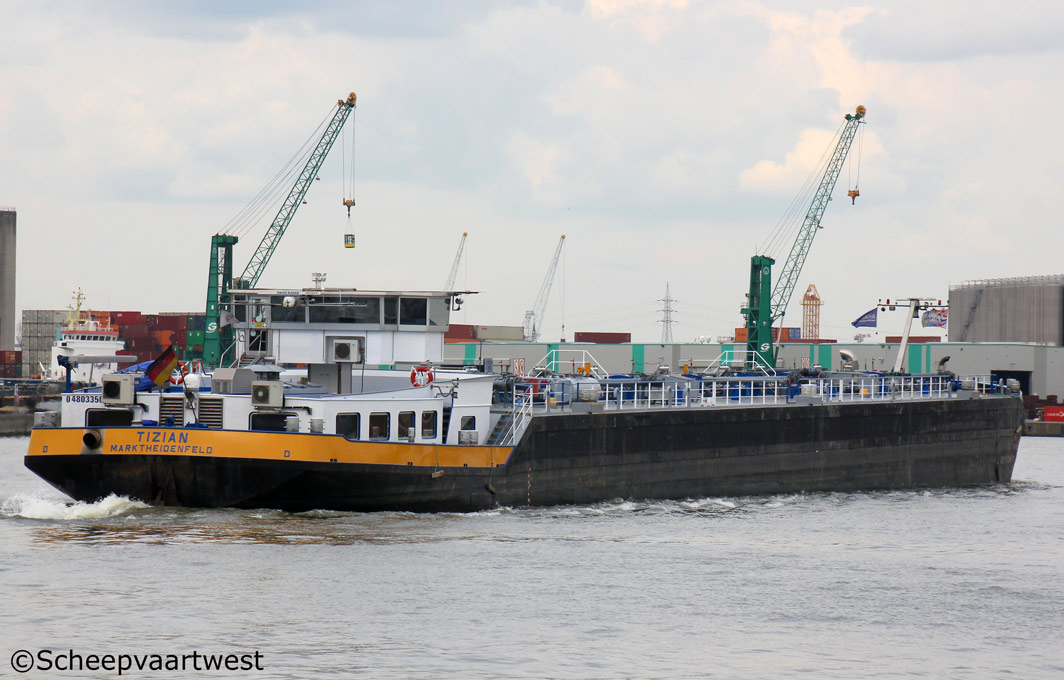

Tizian 02
Antwerpen 13/04/16



Name

TIZIAN

Type

Inland tanker

ENI-number

04803350

Previous ENI-number

2326776

Call sign

DG2201

Flag

Germany

Port of registry

Marktheidenfeld

Tonnage

2.828 t

Length

109,76 m

Breadth

11,40 m

Draught

3,50 m

Depth

5,70 m

Built

2004

Date of completion

20.12.2004

Builder casco

JSC Volgograd Shipbuilding Plant
Volgograd
Russia

Builder completion

Metaaldraaierij Sepers B.V.
Heerewaarden
The Netherlands

Hull material

Steel

Hull type

Double hull

Main engine

1x ABC 6 MDZC diesel engine 1.326 kW / 1.802 hp at 1.000 rpm

Built: 2004

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

900 Gent

Belgium

Gearbox

1x ZF W18000 C - reduction: 3,005:1

Propellers

1x Screw propeller solid - aft at 333 rpm

Boilers

1x CHO Aalborg 65,00 m² - 10,0 bar

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

1x Cummins KTA-19G3 diesel engine coupled with Stamford HCM534 generator - 550 kVA

1x Cummins 6CT8.3D(M) diesel engine coupled with Stamford HCM434D generator - 140 kVA

1x Cummins 6BT5.9G5 diesel engine coupled with Stamford UCM274C generator - 81 kVA

1x Hatz 44L41C diesel engine coupled with Stamforf UCI 224C generator - 32,5 kVA

Bow thruster

1x Cummins 535 hp - Verhaar Omega-Jet - 393 kW at 1.780 rpm

Number of tanks

9

Tank capacity

3.400 m³

Owner

C. Hochbein
Marktheidenfeld

Germany

Registered owner

BVG MS Tizian KG

Latest data adjustment

10 May 2016
