Antwerpen 26 May 2016 |
|
Name |

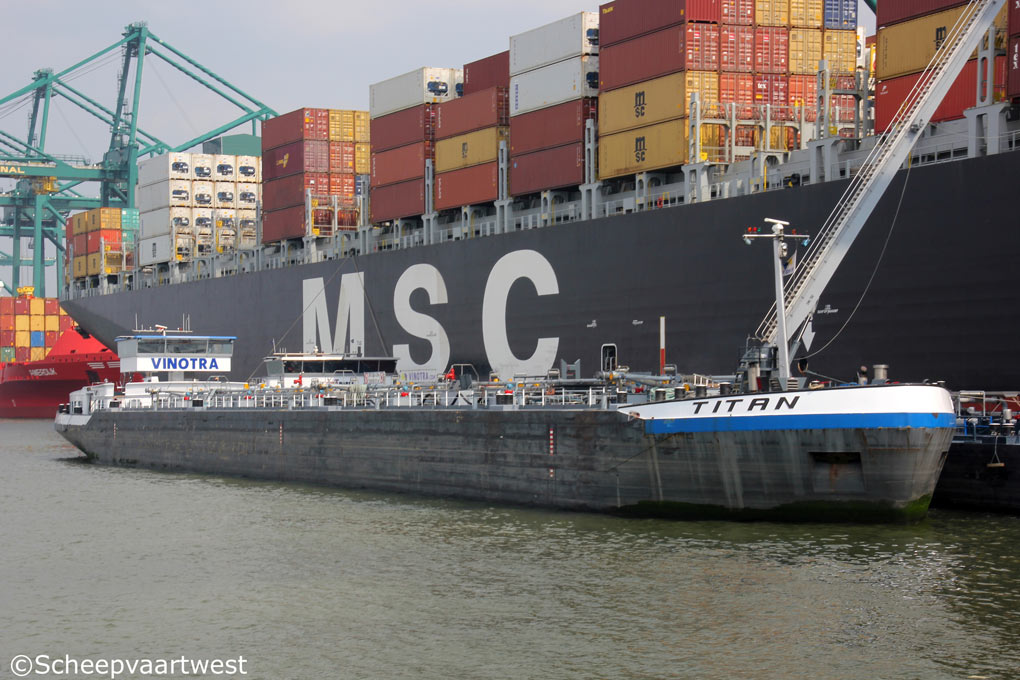

TITAN |
|
Type |
Inland tanker |
|
ENI-number |
02326528 |
|
Call sign |
PD3273 |
|
Flag |
The Netherlands |
|
Port of registry |
Krimpen a/d IJssel |
|
Tonnage |
4.221 t |
|
Length |
110,00 m |
|
Breadth |
13,50 m |
|
Draught |
4,20 m |
|
Depth |
5,50m |
|
Built |
2004 |
|
Builder casco |
Hangzhou Dongfeng Shipbuilding |
|
Builder completion |
Smits Machinefabriek en Scheepsreparatie B.V. |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3516 (B) DI-TA electronic engine 1.491 kW / 2.028 hp at 1.600 rpm |
|
Gearbox |
1x ZF Marine - reduction: 4,950:1 |
|
Propellers |
1x 5 blades - diameter 1.800 mm with nozzle diameter 1.816 mm |
|
Generators |
1x Cummins KTA 19C3 - 463 kW 1x Cummins N14 G2 - 358 kW 2x Cummins 6BT 5,9 G6 - 111 kVA |
|
Bow thruster |
1x Cummins 535 hp - Omega type 31130-4k - 393 kW |
|
Cargo tank capacity |
4.514 m³ |
|
Pump capacity |
1.500 m³/h |
|
Lifting equipment |
1x Van Wijk bunker crane 25,00 m - 10 inch 1x Car crane hydraulic extendable 15,00 m - 1.750 kg |
|
Charterer |
Vinotra |
|
Owner |
A. Kooren Scheepvaartbedrijf BV (Ton en Kees Kooren) |
|
Latest data adjustment |
02 July 2016 |
