Westerschelde 04 May 2019 |
|
Name |

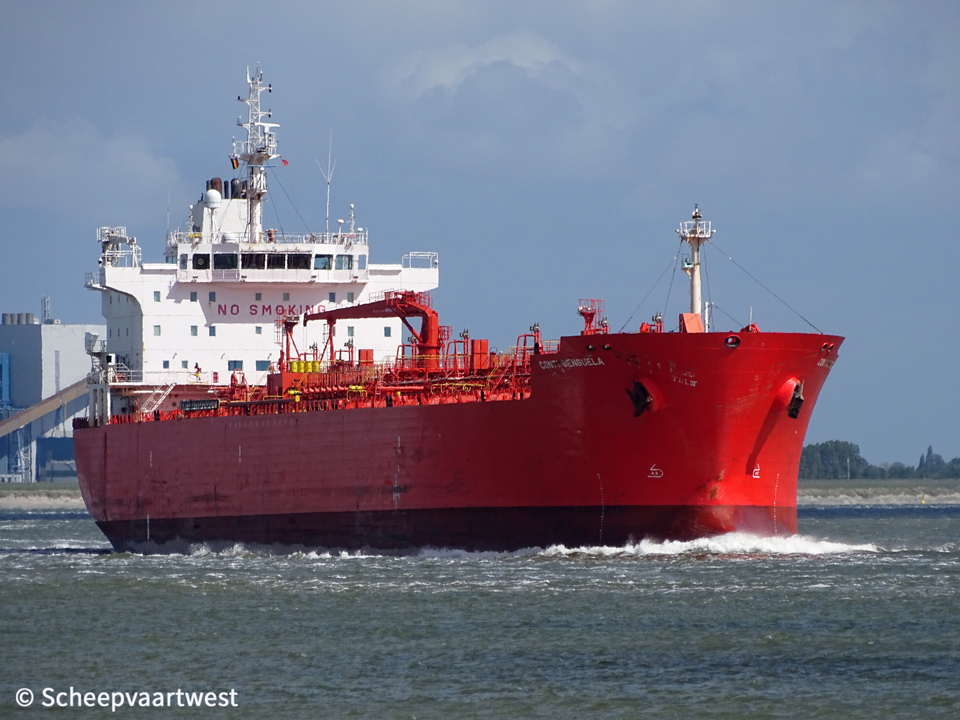

CONTI BENGUELA |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9391373 |
|
Call sign |
A8PL7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.403 t |
|
DWT |
Summer: 37.652 t |
|
NT |
9.640 t |
|
Displacement |
45.650 t |
|
Length |
184,32 m overall 176,00 m between perpendiculars |
|
Breadth |
27,43 m extreme |
|
Draught |
Max: 11,32 m |
|
Keel to mast end |
46,34 m |
|
Air draft |
Lightship: 44,06 m full mast Normal ballast: 39,64 m full mast |
|
Freeboard |
Summer: 5.880 mm Winter: 6.150 mm |
|
Depth |
17,22 m moulded |
|
Speed |
15,5 knots |
|
Built |
2008 |
|
Keel laid |
19/11/2007 |
|
Launch date |
11/02/2008 |
|
Date of completion |
02/04/2008 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. Ulsan South Korea |
|
Yard number |
2056 |
|
Hull Material |
Shipbuilding Steel (Standard) |
|
Hull type |
Double hull Double bottom continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN B&W 6S46MC-C - 2 stroke 6 cylinder combustion engine 7.860 kW |
|
Propellers |
1x Mono-block fixed pitch propeller Builder: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Economizer) 11,8 bar Heating surface: 260,0 m² Builder: KangRim Industries Co., Ltd. (3rd Factory) 1x Auxiliary boiler, oil/gas fired (Mission OL) - 9,0 bar Heating surface: 110,0 m² Builder: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Hyundai/Himsen 5H21/32 main diesel generatorsets each 912,5 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 1500 litres - 8,0 bar 1x Receiver 300 litres - 8,0 bar |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
40.805 m³ |
|
Slop tank capacity |
1.054 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
12x Framo Deepwell cargo pumps each 500 m³/h 2x ballast pumps each 750 m³/h |
|
Manifolds |
Bow to centre manifold: 92,72 m Stern to centre manifold: 91,60 m |
|
Tank capacities |
Ballast: 18.061,6 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t |
|
Crew size |
25 |
|
Manager |
NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG Harburger Str. 47 21614 Buxtehude Germany |
|
Registered owner |
Conti 146. Schifffahrts-GmbH & Co. KG MT "Conti Benguela" Care of NSB Niederelbe Schiffahrtsgesellschaft Mbh & Co Kg Harburger Strasse 47-51 21614 Buxtehude Germany |
|
Latest data adjustment |
10 January 2020 |
