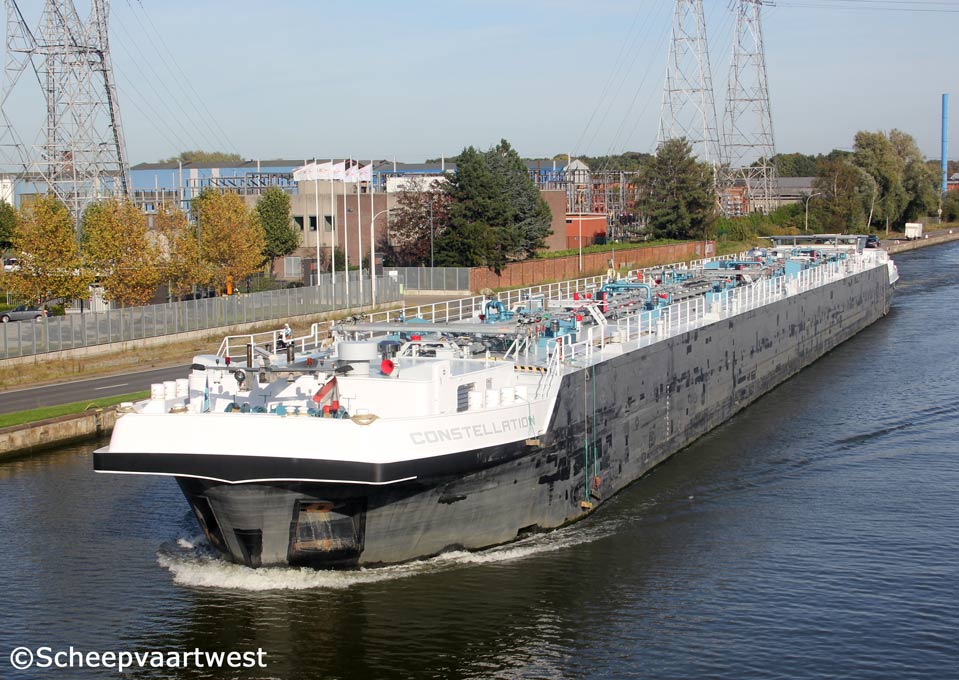

Constellation 03

Merksem, Belgium 18 October 2014

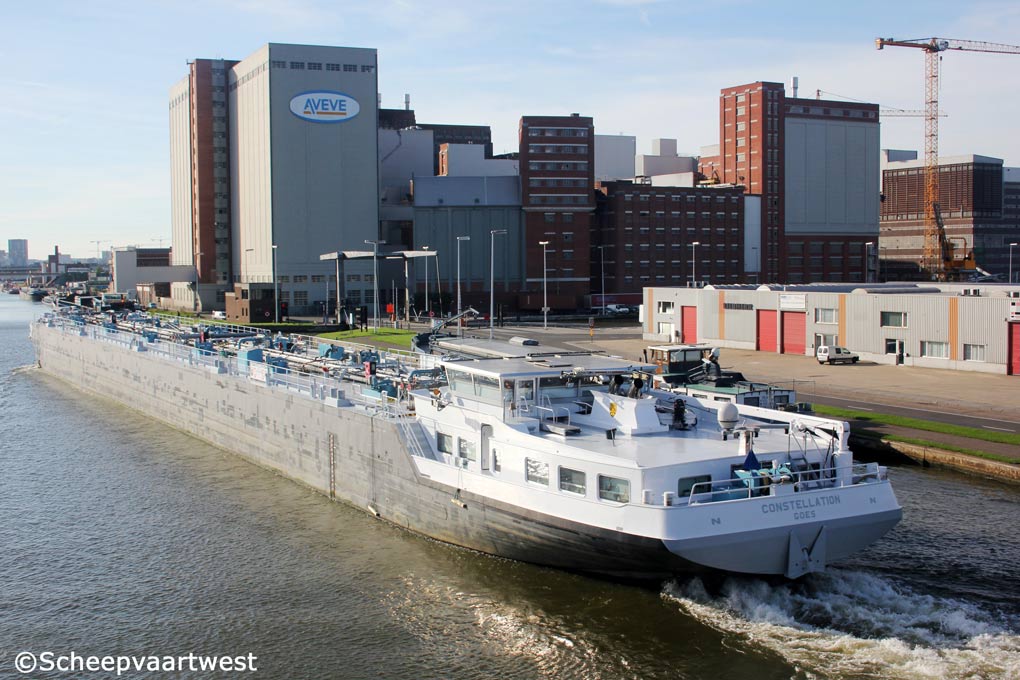

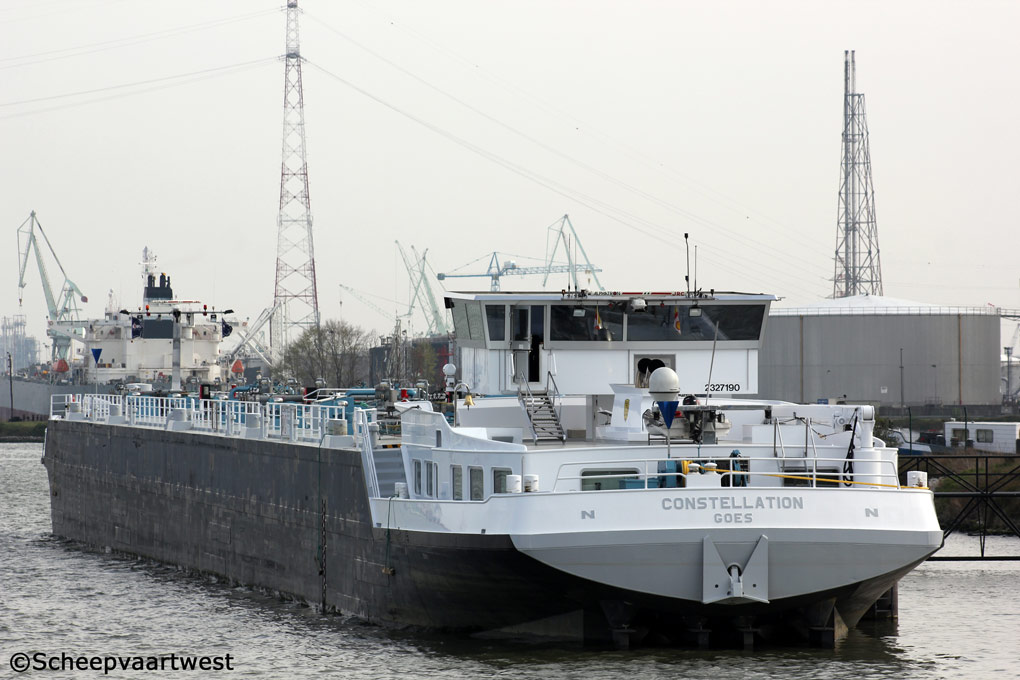

Constellation 04   Constellation 01
Merksem, Belgium 18/10/14 Antwerpen 29/03/14


Name

CONSTELLATION

Type

Inland tanker

ENI-number

02327190

Call sign

PD2141

Flag

The Netherlands

Port of registry

Goes

GT

2.352 t

DWT

3.497 t

Length

125,00 m

Breadth

11,40 m

Draught

3,65 m

Depth

5,50 m

Built

2005

Date of completion

26.08.2005

Builder casco

Shpiyard Severnav

Drobeta Turnu Severin

Romania

Builder completion

Breko Nieuwbouw B.V.
Papendrecht
The Netherlands

Yard number

364

Hull material

Steel

Hull type

Double hull

Main engine

2x ABC 6 MDZC - 4 stroke 6 cylinder 256 x 310 mm diesel engines each 1.079 kW / 1.466 hp at 800 rpm

Built: 2005

Builder: Anglo Belgian Corporation

Wiedauwkaai 43

900 Gent

Belgium

Propellers

2x Solid 5 blades propellers - aft at 320 rpm diameter: 1.700 mm with nozzle type Optima diameter: 1.714 mm

Generators

1x Cummins KTA 19 G3 - 629 hp diesel coupled with Marathon 573 RSL 4032 - 550 kVA

1x Cummins 6 CT 8.3 D(M) - 222 hp diesel engine coupled with Marathon 431 PSL 6202 - 141 kVA

1x Cummins 6BT 5.9 G5 - 106 hp diesel engine coupled Marathon 362 PSL 1606 - 81 kVA

Bow thruster

1x Cummins 535 hp - Verhaar Omega-Jet 31120 4K

Number of tanks

12

Cargo capacity

4.405 m³

Cargo handling

6x Pumps - 900 m³/h

Owner

Maelstede Scheepvaartbedrijf BV
Wemeldingse Zandweg 1-A
4421 ND Kapelle
The Netherlands

Latest data adjustment

05 may 2014
