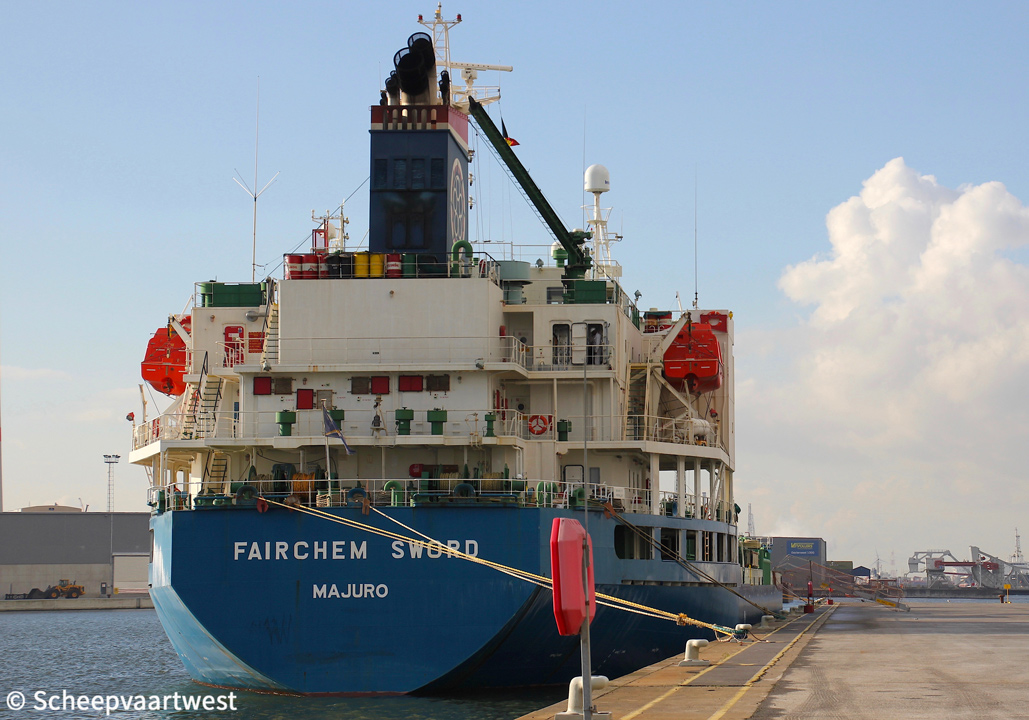

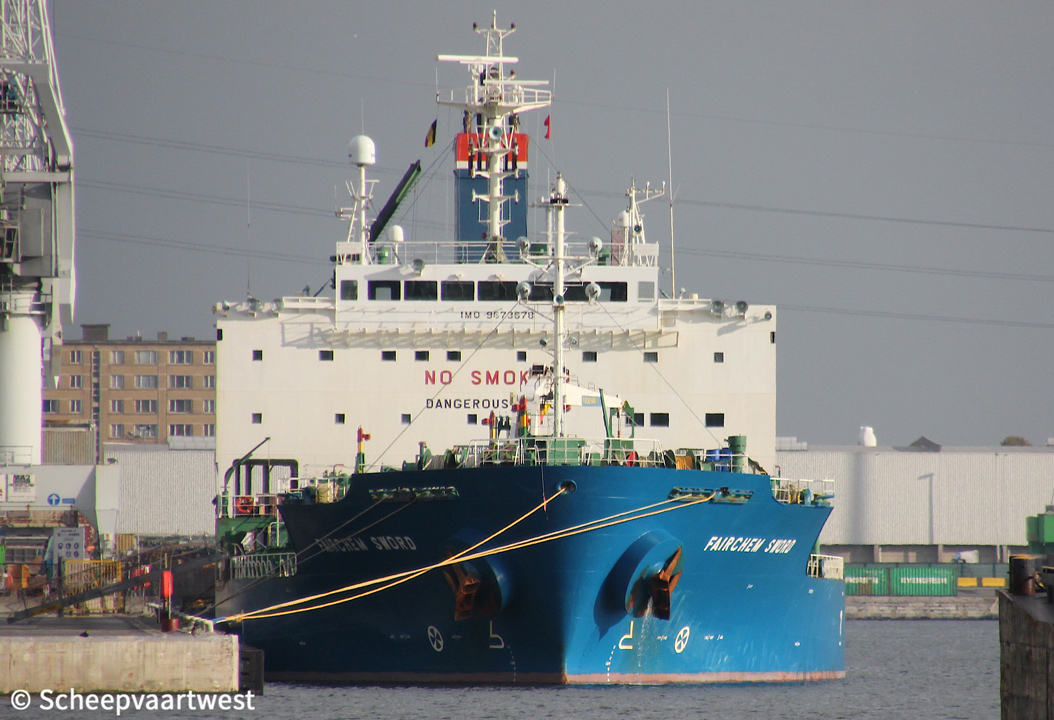

Antwerpen 19 November 2019 |
 |
 |
|

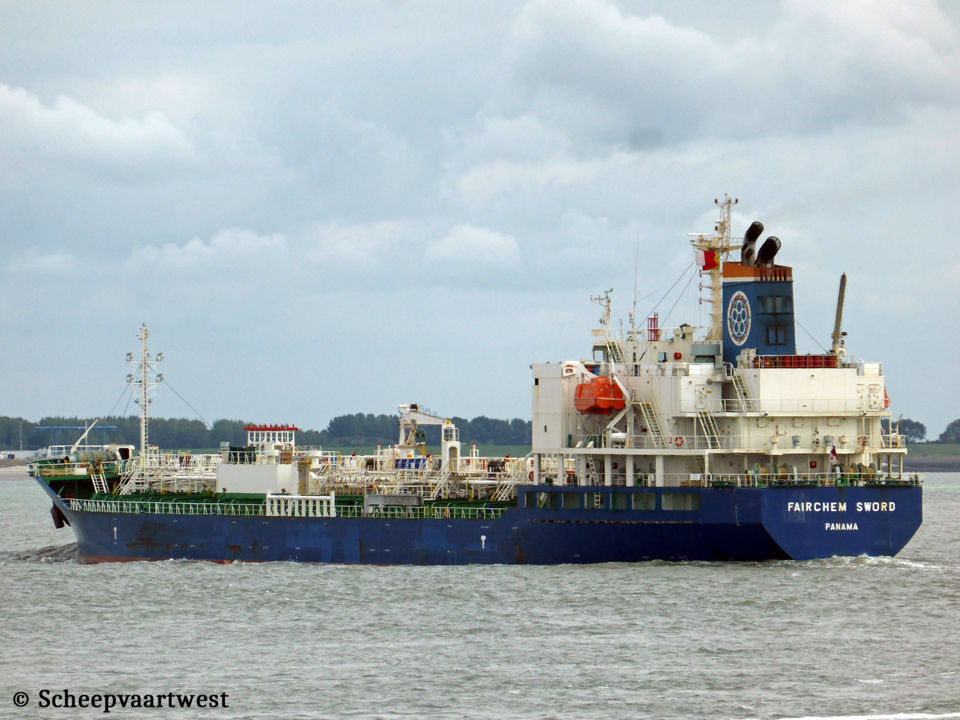

| Antwerpen 19/11/19 | Westerschelde 08/09/15 | |
|
Name |
FAIRCHEM SWORD |
|
Type |
Tank for oil products and chemicals |
|
IMO-number |
9673678 |
|
Call sign |
V7HU5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2013 - 2017 Republic of Panama, Panama City - Call sign: 3FYG5 |
|
GT |
11.752 t registered |
|
DWT |
Summer: 19.992,69 t |
|
NT |
6.272 t registered |
|
Length |
146,60 m overall |
|
Breadth |
23,73 m moulded |
|
Draught |
Max: 9,72 m |
|
Moulded L x B x D |
138,00 x 23,70 x 13,00 m |
|
Registered L x B x D |
138,50 x 23,70 x 13,00 m |
|
Freeboard |
Summer: 3.314 mm |
|
Depth |
13,00 m moulded |
|
Speed |
15,7 knots |
|
Built |
2013 |
|
Keel laid |
27/12/2012 |
|
Launch date |
14/05/2013 |
|
Date of completion |
02/10/2013 |
|
Builder |
Fukuoka Ship Building Co. Ltd. Nagasaki Yard Nagasaki Japan |
|
Yard number |
N-2058 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.000 kW / 6.798 hp at 120,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 420 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,3 bar Evaporation: 16,00 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 1.940 kVA |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 98% |
Liquid: 21.631 m³ |
|
Tank capacities |
Fuel oil: 963 m³ Fresh water: 207 m³ |
|
Operator |
Anglo-Eastern Shipmanagement (S) Pte Ltd. Republic of Singapore |
|
Registered owner |
T.A.C.K. Shipping S.A |
|
Previous owners |
2013 - 2017 Polaris Line Co., Inc. - Republic of Panama 2017 Eurus Maritime SA |
|
Latest data adjustment |
23 March 2024 |
