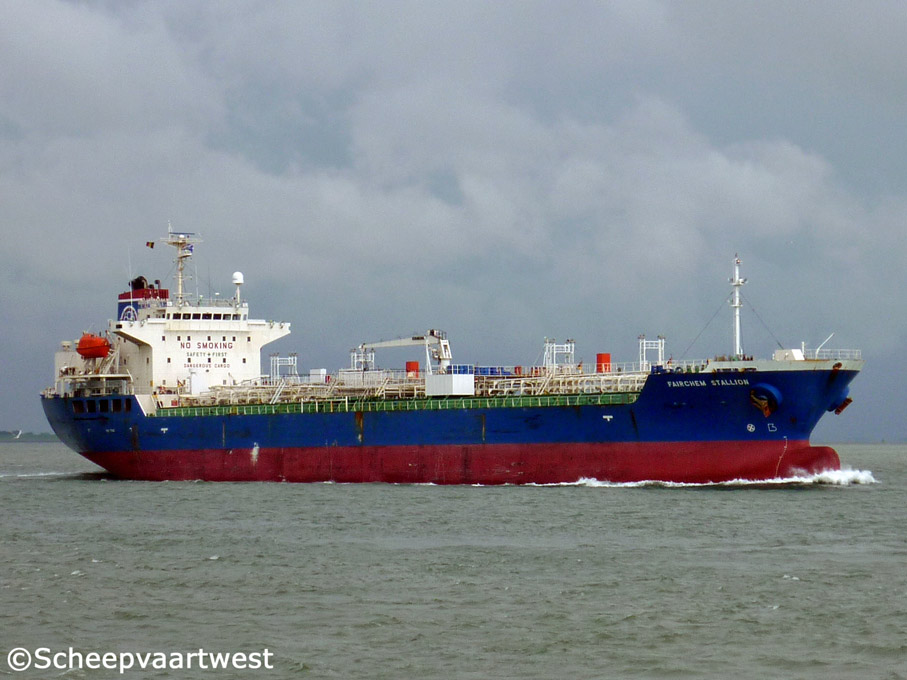

Fairchem Stallion 02
Westerschelde 08 July 2012

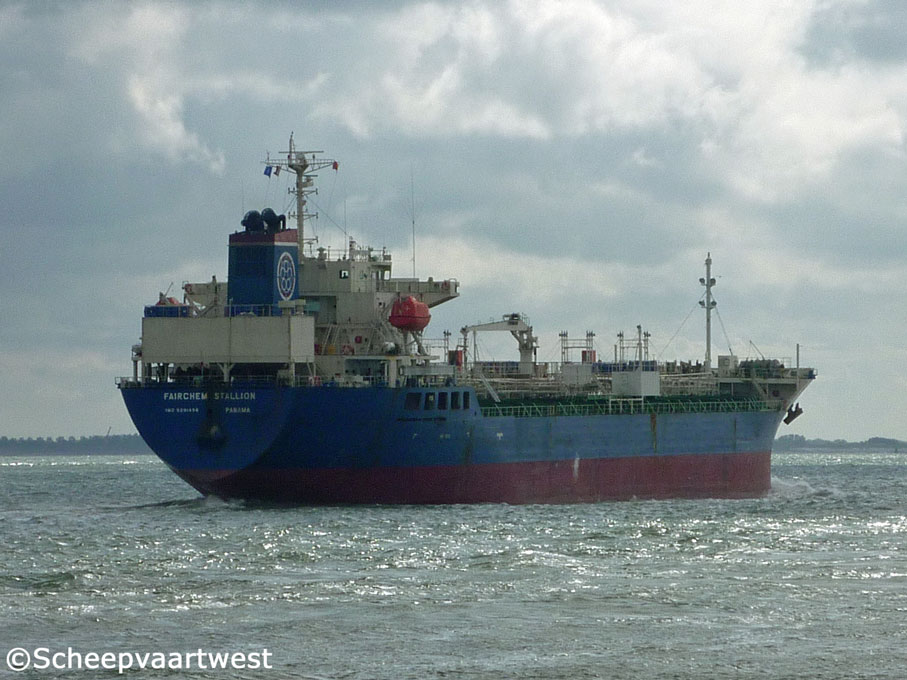

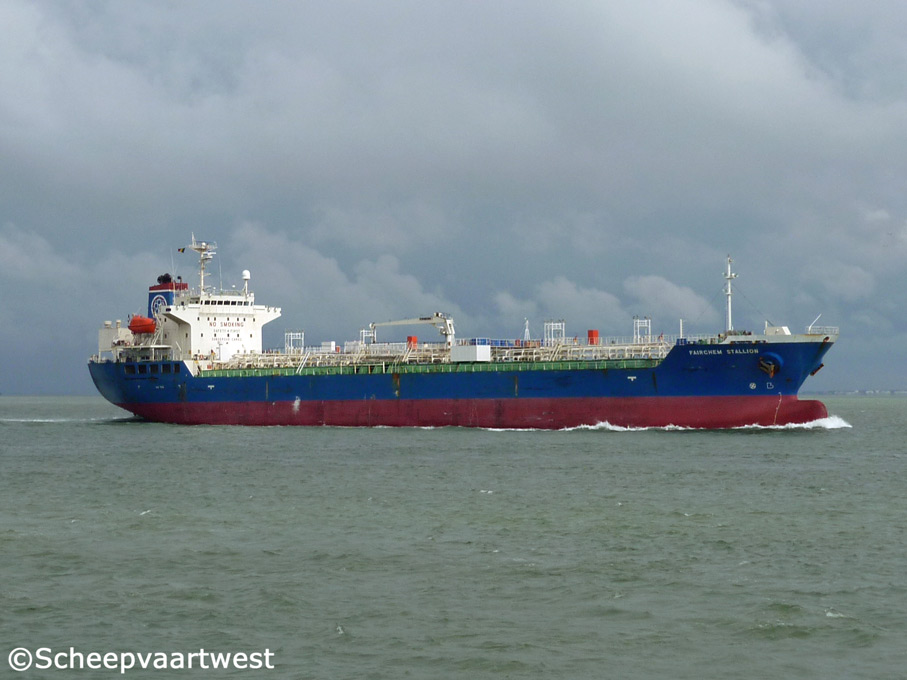

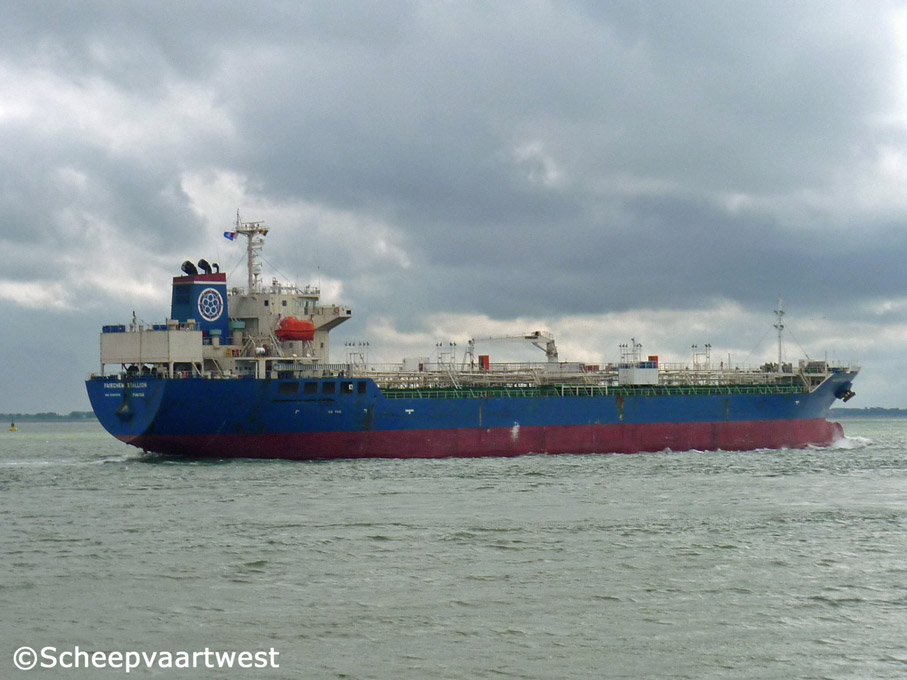

Fairchem Stallion 04   Fairchem Stallion 05   Fairchem Stallion 07
Westerschelde 08/07/12 Westerschelde 08/07/12 Westerschelde 08/07/12


Name

FAIRCHEM STALLION

Type

Chemical - Oil products tanker - Molasses

IMO-number

9291456

Call sign

H3WD

Flag

Republic of Panama

Port of registry

Panama City

GT

11.628 t registered

DWT

Summer: 20.704 t

NT

6.418 t registered

Suez: 10.862,44 t

Panama: 9.784 t

Length

145,53 m m

Breadth

23,70 m registered

Draught

Summer: 9,95 m

Moulded L x B x D

137,00 x 23,70 x 13,35 m

Registered L x B x D

137,92 x 23,70 x 13,35 m

Freeboard

3.432 mm

Depth

13,35 m moulded

Speed

16,3 knots

Built

2004

Keel laid

19.11.2003

Launch date

26.02.2004

Date of completion

21.05.2004

Builder

K.K. Usuki Zosensho (Usuki Shipyard Co., Ltd.)
Usuki
Japan

Yard number

1685

Hull material

Steel

Main engine

1x MAN-B&W/Kawasaki  6S42MC 2 stroke single acting 6 cylinder 420 x 1.72-64 mm diesel engine - 6.150 kW / 8.362 hp at 136,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Sea water lubrication shaft

Diameter: 420 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 16,05 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Diesel generatorsets - 1.715 kVA

Bow thruster

1x 552 kW

Number of tanks

20

Tank 1: P: 647 m³ - S: 633 m²

Tank 2: P: 1.210 m³ - S: 1.223 m³

Tank 3: P: 1.222 m³ - S: 1.223 m³

Tank 4: P: 1.796 m³ - S: 1.799 m³

Tank 5: P: 629 m³ - S: 630 m³

Tank 6: P: 1.799 m³ - S: 1.802 m³

Tank 7: P: 1.179 m³- S: 1.161 m³

Tank 8: P: 1.160 m³ - S: 1.176 m³

Tank 9: P: 789 m³ - S: 773 m³

Tank 10: P: 661 m³ - S: 677 m³

Segregations

20

Cargo liquid capacity 98%

22.489 m³- Including slop tanks

Pumps

14x Framo deepwell pumps - each 250 m³/h

6x Framo deepwell pumps - each 150 m³/h

Tank capacities

Fuel oil: 1.060 t

Fresh water: 225 t

Water ballast: 7.801 t

Crew

24

Manager

Anglo-Eastern Shipmanagement (S) Pte., Ltd.
Singapore
Republic of Singapore

Operator

Fairfield Chemical Carriers Inc.

21 River Rd,

Wilton, CT 06897
United States of America

Registered owner

Eurus Maritime S.A.

Panama City
Republic of Panama

Last data update

01 January 2014
