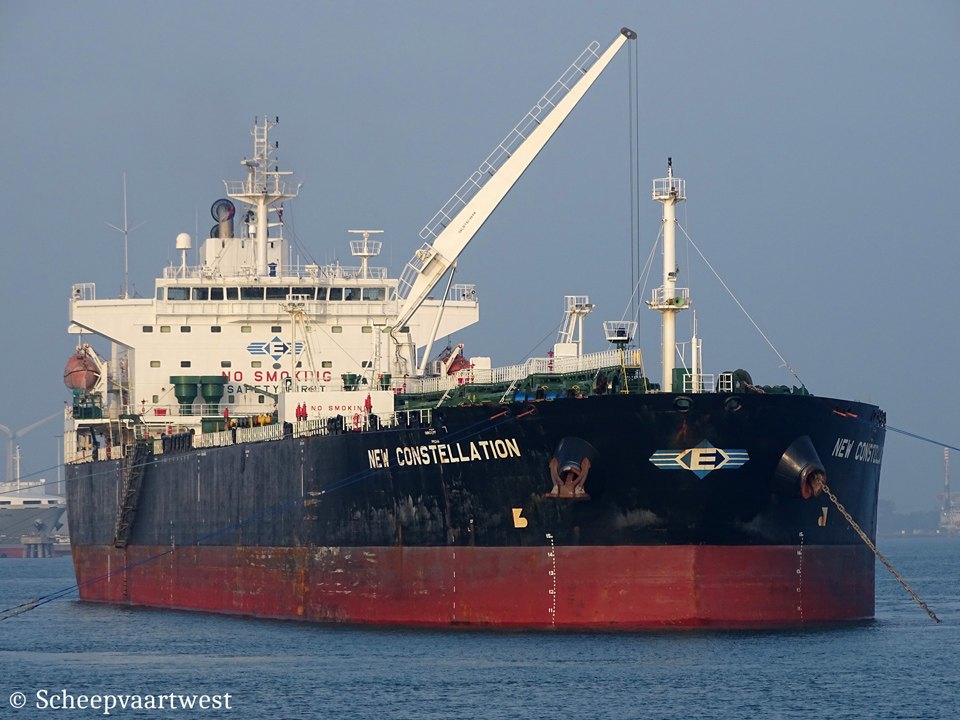

New Constellation 03

Vlissingen, The Netherlands 25 September 2017

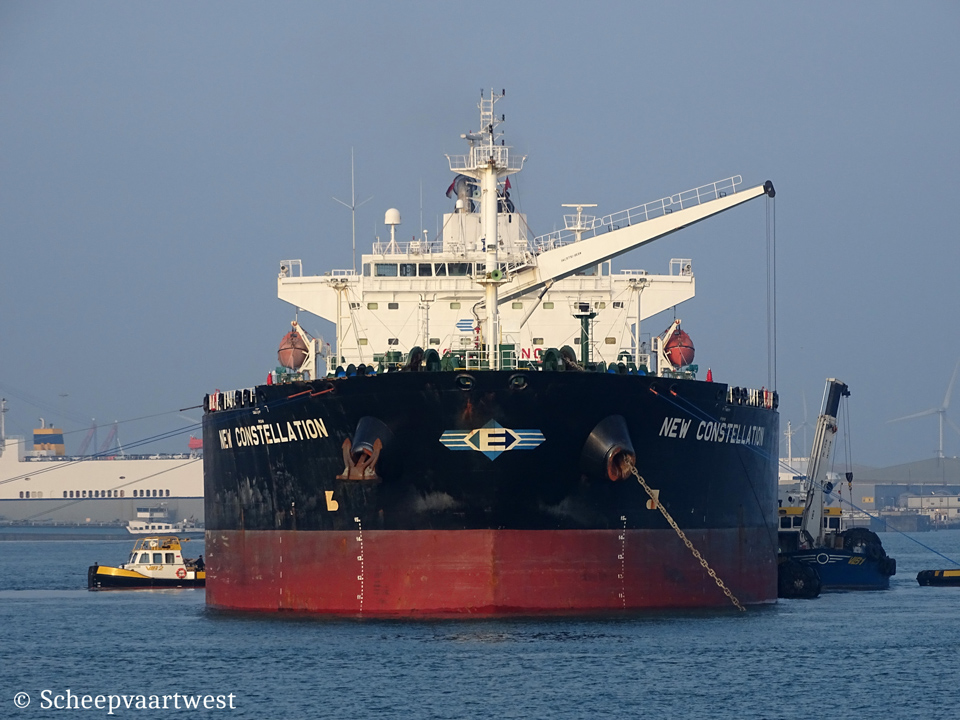

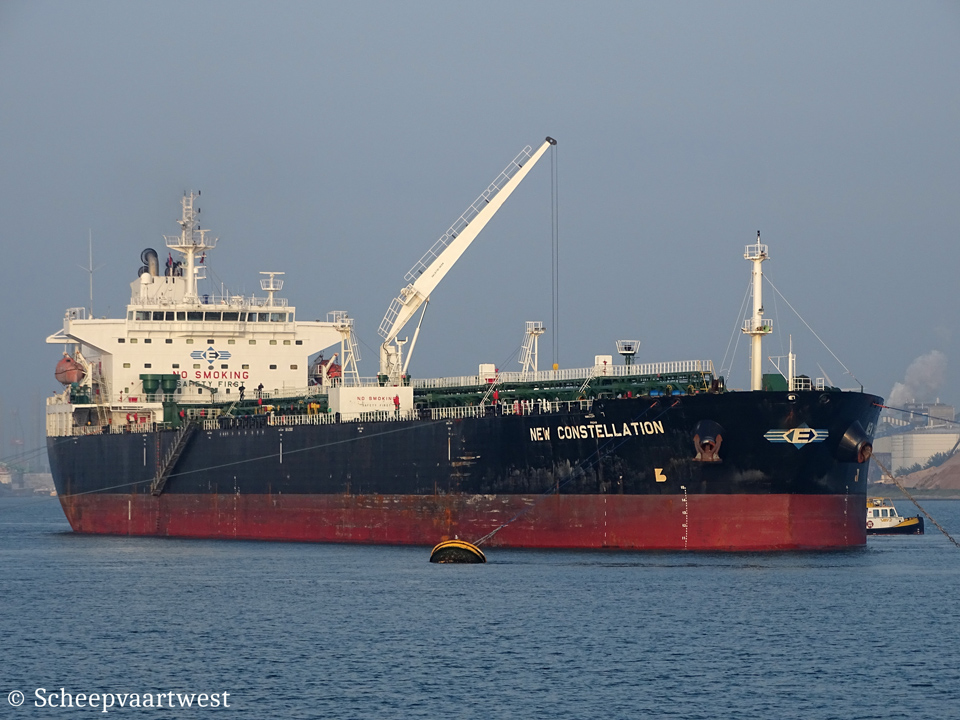

New Constellation 02   New Constellation 04
Vlissingen 25/09/17 Vlissingen 25/09/17


Name

NEW CONSTELLATION

Type

Crude oil tanker - Panamax

IMO-number

9308091

Call sign

V7GG5

Flag

Marshall Islands

Port of registry

Majuro

GT

41.994 t registered

Suez: 44.144,5 t

DWT

Summer: 73.911 t

NT

22.401 t registered

Panama: 34.797 t

Suez: 39.154,4 t

Length

228,60 m overall

219,70 m between perpendiculars

Breadth

32,26 m moulded

32,29 m extreme

Draught

Max: 14,52 m

Keel - top of mast/highest point

49,03 m

Freeboard

8.404 mm

Depth

20,80 m moulded

Speed

Service: 14,5 knots

Built

2006

Keel laid

02/11/2004

Launch date

12/12/2005

Delivery date

14/06/2006

Builder

New Century Shipbuilding Co. Ltd.
Jingjiang
China

Yard number

0307313

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 2

Oil tight: 10

Main engine

1x MAN B&W 5S60MC-C - 5 cylinder 600 x 2.400 mm combustion engine 11.300 KW / 15.363 bhp at 105,0 rpm

Manufacturer: Hudong Heavy Machinery Co.,Ltd.

Propellers

1

Manufacturer: HHI, Engine & Machinery Division

Boilers

1x Composite exhaust gas and fired boiler - 10,0 bar

2x Auxiliary oil fired boiler - 18,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: Taiyo Electric Co.,Ltd Gifu Factory

Number of cargo tanks

10

Cargo tank capacity 98%

81.195,1 m³ excl. slop tank

Number of slop tanks

3

Slop tank capacity 98%

2.833,6 m³ + 320,6 m³ residual tank

Number of pumps

3x Steam centrifugal pumps each 2.300 m³/h

Manifolds

Distance bow to centre manifold: 111,00 m

Distance between cargo manifold centres: 2.500 m

Distance rail to manifold: 4.275 mm

Distance deck to centre manifold: 2.100 mm

Number of tanks

Ballast: 18

Lubricating oil: 15

Fuel oil: 9

Waste water: 5

Diesel oil: 5

Sludge: 4

Fresh water: 4

Potable water: 2

Chain: 2

Organic compound: 1

Tank capacities 100%

Diesel oil: 324,8 m³

Freshwater: 692,8 m³

Fuel oil: 2.089,8 m³

Lube oil: 140,8 m³

Tank ballast: 27.396,7 m³

Lifting equipment

1x Engine room overhead crane - SWL 4,5 t

1x Hose handling crane - SWL 15,0 t

1x Provision crane - SWL 5,0 t

Manufacture: Jiangyin Xingcheng Marine Machinery Factory

Technical operator

Expedo Ship Management (Canada) Ltd.
One City Centre Drive, Suite 1510
Mississauga
Ontario
L5B 1M2
Canada

Commercial operator

Expeda Shipping corporation (Monaco)
"Le Park Palace"
5, Impasse de la Fontaine
MC 98000 Monaco

Registered owner

New Constellation Corporation
Majuro
Marshall islands

Latest data adjustment

11 November 2018
