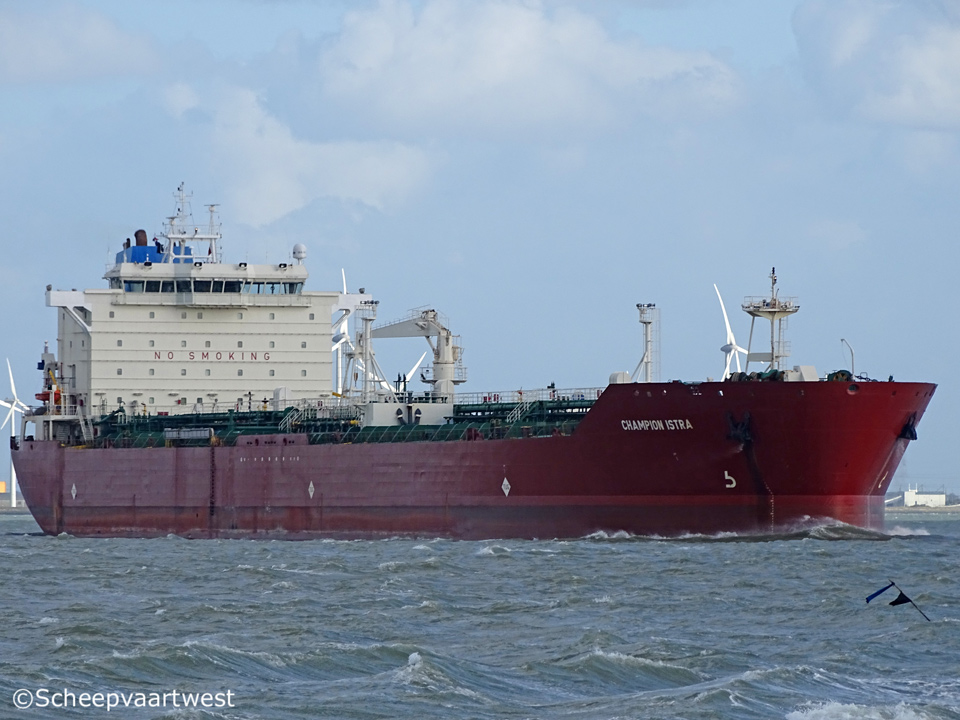

Champion Istra 01

Westerschelde 21 October 2017

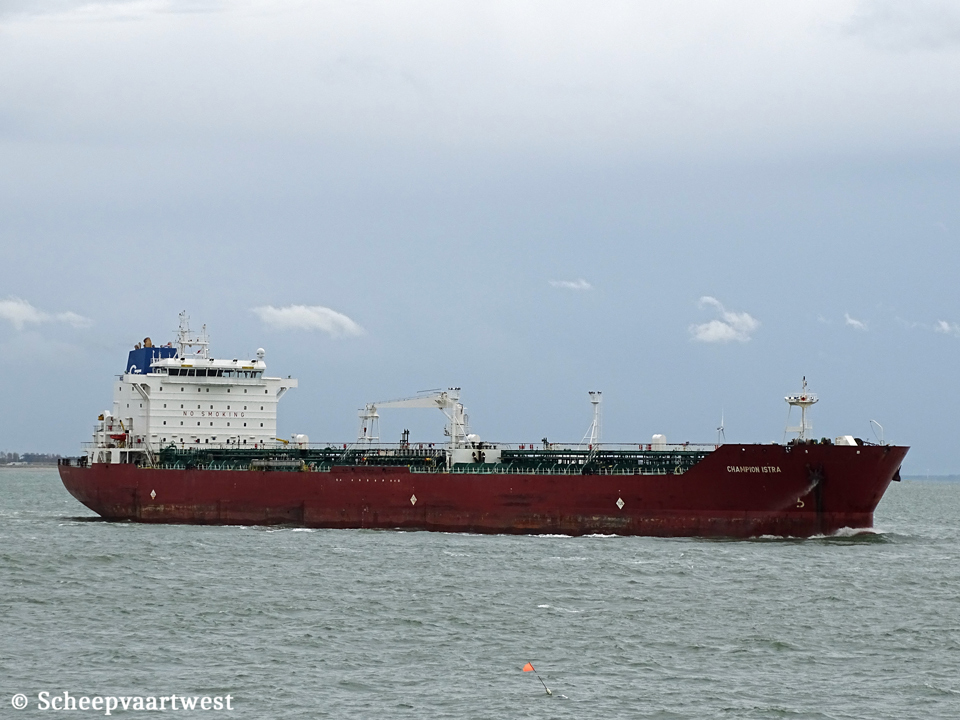

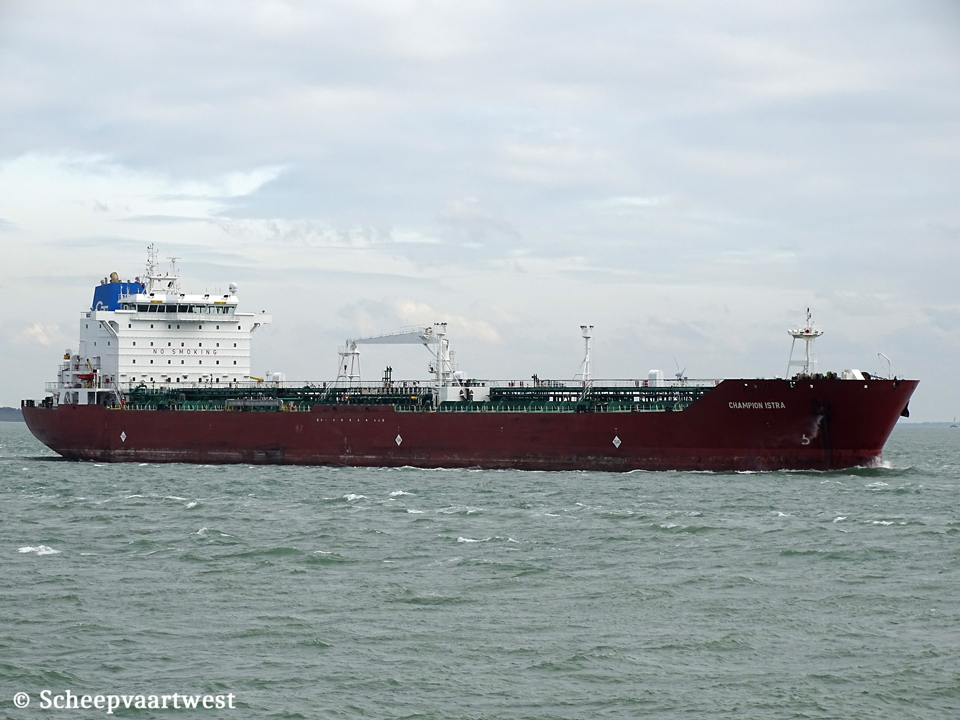

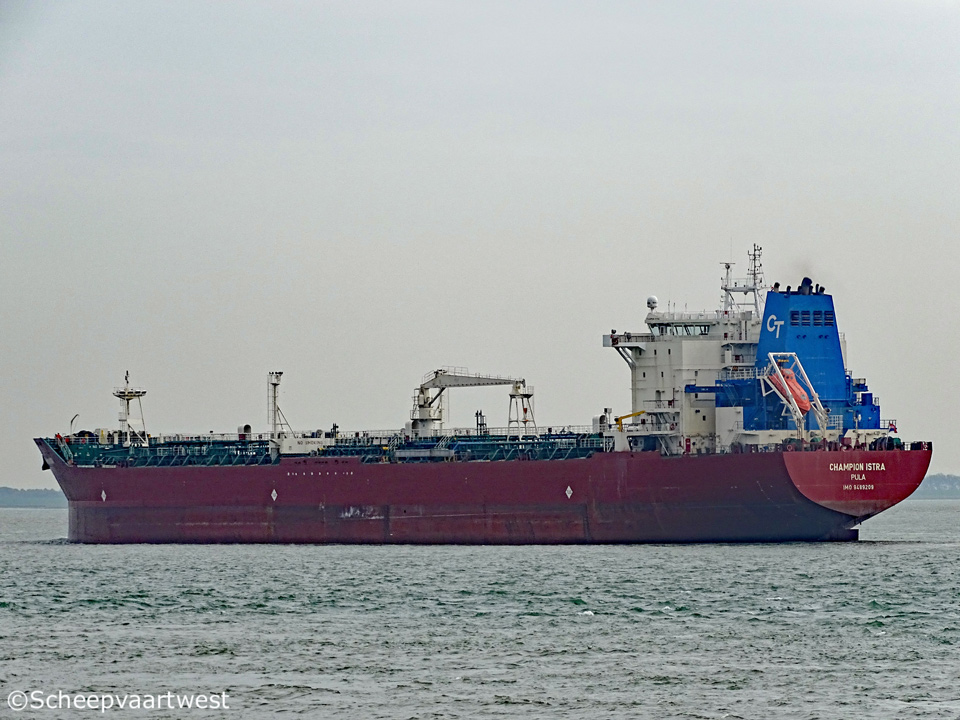

Champion Istra 02   Champion Istra IMO 9489209 03   Champion Istra IMO 9489209 04
Westerschelde 19/10/17 Westerschelde 24/09/20 Westerschelde 25/10/19


Name

CHAMPION ISTRA

Previous names

2012 - 2015 Istra

Type

Tanker for oil and chemicals

IMO-number

9489209

Call sign

LAMK8

Flag

Norway

Port of registry

Bergen

Previous flags

2012 - 2021 Croatia (Republika Hrvatska), Pula - Call sign: 9AA8148

GT

30.638 t

DWT

Summer: 51.824 t

Length

194,99 m overall

187,30 m between perpendiculars

Breadth

32,20 m

Draught

12,50 m

Freeboard

5.322 mm

Depth

17,80 m

Speed

14,5 knots

Built

2012

Keel laid

22/12/2010

Date of completion

07/08/2012

Builder

3.Maj brodogradiliste d.d.

Rijeka

Croatia

Yard number

713

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Wärtsilä 7RTA48T - 2 stroke single acting 7 cylinder 480 x 2.000 mm combustion engine 9.650 kW / 13.111 hp at 123,0 rpm

Manufacturer: 3.MAJ Motori i Dizalice d.d., Rijeka - Croatia

Propellers

1x Screw propeller solid- aft at 123 rpm

Boilers

1x CHR Saacke Marine System 355;00 m² - 9,0 bar

2x CHO Saacke Marine System 107;00 m² - 9,0 bar

Generators

3x Main diesel generatorsets each 1.490 kVA - 1.192 kW - 1.739 hp

Emergency generator

1x Diesel generatorset 160 kVA - 128 kW - 270 hp

Number of cargo tanks

12

Total capacity of tanks

52.327,16 m³

Number of slop tanks

2

Number of pumps

12x Cargo pumps each 550 m³/h

Tank capacities

Fuel: 1.591,35 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Commerical manager

Champion Tankers AS

Tveiteråsvegen 12

5232 Paradis

Norway

ISM manager

ASP Ship Management Singapore Pte Ltd.

#05-01 Gateway East

Singapore City

Republic of Singapore

Registered owner

Champion Shipping AS

Tveiteråsvegen 12

5232 Paradis

Norway

Latest data adjustment

15 August 2021
