Westerschelde 19 March 2016 |
|
Name |

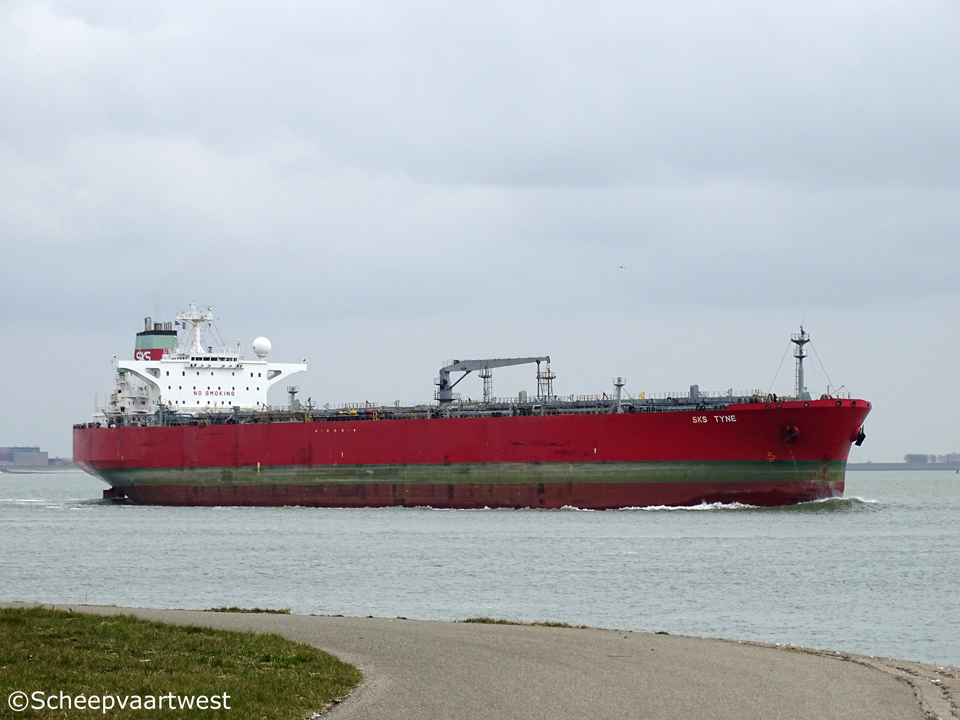

SKS TYNE |
|
Type |
Combined carrier - Ore/Bulk/Oil Carrier (OBO) Strengthened for carrying heavy cargoes |
|
IMO-number |
9116955 |
|
Call sign |
C6BA7 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
Norway, Bergen - Call sign: LAZE4 |
|
GT |
63.515 t |
|
DWT |
Summer: 109.891 t |
|
NT |
30.821 t |
|
Length |
243,80 m overall 234,00 m between perpendiculars |
|
Breadth |
42,0 m extreme |
|
Draught |
15,73 m |
|
Air draft |
48,66 m |
|
Freeboard |
7.518 |
|
Depth |
23,20 m |
|
Speed |
Max.: 15,9 knots Service: 14,5 knots |
|
Built |
1996 |
|
Keel laid |
22.11.1995 |
|
Launch date |
09.03.1996 |
|
Date of completion |
13.06.1996 |
|
Builder |
Hyundai Heavy Ind. Co. Ltd. |
|
Yard number |
954 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 |
|
Main engine |
MAN-B&W 5S70MC - 2 stroke 5 cylinder diesel engine 14.232 kW / 18.800 hp at 91,0 rpm Builder: Hyundai Heavy Industries Co. Ltd. |
|
Propellers |
1x Lips fixed pitch propeller - aft at 91,0 rpm |
|
Boilers |
1x CHF 600,00 m² - 10;0 bar |
|
Generators |
2x MAN-B&W 8L23/30 diesel generatorsets each 1.000 kVA - 800 kW - 1.087 hp |
|
Emergency generator |
1x MTU 6R-35-2 diesel generatorsets 875 kVA - 700 kW - 951 hp |
|
Number of tanks/holds |
7 |
|
Number of hatch covers |
8 1x Hatch: 13,68 x 13,16 m |
|
Dry cargo capacity |
121.684,4 m³ |
|
Segregation |
3 |
|
Max. cargo temp. |
68°C |
|
Pumps |
7x FRAMO Deepwell each 1.800 m³/h |
|
Manifolds |
Bow to centre: 120,58 m |
|
Tank capacities |
Fuel oil: 3.831,4 m³ |
|
Lifting equipment |
1x Crane - SWL 15,0 t |
|
Manager |
Tankers Fleet Management A/S Bergen |
|
Owner |
SKS OBO & tankers - part of Kristian Gerhard Jebsen Skipsrederi AS |
|
Registered owner |
Kristian Gerhard Jebsen Skiprederi AS |
|
Renamed |
2016 KSP Erol Bey (Karadeniz Powership Erol Bey) Liberia, Monrovia - Call sign: D5LN3 Owner: Karpowership Americas Co Ltd. Manager: Dryfleet Gemi Isletmeciligi A.S. |
|
Latest data adjustment |
30 November 21017 |
