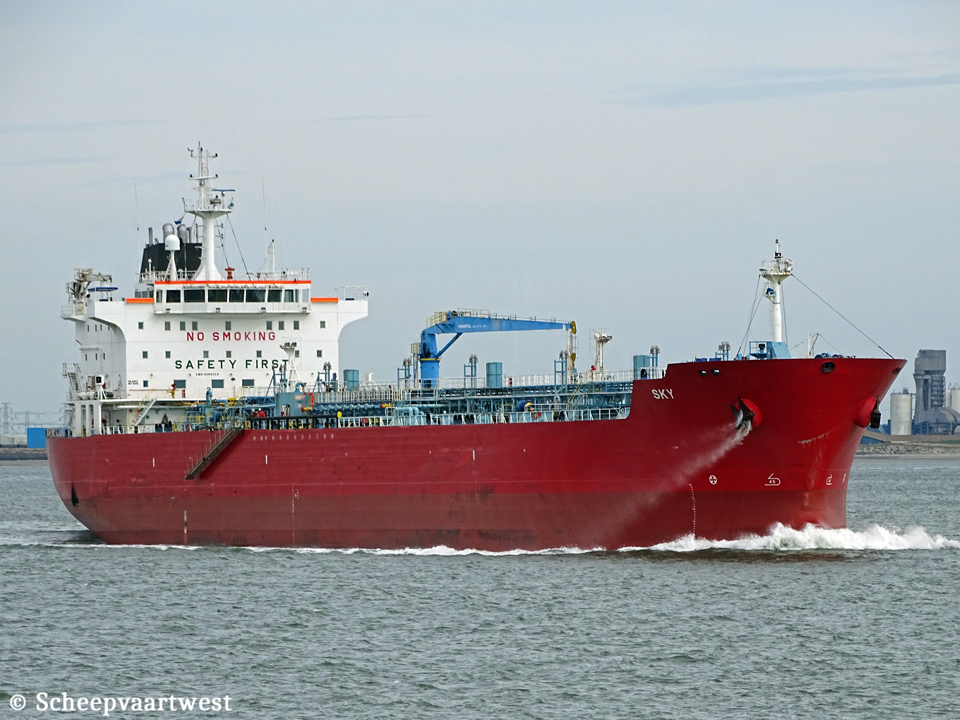

Sky IMO 9380350 04

Westerschelde 16 September 2018

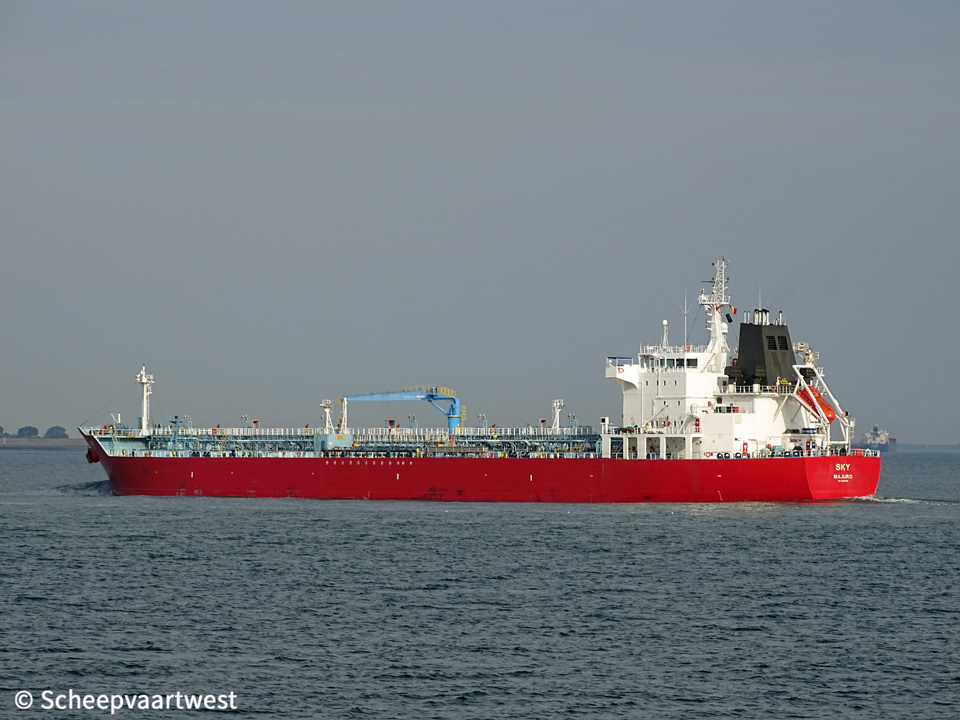

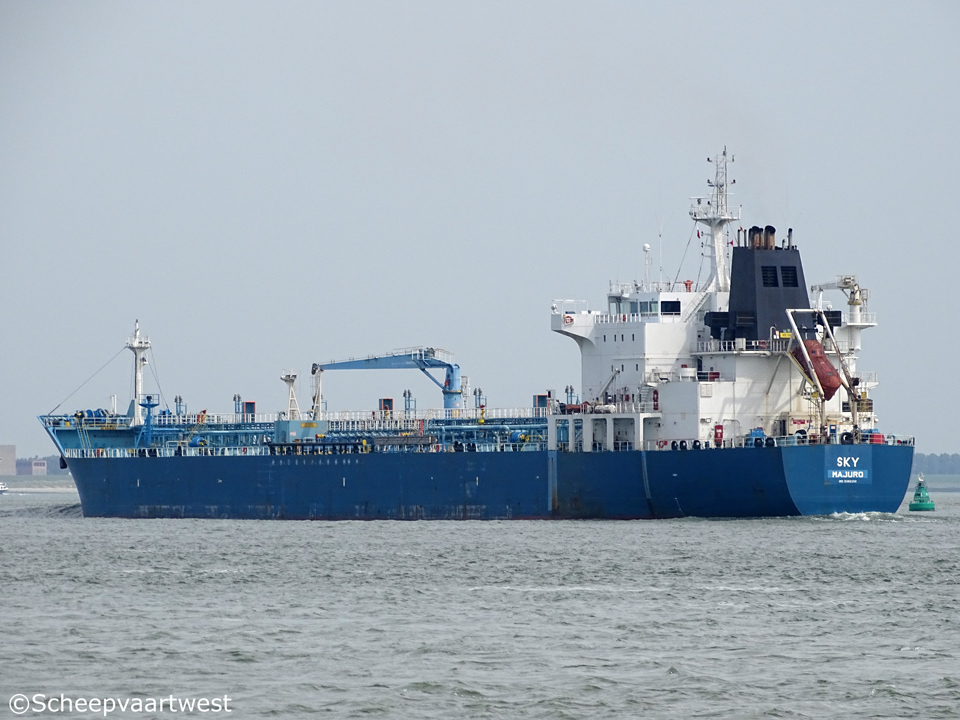

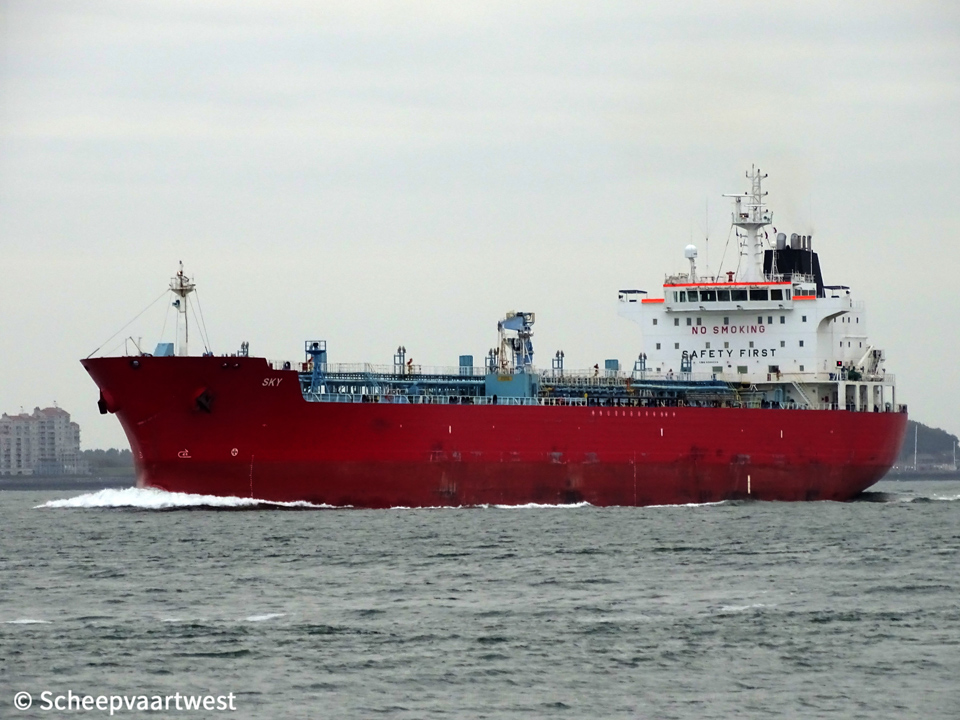

Sky 03   Sky 02   Sky 01
Westerschelde 03/10/18 Westerschelde 02/07/18 Westerschelde 26/07/17


Name

SKY

Previous names

2007 - 09/2013 Cotton

09/2007 - 09/2013 Sky

09/2013 - 09/2013 Cotton

Type

Tanker for oil and chemicals - Handysize

IMO-number

9380350

Call sign

V7IE9

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

2007 - 2017 Malta, Valletta - Call sign: 9HBD9

GT

23.248 t

Suez: 24.713,19 t

DWT

Summer: 37.879 t

NT

9.915 t

Displacement

46.547 t

Length

184,32 m overall

176,00 m between perpendiculars

Breadth

27,45 m extreme

Draught

11,52 m

Air draft

40,03 m

Freeboard

Summer: 5.680 mm

Winter: 5.950 mm

Depth

17,20 m moulded

Speed

Service: 15,7 knots

Built

2007

Keel laid

09/07/2007

Launch date

12/10/2007

Date of completion

03/12/2007

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

2029

Hull material

Steel

Hull type

Double hull

Bulkheads

10

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder combustion engine:

MCR 9.480 kW at 127 rpm

NCR 8.058 kW at 120,3 rpm

Builder: MAN Diesel & Turbo, Branch of MAN Diesel & Turbo SE - Germany

Propellers

1x Mono-block fixed pitch propeller

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Manufacturer: Kangrim Heavy Industries Co.,Ltd.

Generators

3x Yanmar 6N21AL-EV diesel generatorsets each 735 kW

Emergency generator

1x Cummins NT-855-D(M) diesel generatorset

Manufacturer: Cummins Engine CO., Inc.

Bow thruster

1x Kawasaki KT-88B3F - 900 kW

Number of cargo tanks

12

Cargo tank capacity

42.686 m³

Number of slop tanks

2

Slop tank capacity

1.053 m³

Pumps

10x Framo SD 500 deepwell cargo pumps each 500 m³/h

2x Framo SD 300 deepwell cargo pumps each 300 m³/h

2x Framo SD 150 deepwell cargo pumps each 150 m³/h

2x Ballast pumps each 750 m³/h

Tank capacities

Ballast: 17.877,9 m³

Fuel oil: 1.175 m³

Diesel oil: 182,7 m³

Lube oil: 85,68 m³

Fresh water: 272 m³

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Lifting equipment

1x Deck crane - SWL 10,0 t

1x Provision crane - SWL 2,0 t

Crew size

23

Manager

Zenith Gemi Isletmeciligi A.S.

Poligon Cad., Buyaka 2 Sitesi, No:8, C Blok, Kat 18

34771, Umraniye

Istanbul

Turkey

Operator

Zenith Gemi Isletmeciligi A.S.

Registered owner

Sky Shipping LLC

Latest data adjustment

06 October 2020
