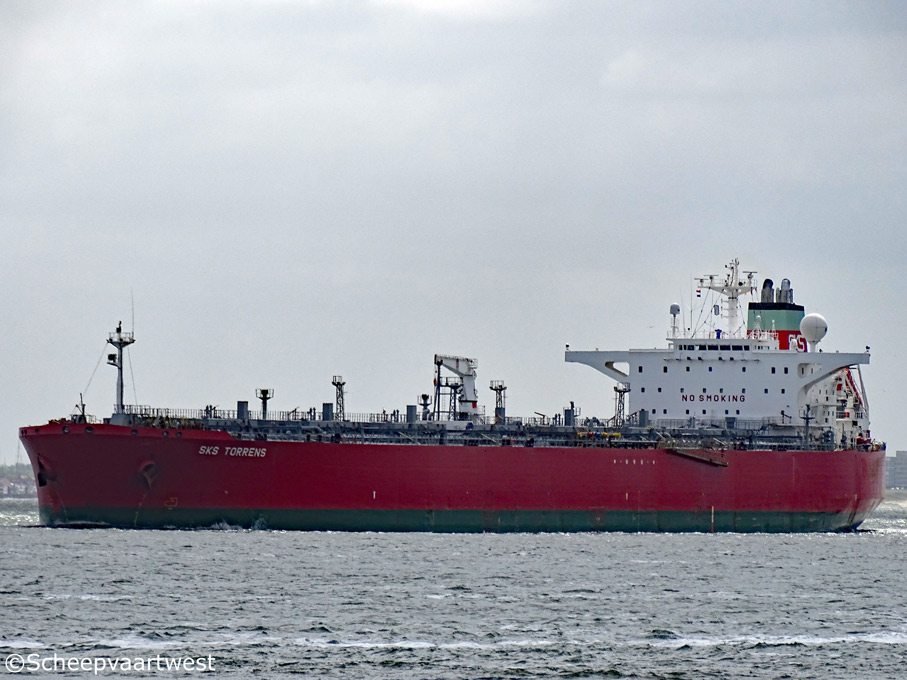

SKS Torrens 02

Westerschelde 24 May 2016

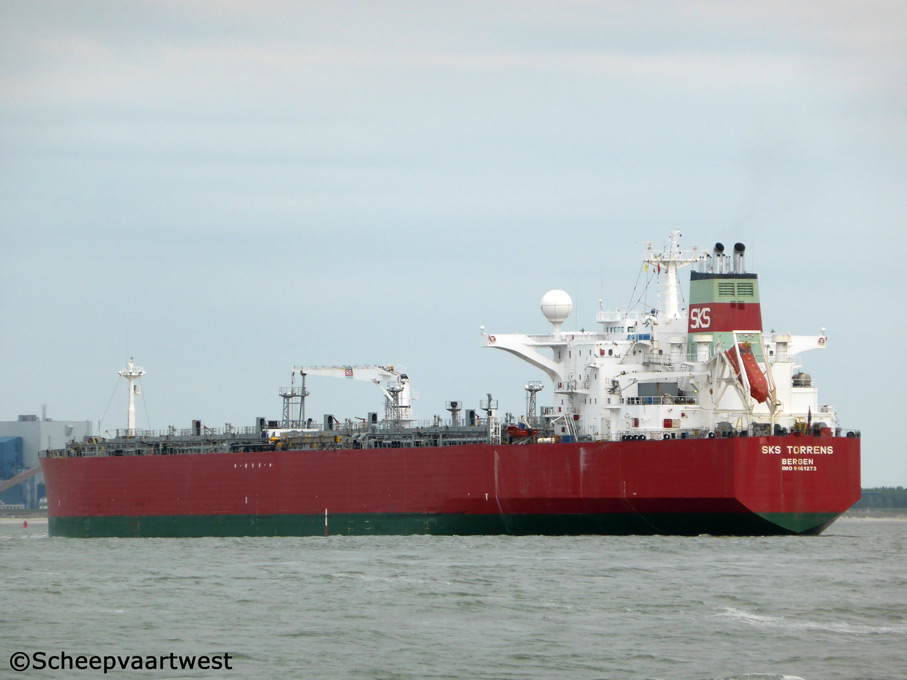

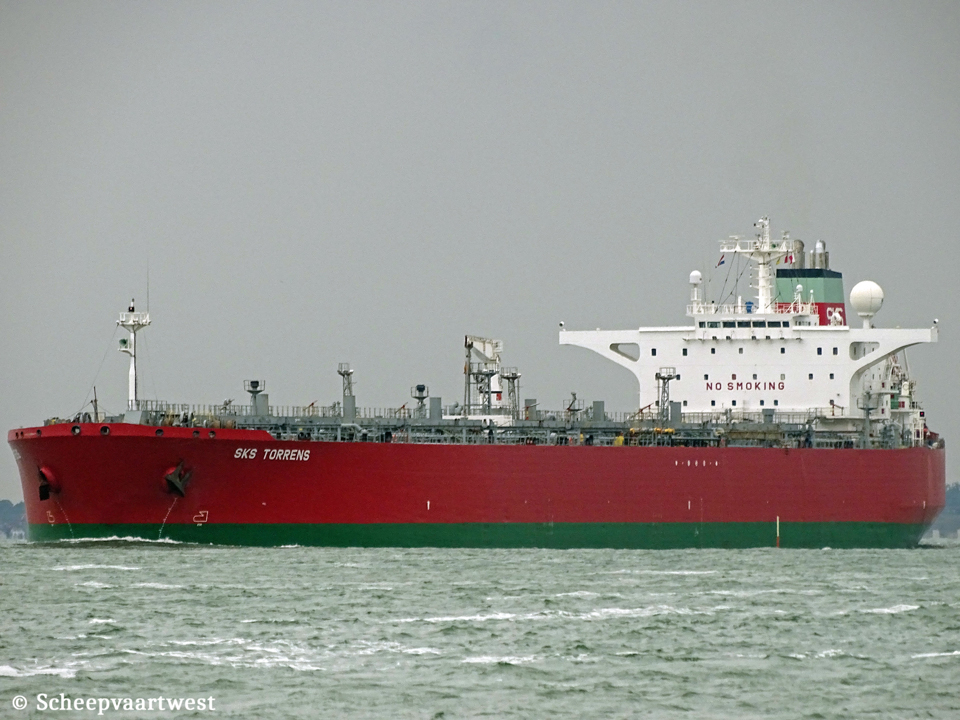

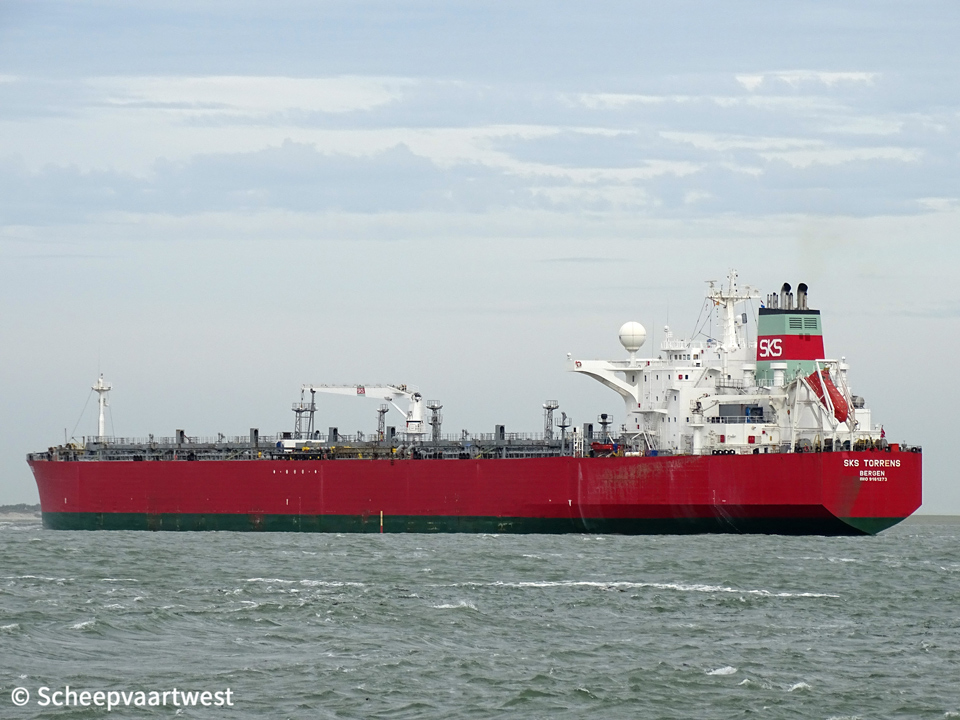

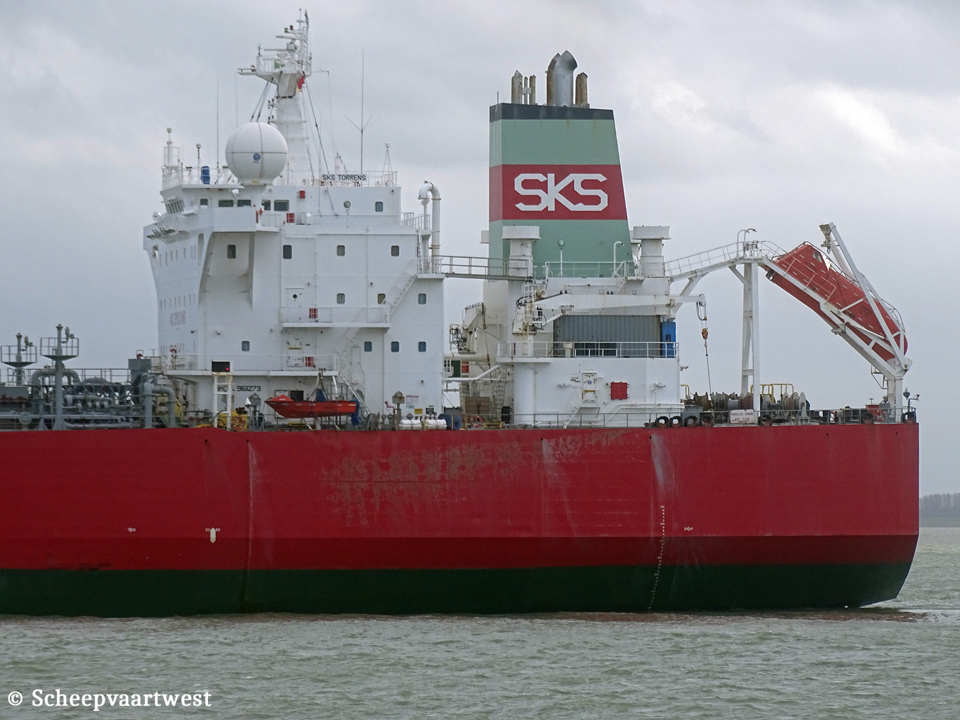

SKS Torrens 01   SKS Torrens 03   SKS Torrens IMO 9161273 05   SKS Torrens IMO 9161273 04
Westerschelde 28/04/15 Westerschelde 10/07/16   Westerschelde 10/01/16   Westerschelde 10/01/16


Name

SKS TORRENS

Type

OBO tanker - Oil tanker / bulk carrier

Oil/Ore/Bulk carrier

Strengthened for carrying heavy cargoes

IMO-number

9161273

Call sign

LAJM5

Flag

Norway

Port of registry

Bergen

GT

63.515 t

DWT

Summer: 109.846 t

NT

30.831 t

Lightweight

18.600 t

Length

243,61 m overall

234,00 m between perpendiculars

Breadth

42,03 m extreme

Draught

15,72 m

Keel - top of mast

48,66 m

Depth

23,30 m moulded

Built

1999

Keel laid

20/05/1998

Launch date

12/09/1998

Date of completion

04/01/1999

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1081

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 8

Main engine

1x MAN-B&W 5S70MC - 2 stroke 5 cylinder combustion engine 14.049 kW / 19.101 hp

Builder: Hyundai Heavy Industries Co. Ltd.

Propellers

1x Lips fixed pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Generators

1x MAN-B&W 6L23/30 diesel generatorset 700 kW - 450 Volt -50 Hz

2x MAN-B&W 8L23/30 diesel generatorsets each 900 kW - 450 Volt -50 Hz

Emergency generator

1x WTU 6R183 AA32 diesel generatorset

Number of cargo tanks

7

Number of cargo tanks

Tank 1: 13.054,1 m³

Tank 2: 17.586,8 m³

Tank 3: 18.036,6 m³

Tank 4: 18.039,6 m³

Tank 5: 18.039,6 m³

Tank 6: 17.950,3 m³

Tank 7: 16.895,4 m³

Total 100%: 119.602 m³

Number of slop tank

2

Slop tank capacity 98%

Tank 1: 718 m³

Tank 2: 718 m³

Cargo tank coating

Pure epoxy except for tank top

Number of pumps

7x Framo Deepwell cargo pumps each 1.800 m³/h

2x Framo Deepwell slop tank pumps each 600 m³/h

Number of holds/tanks

7

Dry cargo capacity

122.043 m³

Manifolds

Distance between manifold centres: 2,50 m

Centre manifold - bow: 120,58 m

Centre manifold - stern: 123,00 m

Number of hatch covers

7

1x Hatch: 13,68 x 13,16 m

6x Hatches: 15,39 x 18,09m

Tank capacities

Ballast: 48.925,3 m³

Diesel oil: 229 t

Heavy fuel: 3.529 t

Lifting equipment

1x Hose crane - SWL 15,0 t on centreline

Technical manager

KGJ OBO & Tankers Fleet Management AS

Bergen

Norway

Previous managers

1999 - 2008 V.Ships Norway AS

2008 - 2010 Kristian Gerhard Jebsen Skipsrederi AS

Owner

SKS Obo and Tankers AS

Disponent owner

SKS OBO Limited

14 Par la Ville Road

Hamilton

Bermuda

Previous owners

1999 - 2004 SKS OBO Shipping Limited

2004 - 2009 SKS OBO Holding Ltd.

Scrapped

11/10/2018 Beached at Alang - India

Latest data adjustment

07 November 2018
