Westerschelde 15 October 2016 |
 |
|
| Westerschelde 23/0417 | |
|
Name |

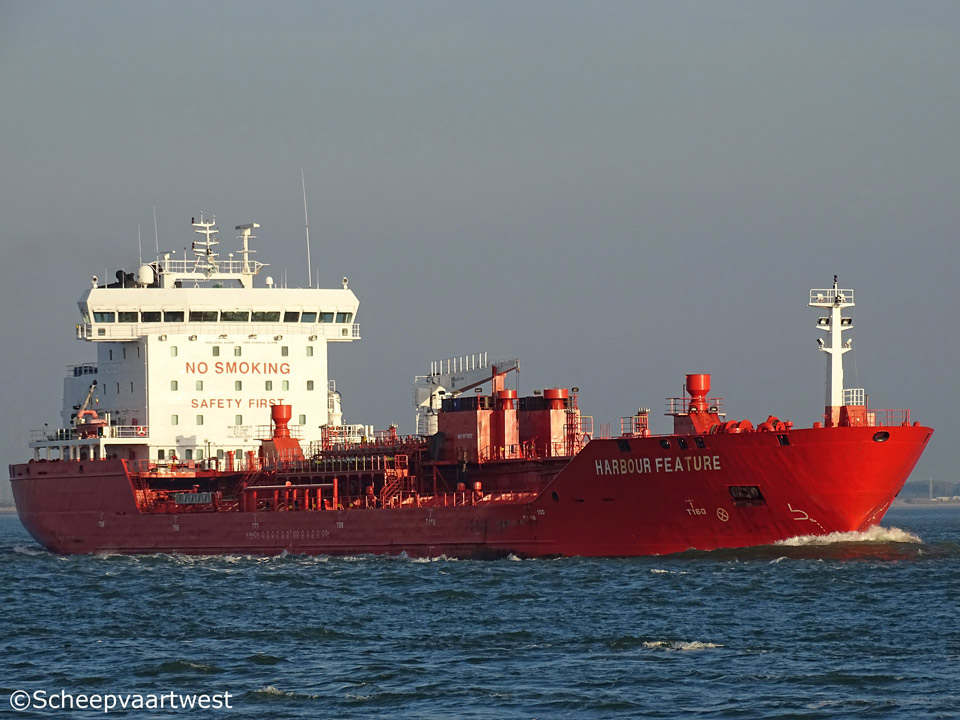

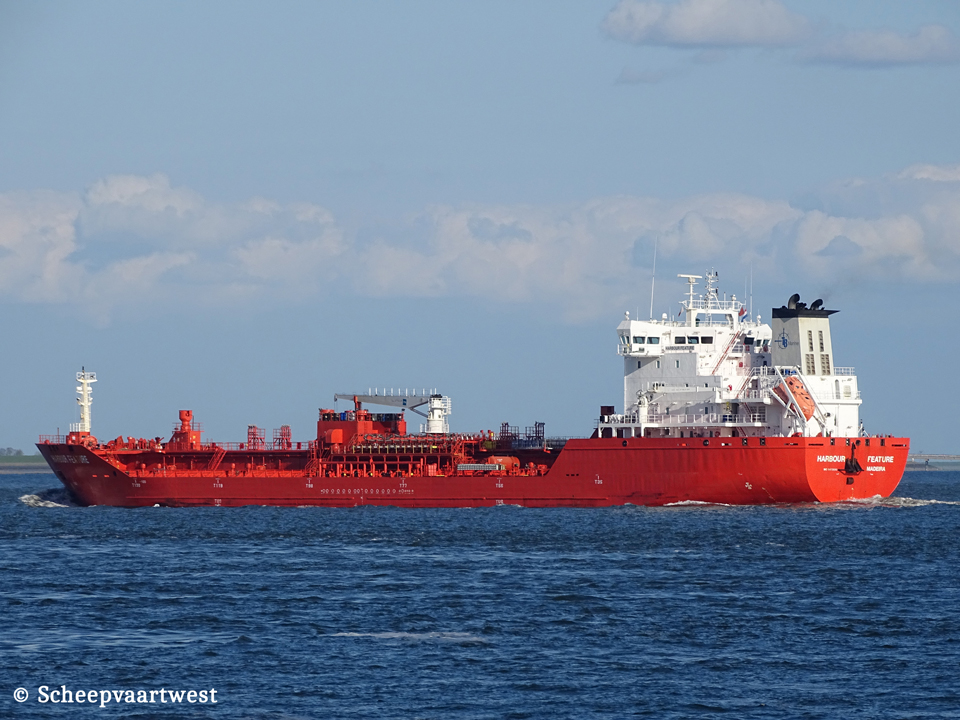

HARBOUR FEATURE |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9473092 |
|
Call sign |
CQNX |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
11.880 t registered Suez: 12.438,32 t |
|
DWT |
Summer: 16.909 t |
|
NT |
5.272 t Panama: 9.992 t Suez: 10.382,88 t |
|
Length |
144,22 m overall 134,00 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
9,00 m |
|
Keel to mast end |
40,38 m |
|
Freeboard |
3.412 mm |
|
Depth |
12,40 m moulded |
|
Speed |
13,5 knots |
|
Built |
2011 |
|
Keel laid |
26/11/2008 |
|
Launch date |
17/09/2009 |
|
Delivery date |
24/01/2011 |
|
Builder |
Yangfan Group Co., Ltd. 169 Lujiazhi Road Shenjiamen Putuo Zhoushan China |
|
Yard number |
2078 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 11 |
|
Main engine |
1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.565 hp at 500 rpm Manufacturer: Caterpillar Motoren GMBH - Germany |
|
Propellers |
1x Controllable pitch propeller Manufacturer: Rolls-Royce AB |
|
Boilers |
1x Auxiliary oil fired boiler - 7,0 bar 1x Composite boiler - 7,0 bar Manufacturer: Saacke |
|
Shaft generator |
1x 1.875 kW Manufacturer: AEM Dessau GmbH - Germany |
|
Generators |
1x Diesel generatorset 640 kW 2x Diesel generatorsets each 1.250 kW Manufacturer: Zhejiang China Marine Xiandai Generating Co. |
|
Number of cargo tanks |
15 |
|
Segregations |
10 |
|
Cargo oil capacity |
19.526 m³ (100%) 19.136,4 (98%) |
|
Tank coating |
Marineline |
|
Number of tanks |
Ballast: 14 Fuel oil: 10 Lubricating oil: 9 Fresh water: 5 Diesel oil: 4 Waste water: 2 Chain: 2 |
|
Tank capacities 100% |
Diesel Oil: 81,6 m³ Freshwater: 439,3 m³ Fuel oil: 685,10 m³ Lube Oil: 92,6 m³ Tank Ballast: 8.089,1 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Lifting equipment |
1x Engine room overhead crane - SWL 1,6 t Manufacture: Van Leusden 1x Hose handling crane - SWL 10,0 t Manufacture: TTS Bohai Machinery Dalian Co., Ltd. 1x Provision crane - SWL 3,0 t Manufacture: Dongnam Marine Crane Co., Ltd. |
|
Commercial manager |
Icechem Tankers Ltd. Flat 101, 1st Floor, El Greco, 58-60, Agiou Athanasiou Avenue, Agios Athanasios 4102 Limassol Cyprus |
|
ISM manager |
TB Marine Shipmanagement GmbH & Co. KG Paul-Dessau-Strasse 6 D-22761 Hamburg Germany |
|
Registered owner |
Sechste Nordtank-Hamburg GmbH & Co. KG - Germany Care of IceChem Tankers Ltd. Flat 101, 1st Floor, El Greco, 58-60, Agiou Athanasiou Avenue, Agios Athanasios 4102 Limassol Cyprus |
|
Latest data adjustment |
03 February 2023 |
