| Westerschelde 16 February 2016 |
|
Name |

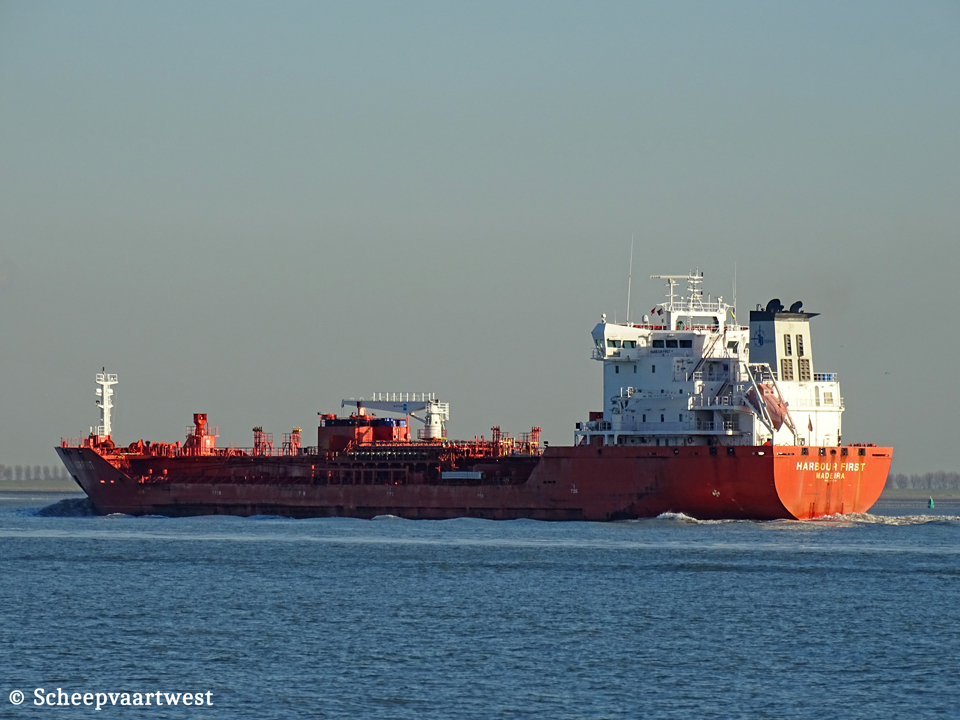

HARBOUR FIRST |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9473119 |
|
Call sign |
CQKM |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
11.971 t Suez: 12.456,62 t |
|
DWT |
16.984 t |
|
NT |
5.272 t Suez: 10.401,18 t Panama: 10.106 t |
|
Displacement |
22.883 t |
|
Length |
144,06 m overall 134,00 m between perpendiculars |
|
Breadth |
23,00 m moulded 23,58 m extreme |
|
Draught |
Summer: 9,00 m |
|
Freeboard |
3.412 mm |
|
Depth |
12,40 m moulded |
|
Speed |
Max: 14,9 knots |
|
Built |
2011 |
|
Keel laid |
30/12/2009 |
|
Launch date |
30/11/2010 |
|
Delivery date |
24/06/2011 |
|
Builder |
Yangfan Group Co., Ltd. Zhoushan Shipyard 169 Lujiazhi Road Shenjiamen Putuo ZHoushan China |
|
Yard number |
2080 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water Tight: 4 Oil Tight: 11 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 7M43C - 4 stroke sin gle acting 7 cylinder 430 x 610 mm combustion engine Mcr 6.300 kW / 8.568 bhp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary composite boiler - 9,0 bar 1x Auxiliary oil fired boiler- 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Shaft generator |
1x 1.875 kW |
|
Generators |
1x MAN 5L23/30H - 4 Stroke 5 cylinder 225 x 300 mm diesel engine Mcr 680 kW connected with generator 630 kW 2x MAN 7L23/30H - 4 Stroke 7 cylinder 225 x 300 mm diesel engnes each Mcr: 1.120 kW connected with genertaorts each 1.000 kW Manufacturer: Henjiang China Marine-Xiandai Generating Co., Ltd. |
|
Bow thruster |
1x 787kW / 1,070 bhp, forward |
|
Number of tanks |
14 |
|
Cargo tank capacity |
100%: 19.507,8 m³ 98%: 19.116,7 m³ |
|
Tank capacities |
Diesel Oil: 81,6 m³ Freshwater: 439,3 m³ Fuel Oil: 655,7 m³ Hydraulic Oil: 3,3 m³ Lube Oil: 67,3 m³ Tank Ballast: 8089,1 m³ |
|
Lifting equipment |
1x Handling crane - SWL 10,0 t Manufacturer: TTS Bohai Machinery Dalian Co., Ltd. 1x Provision crane - SWL 3,0 t Manufacturer: Dongnam Marine Crane Co. |
|
Crew |
19 |
|
ISM manager |
TB Marine Shipmanagement GmbH & Co., KG Paul-Dessau-Straße 6 22761 Hamburg Germany |
|
Registered owner |
Achte Nordtank Hamburg GmbH Paul-Dessau-Straße 6 Hamburg Germany |
|
Latest data adjustment |
12 May 2023 |
