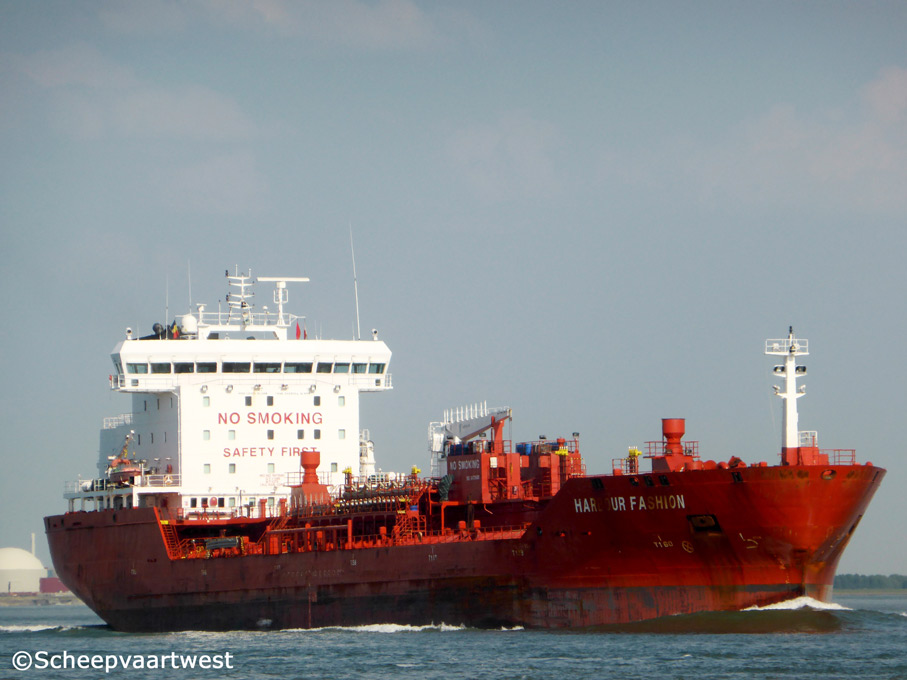

Harbour Fashion 01

Westerschelde 15 May 2014

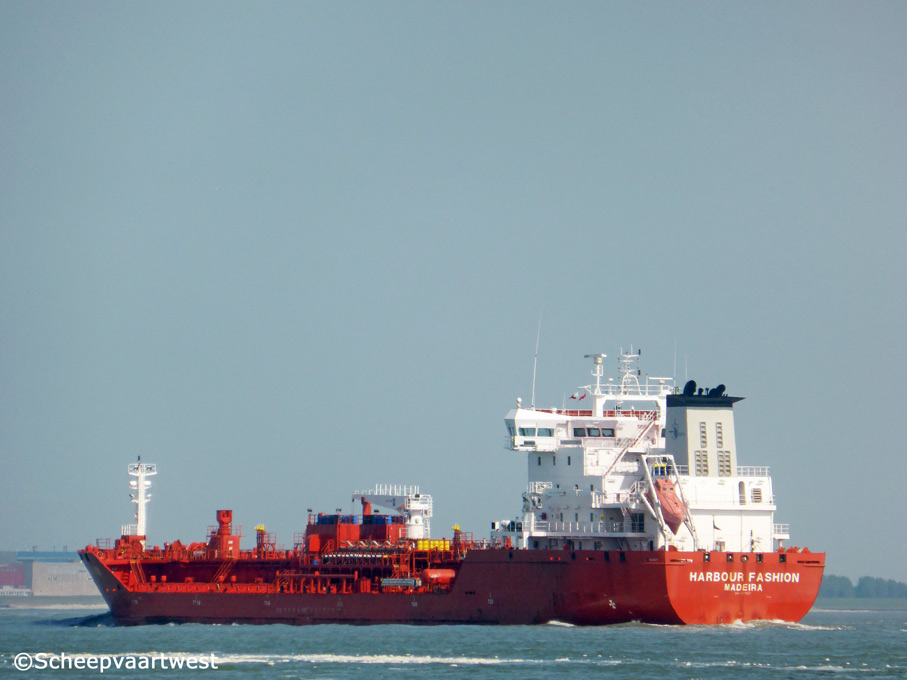

Harbour Fashion 02
Westerschelde 17/05/14


Name

HARBOUR FASHION

Type

Oil Tanker / Chemical tanker

IMO-number

9473080

Call sign

CQNM

Flag

Portugal

Port of registry

Madeira

GT

11.880 t registered

Suez: 12.438,32 t

DWT

16.878 t

NT

5.272 t registered

Panama: 9.992 t

Suez: 10.382,88

Length

144,06 m overall

134,00 m between perpendiculars

Breadth

23,00 m moulded

Draught

9,00 m

Freeboard

3.412 mm

Depth

12,40 m moulded

Built

2011

Keel laid

05.10.2008

Launch date

25.04.2009

Date of completion

05.01.2011

Builder

Zhoushan Shipyard (Yangfan Group Co., Ltd.)

Zhoushan
China

Yard number

2077

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 4

Oil tight: 11

Main engine

1x Caterpillar MaK 7M43C - 7 cylinder diesel engine - 6.300 kW at 500 rpm

Manufacturer: Caterpillar Motoren GMBH& Co. KG

Propellers

1x Controllable pitch propeller

Manufacturer: Rolls Royce AB, Kristinehamn - Sweden

Boilers

Auxiliary oil fired boiler - 9,0 bar

Composite boiler - 9,0 bar

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

1x HFC6 504-14K diesel generatorset 630 kW

2x HFC6 564-84K diesel generatorsets each 1.000 kW

Manufacturer: Zhenjiang China Marine-Xiandai Generating CO., Ltd.

Number of cargo tanks

15

Cargo tank capacity 98%

19.124,68 m³

Segregations

11

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 7

Diesel oil: 4

Fresh water: 4

Chain: 2

Waste water: 2

Hydraulic oil: 1

Potable water: 1

Sludge: 1

Tank capacities

Diesel oil: 81,6 m³ / 69,36 t

Freshwater: 439,3 m³

Fuel oil: 655,7 m³ / 642,58 t

Hydraulic oil: 3,3 m³ / 2,97 t

Lube oil: 69,5 m³ / 62,55 t

Tank ballast: 8.089,1 m³ / 8.291,32 t

Lifting equipment

1x Overhead crane Atlas HD3C

Manufacturer: Van Leusden

1x Hose handling crane - SWL 10,0 t

Manufacturer: TTS Bohai Machinery Dalian Co., Ltd.

1x Provision crane - SWL 3,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Manager

TB Marine Shipmanagement

Paul-Dessau-Strasse 6

Hamburg
Germany

Owner

Nordic Tankers Marine

Copenhagen
Denmark

Registered owner

Fuenfte Nordtank-Hamburg GmbH & Co., KG

Germany

Latest data adjustment

05 June 2014
