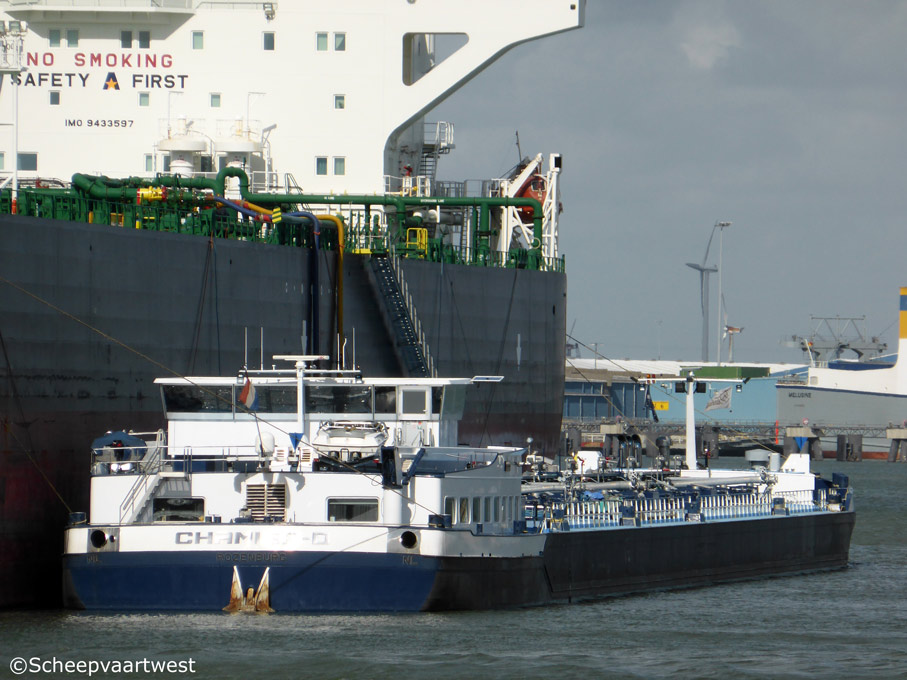

Chamisa D 01

Vlissingen 14 April 2014



Name

CHAMISA-D

Type

Inland tanker

ENI-number

02331909

Call sign

PH9748

Flag

The Netherlands

Port of registry

Rozenburg

Tonnage

6.981 t

Length

135,00 m

Breadth

15,10 m

Draught

4,60 m

Depth

6,00 m

Built

2009

Builder casco

Breko Marine Ltd.
Eregli

Turkey

Builder completion

Breko Scheepsbouw & Reparatie B.V.
Papendrecht
The Netherlands

Hull material

Steel

Main engine

2x MTU 12 V 4000 M60 - 12 cylinder diesel engines each 1.320 kW / 1.793 hp at 1.800 rpm

Gearbox

2x Reintjes WAF 665 - reduction: 5,571:1

Generators

1x Cummins QSK 19 M diesel engine coupled with Marathon 573 RSL 4034 generator 660 kVA

1x Cummins QSX 15 C diesel engine coupled with Marathon 572 PSL 4030 generator 450 kVA

2x Cummins QSB 5 G3diesel engine coupled withMarathon 363 CSL 1607 generator each 107 kVA

Bow thruster

1x Cummins 500 hp - Omega-Jet 31130 - S 1400 - 393 kW at 1.780 rpm

1x Cummins 500 hp - Omega-Jet 31130 - S 1400 - 350 kW at 1.780 rpm

Pumps

5x Bornemann type HC 232-56/1 cargo pumps electric motor driven 185 kW capacity 325 m³/h each

2x Bornemann type W3.1zk-30/1 slop pumps electric motor driven 7,5 kW capacity 10 m³/h each

Cargo tank capacity

7.264 m³

Owner

Chamisa-D Tankvaart BV
Werner & Chantal Van Damme Middelkoop
Rozenburg
The Netherlands

Latest data adjustment

08 June 2016
