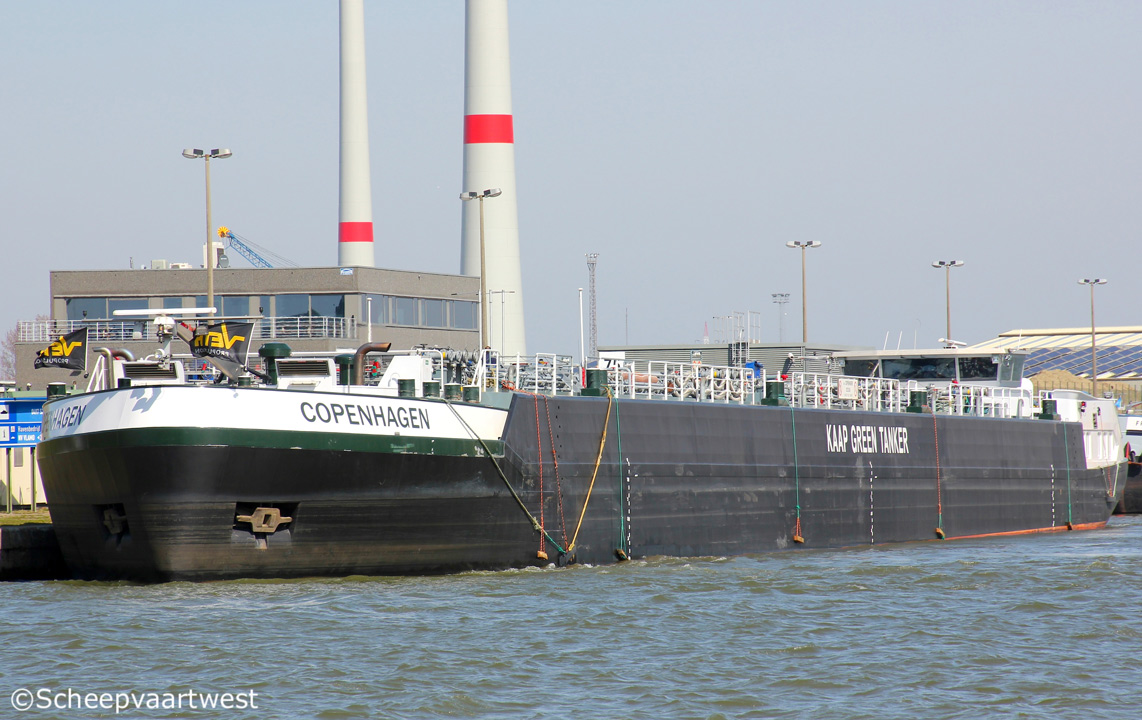

Merksem, Belgium 27 August 2014 |
 |
 |
 |
||

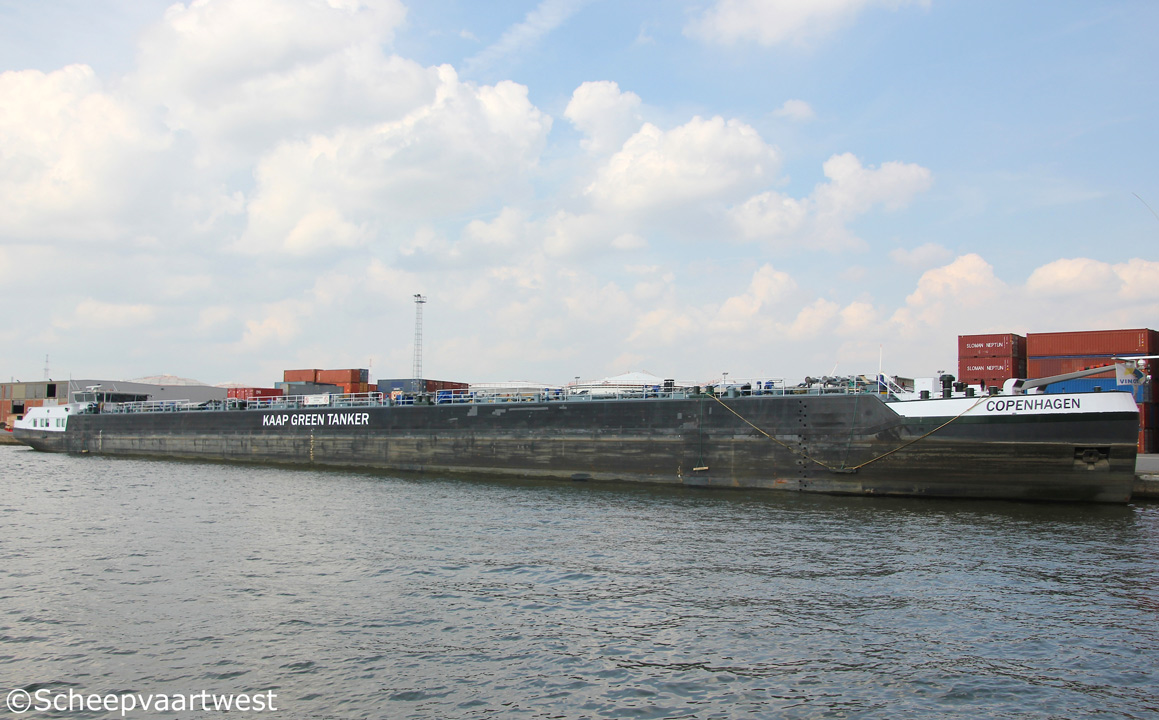

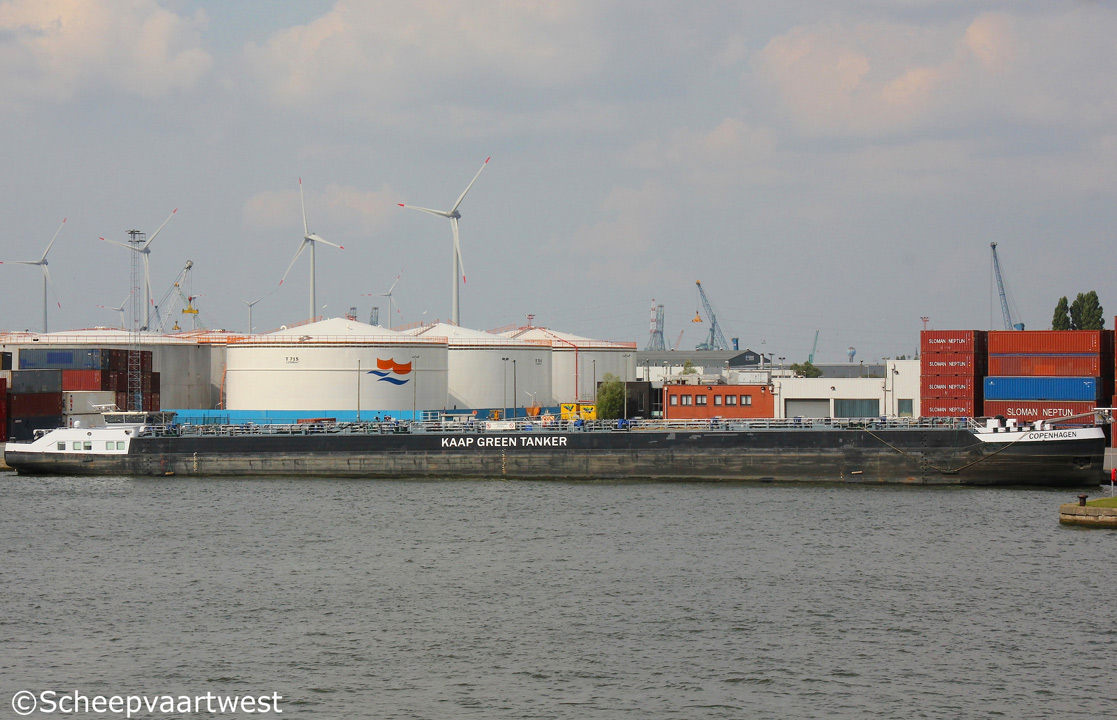

| Antwerpen 03/09/17 | Antwerpen 03/09/17 | Antwerpen 06/04/18 | ||
|
Name |
COPENHAGEN |
|
Previous names |
CT Copenhagen |
|
Type |
Inland tanker |
|
ENI-number |
02333268 |
|
Classification |
Bureau Veritas |
|
Call sign |
PF6172 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.281 t |
|
Tonnage |
3.231 t |
|
Displacement |
4.129 t |
|
Lightweight |
943 t |
|
Length |
110,00 m overall 109,80 m between perpendiculars |
|
Breadth |
11,45 m |
|
Draught |
3,65 m |
|
Depth |
5,80 m |
|
Built |
2011 |
|
Air draft |
4,50 m in ballast |
|
Date of completion |
29.07.2011 |
|
Delivery date |
11.2011 |
|
Builder |
Scheepswerf De Kaap B.V. |
|
Yard number |
251 |
|
Hull material |
Steel |
|
Hull type |
Double skin Width of double skin: Side: 2,00 m Bottom: 1,50 m |
|
Watertight compartments |
16 |
|
Continuous decks |
1 |
|
Main engine |
4x Caterpillar C18 Acert electronic - 6 cylinders 145 x 183 mm diesel engines each 465 kW / 624 hp at 1.800 rpm couples with 4 Leroy Somer main generators each 575 kVA |
|
Propelling type |
Diesel-electric |
|
Rudder propeller |
2x ZF AT 5013 WM-FP type L-Drive unit - reduction: 3.938:1 Manufacturer: ZF Marine Krimpen |
|
Electric motor |
Per rudder propeller: 2x Leroy Somer output 600 kW at 1.500 rpm each |
|
Generators |
1x Caterpillar type C4.4 DI-TA diesel generatorset 86 kVA - 69 kW - 102 hp at 1.500 rpm |
|
Electric installation |
Propulsion system: 500 Volt / 50 Hz Power current: 400 Volt / 50 Hz Board current: 230 Volt / 50 Hz |
|
Bow thruster |
1x Caterpillar/Van Wijk SD 1200 A - 500 kW / 608 hp at 1.800 rpm |
|
Number of tanks |
10 |
|
Cargo tank capacity |
3.800 m³ |
|
Slop tank |
30 m³ |
|
Pumps |
10 MarFlex type MDPD-80 each 100 m³/h |
|
Tank capacities |
Fuel oil: 42,8 m³ Fresh water: 17,5 m³ Water ballast: 1.702,6 m³ Sewage water: 12,8 m³ Dirty oil: 1,2 m³ |
|
Anchor equipment |
1x Car crane - SWL 2.000 kg |
|
Crew |
4 |
|
Complement |
7 |
|
Owner |
GMS Copenhagen BV |
|
Latest data adjustment |
10 October 2017 |
