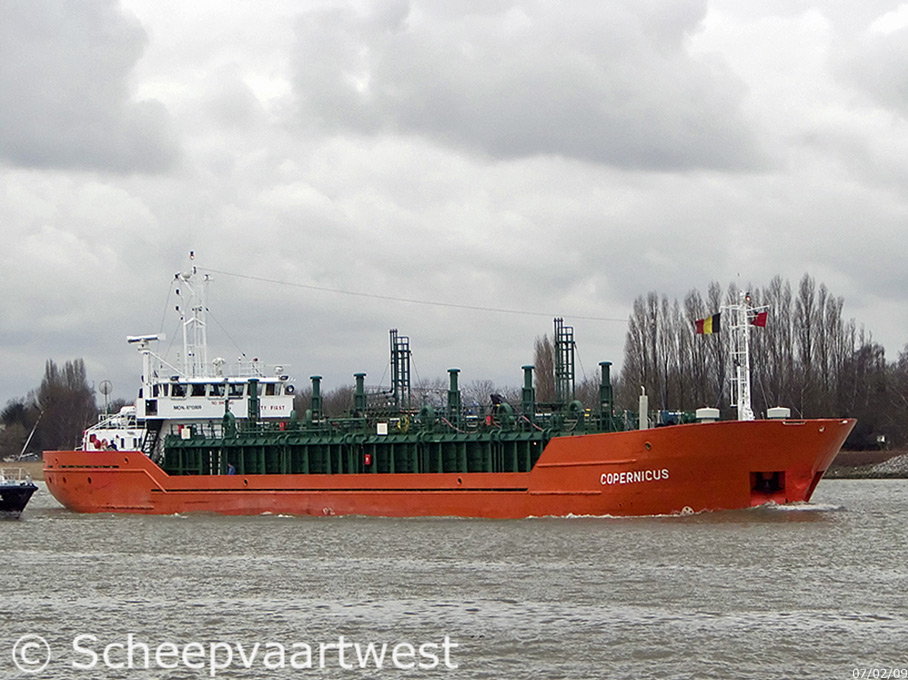

| Antwerpen 07 February 2009 |
 |
 |
|

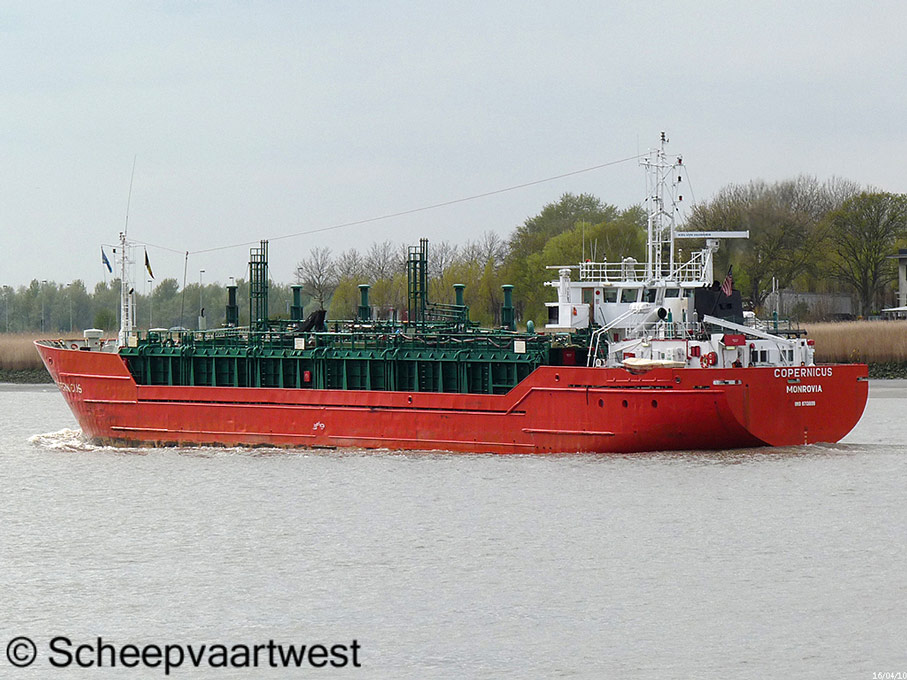

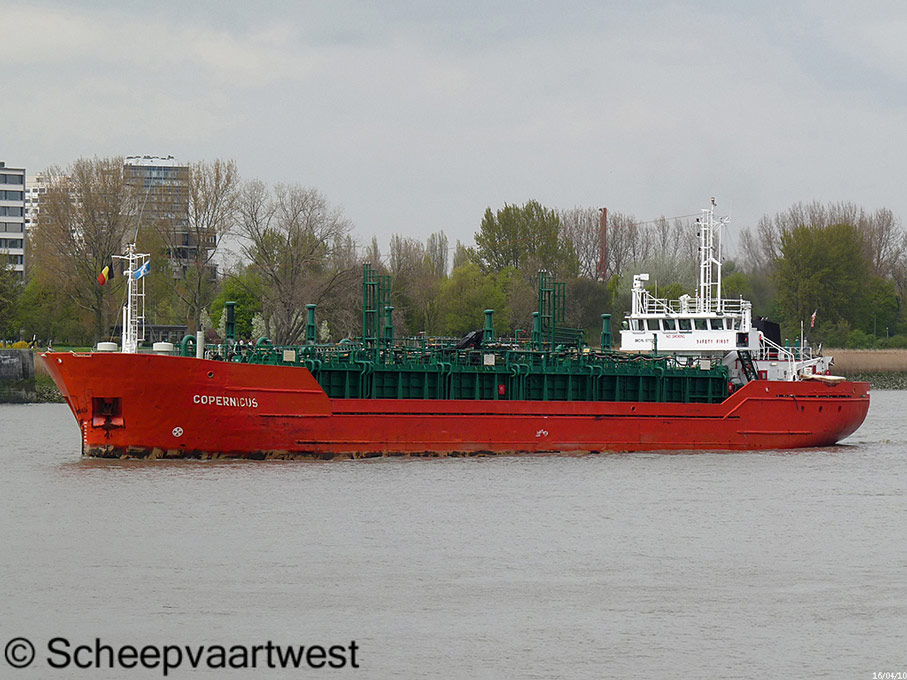

| Antwerpen 16/04/10 | Antwerpen 16/04/10 | |
|
Name |
COPERNICUS |
|
Previous names |
1978 - 2000 Arklow Manor 2001 Copernicus |
|
Type |
Chemical tanker |
|
IMO-number |
8713809 |
|
Call sign |
ELYM8 |
|
Flag |
Liberia |
|
Previous flag |
2001 Ireland |
|
Port of registry |
Monrovia |
|
GT |
1.525 t |
|
DWT |
2.181 t |
|
NT |
458 t |
|
Number of 20ft containers |
31 |
|
Length |
73,85 m overall 70,21 m between perpendiculars 70,38 m registered |
|
Breadth |
11,50 m moulded |
|
Draught |
Summer: 4,373 m |
|
Forecastle |
11,60 m |
|
Poop |
14,40 m |
|
Freeboard |
1.035 mm |
|
Depth |
5,40 m moulded |
|
Speed |
10,0 knots |
|
Built |
1987 built as a general cargo ship |
|
Keel laid |
05/11/1987 |
|
Launch date |
21/11/1987 |
|
Date of completion |
12/1987 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH / Wewelsfleth 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
634 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (E.G. Interrupted in way of machinery space) |
|
Watertight bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 6M332 - 4 stroke single acting 6 cylinder 240 x 330 mm combustion engine 749 kW Built: 1987 Builder: Krupp MAK Maschinenbau Kiel - Germany |
|
Number of screws |
1x Solid propeller - aft |
|
Boiler |
1x Steam boiler, oil fired - 10,0 bar Heating Surface: 20,0 m² Year of Manufacture: 2000 Manufacturer: Clayton of Belgium N.V. |
|
Electric installations |
1x 400/220 V |
|
Generators |
3x Diesel generatorsets each 54 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Snijder Hasselt - 184 kW forward |
|
Cargo capacity |
Bale: 2.853 m³ Grain: 2.888 m³ |
|
Tank capacities |
Bunker: 1.100 m³ Bunker: 78 t |
|
Cargo tanks |
6 |
|
Largest cargo tank |
205 m³ |
|
Anchor equipment |
3x Anchors weight each 1.290 kg Chain length: 385,00 m |
|
Manager |
Seatrans Wernersholmvei 5, Hop 5232 Bergen Norway |
|
Owner |
G Trans Shipping Ltd. c/o Erria A/S Amager Strandvej 390, 2nd Floor 2770 Kastrup Kingdom of Denmark |
|
Owner as completed |
Arklow Sg (Overseas) Ltd. |
|
Remarks |
Ship converted 05/2001 to chemical tanker |
|
Special annotations |
Wheelhouse hydraulic lowering |
|
Scrapped |
10/2020 Grenaa Scrapyard - Denmark |
|
Latest data adjustment |
28 January 2021 |
