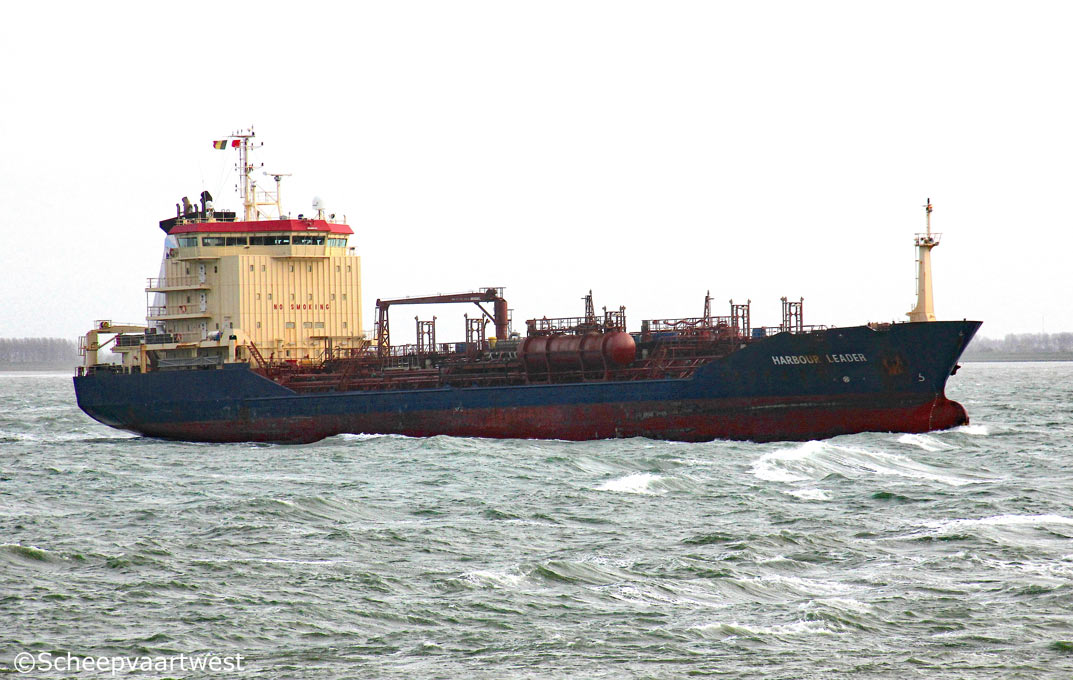

Harbour Leader 01

Westerschelde 09 November 2015



Name

HARBOUR LEADER

Previous names

2004 Built as: Clipper Leader

02.2004 - 07.2006 Panam Trinity

07.2006 - 11.2011 Clipper Leader

Type

Chemical and oil tanker

IMO-number

9286451

Call sign

C6TK4

Flag

Bahamas

Port of registry

Nassau

GT

6.522 t registered

Panama: 22.637 t

Suez: 4.040 t

DWT

Summer: 10.126,50 t

NT

3.220 t registered

Panama: 5.515 t

Suez: 2.959 t

Length

118,37 m overall

112,00 m between perpendiculars

Breadth

19,00 m moulded

Draught

8,22 m

Freeboard

1.891 mm

Depth

10,10 m moulded

Speed

13,7 knots

Built

2004

Keel laid

29.04.2003

Launch date

28.09.2003

Delivery date

16.02.2004

Builder

Yardimci Gemi Insa A.S.

Tuzla
Turkey

Yard number

031

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 21

Oil tight: 9

Main engine

1x MAN B&W 6S35MC - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine 4.454 kW at 173,0 rpm

Manufacturer: MAN B&W Alpha Diesel A/S

Propellers

1x Controllable pitch propeller - Diameter: 3.950 mm

Manufacturer: Johnsson Metall AB, Frederikshavn - Sweden

Boilers

1x Fired exhaust gas boiler

Shaft generator

1x AVK DSG 62 L1-4 - 500 kW

Generators

3x AVK DSG 62 L1-4 main diesel generatorsets each 500 kW

Emergency generator

1x Diesel generatorset 150 kW

Bow thruster

1x 449 kW

Number of cargo tanks

12

Cargo oil capacity 98%

11.089,73 m³

Segregations

14

Number of tanks

Ballast: 14

Lubricating oil: 11

Fuel oil: 9

Fresh water: 4

Waste water: 4

Diesel oil: 4

Sludge: 2

Chemical: 2

Thermal oil: 2

Slop: 2

Chain: 1

Tank capacities 100%

Diesel Oil: 165,03 m³ / 140,27 t

Freshwater: 376,21 m³

Fuel Oil: 637,12 m³ / 624,37 t

Lube Oil: 46,45 m³ / 41,80 t

Tank Ballast: 3.831,83 m³ / 3.927,62 t

Accommodation

14x Single berth

1x double berth cabins with separate private facilities are provided

Manager

Nordic Tankers Trading A/S
Tuborg Havnevej 15
2900 Hellerup
Denmark

Registered owner

Leader Navigation Co., Ltd.
Copenhagen
Denmark

Latest data adjustment

30 January 2016
