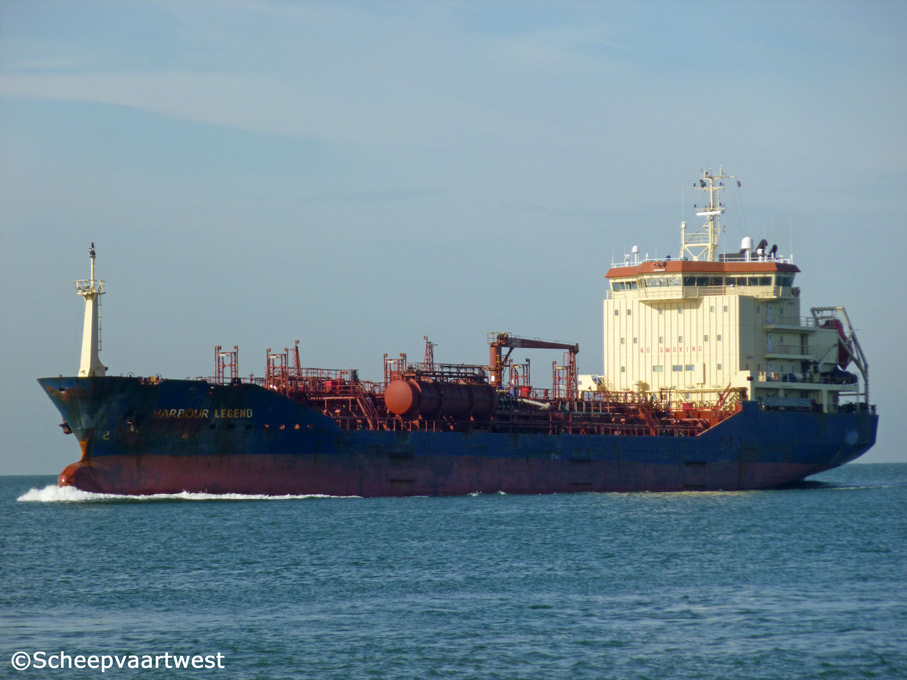

Westerschelde 28 September 2013 |
|
Name |
HARBOUR LEGEND |
|
Previous names |
26.08.2004 - 12.11.2011 Clipper Legend - Clipper Fourth Legend Ltd. / Denmark |
|
Type |
Chemical tanker |
|
IMO-number |
9305403 |
|
Call sign |
C6TR7 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
6.522 t registered |
|
DWT |
Summer: 10.051,50 t |
|
NT |
3.220 t registered Panama: 5.535 t |
|
Length |
118,37 m overall 112,00 m between perpendiculars |
|
Breadth |
19,00 m moulded |
|
Draught |
8,22 m |
|
Freeboard |
1.891 |
|
Depth |
10,10 m moulded |
|
Speed |
14,0 knots |
|
Built |
2004 |
|
Keel laid |
01.10.2003 |
|
Launch date |
27.03.2004 |
|
Date of completion |
27.07.2004 |
|
Builder |
Yardimci Shipyard A.S. Istanbul |
|
Yard number |
33 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 21 Oil tight: 9 |
|
Main engine |
1x MAN B&W 6S35MC - 6 cylinder 350 x 1.400 mm diesel engine - 4.454 kW at 173,0 rpm Manufacturer: MAN B&W Alpha Diesel AS |
|
Propellers |
1x Controllable Pitch Propeller - Diameter: 3.950 mm Manufacturer: Johnsson Metal - Sweden |
|
Boilers |
1x Fired Exhaust Gas Boiler |
|
Shaft generator |
1x AVK DSG 62 L1-4 - 500 kW |
|
Generators |
3x Main diesel generatorsets Leroy Somer LSAM 491 M 7 - 500 kW each |
|
Emergency generator |
1x Diesel generatorset 150 kW |
|
Number of cargo tanks |
12 |
|
Segregations |
14 |
|
Cargo tank capacity 98% |
11.142,22 m³ |
|
Number of tanks |
Ballast: 14 Lubricating oil: 11 Fuel oil: 9 Fresh water: 4 Waste water: 4 Diesel oil: 4 Sludge: 2 Chemical: 2 Thermal Oil: 2 Slop: 2 Chain: 1 |
|
Tank capacity |
Diesel Oil: 165,03 m³ / 140,27 t Freshwater: 67 m³ Fuel Oil: 637,12 m³ / 624,37 t Lube Oil: 46,45 m³ / 41,80 t Tank Ballast: 3.831,83 m³ / 3.927,62 t |
|
Accommodation |
14x Single berth 1x double berth cabins with separate private facilities are provided |
|
Manager |
Legend Navigation Co. Ltd. Marlborough Street Nassau Bahamas |
|
Operator |
Nordic Tankers Trading Copenhagen |
|
Registered owner |
Legend Navigation Co. Ltd. |
|
Latest data adjustment |
17 May 2014 |
