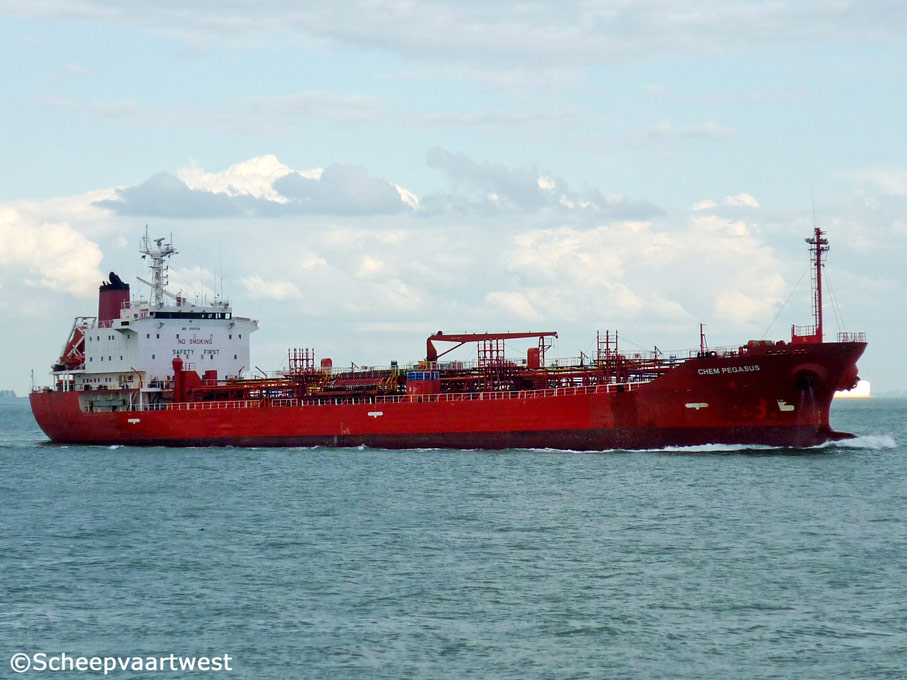

Chem Pegasus 01

Westerschelde 06 July 2012

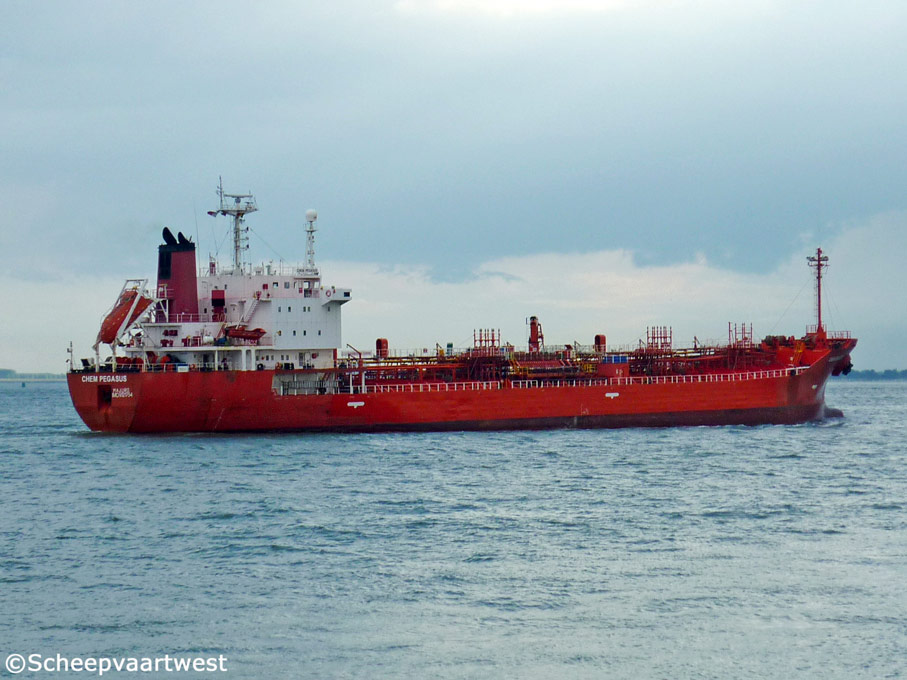

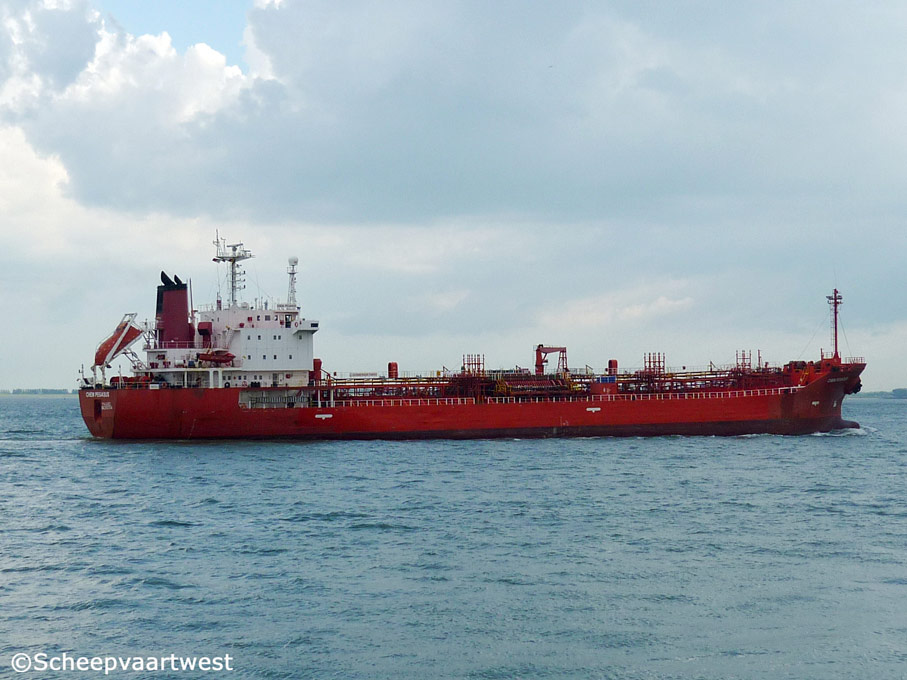

Chem Pegasus 02   Chem Pegasus 03
Westerschelde 06/07/12 Westerschelde 06/07/12


Name

CHEM PEGASUS

Previous names

1994 - 09/2003 Spring Leo

09/2003 - 04/2010 Kerim - Marshall islands, Majuro - Call sing: V7FB3

Type

Oil and Chemical tanker

IMO-number

9121754

Call sign

3EUG

Flag

Republic of Panama

Port of registry

Panama City

GT

9.544 t

DWT

Summer: 16.150 t

NT

4.834 t

Length

138,62 m overall

Breadth

21,80 m

Draught

Summer: 9,07 m

Moulded L x B x D

130,68 x 21,80 x 12,10 m

Registered L x B x D

130,68 x 21,80 x 12,10 m

Keel to mast end

37,10 m

Freeboard

3.061 mm

Depth

12,10 m

Speed

13,8 knots

Built

1995

Keel laid

10/11/1994

Launch date

28/02/1995

Date of completion

11/07/1995

Builder

Shin Kurushima Hiroshima Dockyard Co., Ltd.

Higashihiroshima

Japan

Yard number

2853

Hull material

Steel

Hull type

Double hull

Number of decks

1

Main engine

1x MAN-B&W/Makita - 2 stroke single acting 7 cylinder 350 x 1.050 mm combustion engine 4.531 kW / 6.160 hp at 210,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 370 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 16,00 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total1.285 kVA

Nuber of tanks

20 + 2 slop tanks

Tank capacity

Liquid: 17.016 m³

Nuber of pumps

8x Cargo pumps each 300 m³/h

6x Cargo pumps each 200 m³/h

6x Cargo pumps each 150 m³/h

Tank capacities

Fuel oil: 1.074 m³

Fresh water: 300 m³

water ballast: 6.044 m³

Manager

Ace Tankers

The Netherlands

Owner

Chem Ocean Shipping Ltd.

Renamed

09/2013 - 2020 Union Fortune - Republic of Panama, Panama city - Call sign: 3EUG

2020 - 2021 Swiftchem - Liberia, Monrovia - Call sign: D5WQ2

Scrapped

11/12/2021 Beached as: Maple at Alang - India

Latest data adjustment

14 October 2015
