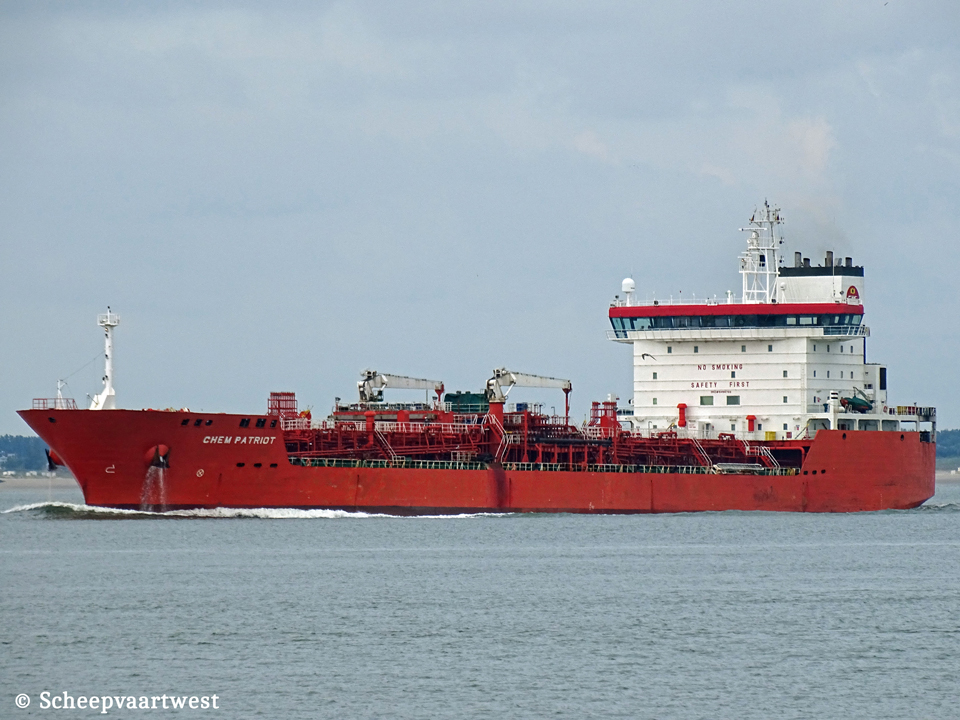

Chem Patriot IMO 9196709 01
Westerschelde 30  July 2016


Name

CHEM PATRIOT

Previous names

2000 - 2010 Ievoli Splendor

2010 - 2012 SC Chelsia

2012 - 2015 Lady Fell

Type

Chemical & oil tanker

IMO-number

9196709

Call sign

V7HI3

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

United kingdom, London - Call sign: MGAJ6

Marshall Islands, Majuro - Call sign: V7VA2

Tunisia, Tunis - Call sign: TSNU

GT

16.786 t

DWT

26.617 t

NT

8.113 t

Length

165,56 m overall

155,60 m between perpendiculars

Breadth

26,90 m

Draught

Summer: 10,52 m

Freeboard

3.291 mm

Depth

13,60 m

Speed

13,0 knots

Built

2000

Keel laid

30/11/1999

Launch date

27/05/2000

Delivery date

10/11/2000

Builder

Fincantieri Castellammare - Castellammare Di Stabi

Ancona

Italy

Yard number

6053

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

3x Wärtsilä 8R32 - 8 cylinder combustion engine each 2.960 kW

Propulsion

Electrical

2x Leroy-Somer electric motors each 3.300 kW

Propellers

1x Screw propeller solid

Boilers

2x CHO 13,00 m² - 8,0 bar

3x CHR 119,70 m² - 8,0 bar

Generators

1x Diesel generator 3.375 kVA - 2.700 kW - 4.891 hp

Number of cargo tanks

27

Cargo tank capacity

27.553 m³

Tank capacities

Fuel: 1.457,9 m³

Manager

IMC - Interunity Management Corporation SA

69, Ethnikis Antistaseos Street

152 31 Athens

Greece

Registered owner

Endeavour Shipping Ltd.

Latest data adjustment

21 May 2023
