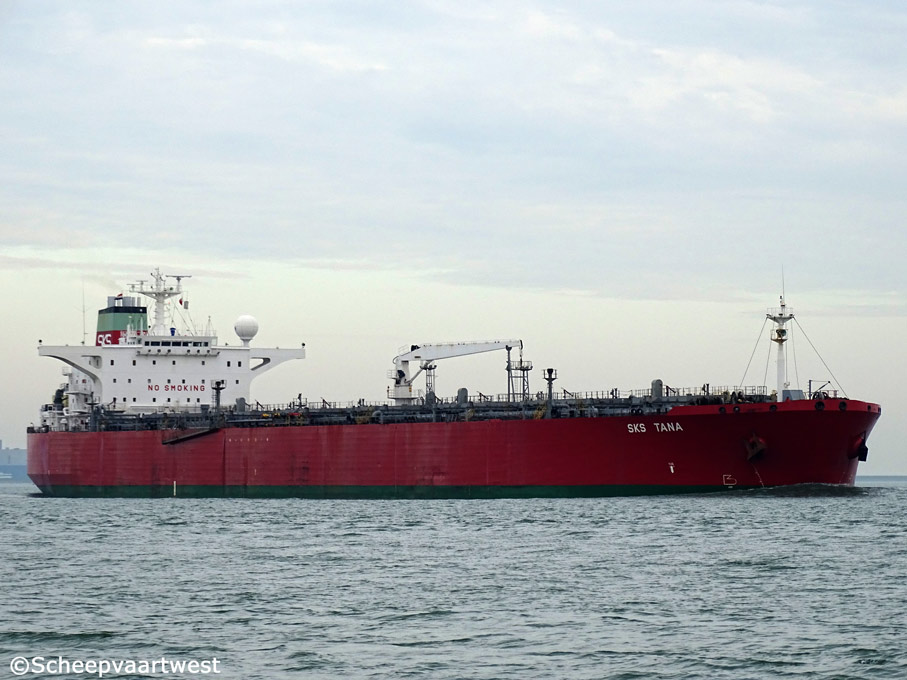

SKS Tana 01

Westerschelde 27 October 2015

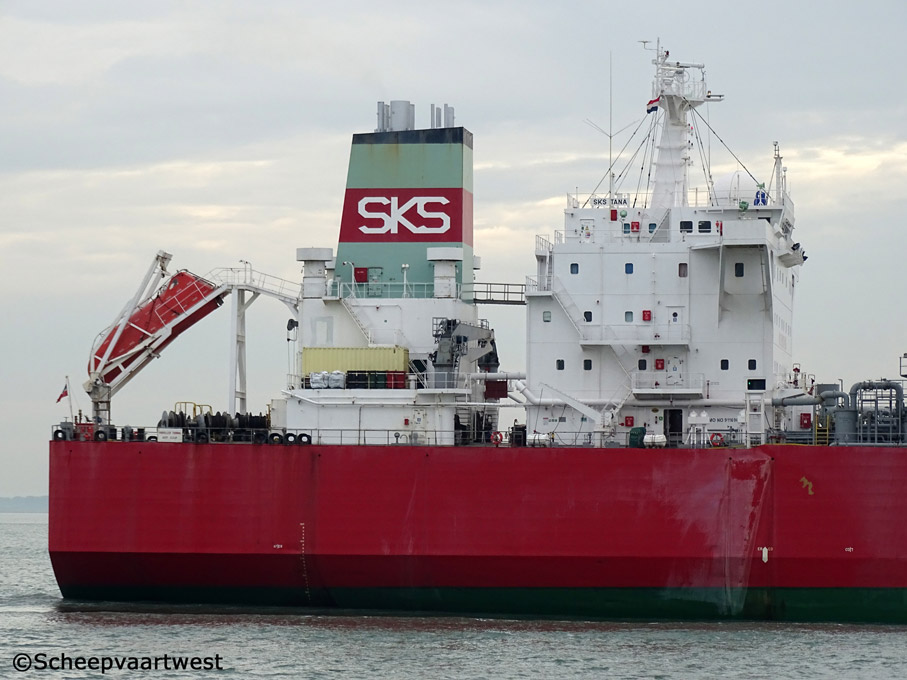

SKS Tana 02
Westerschelde 27/10/15


Name

SKS TANA

Type

OBO - Oil/Bulk/Ore carrier

Strengthened for carrying heavy cargoes

IMO-number

9116967

Call sign

C6BA8

Flag

Bahamas

Port of registry

Nassau

Previous flag

1996 - 2014 Norway

GT

63.515 t

DWT

Summer: 109.906 t

NT

30.821 t

Length

243,61 m overall

234,00 m between perpendiculars

Breadth

42,03 m extreme

Draught

15,72 m

Air draft

48,66 m

Depth

23,20 m

Speed

Max.: 15,9 knots

Service: 14,5 knots

Built

1996

Keel laid

09.01.1996

Launch date

13.04.1996

Date of completion

17.06.1996

Builder

Hyundai Heavy Industries Co. Ltd.
Ulsan
South Korea

Yard number

955

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 8

Main engine

1x MAN B&W 5S70MC - 2 stroke 5 cylinder diesel engine 14.049 kW / 19.100 hp

Builder: Hyundai Heavy Industries Co. Ltd.

Propellers

1x Lips fixed pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Generators

1x MAN B&W 6L23/30 diesel generatorset 700 kW - 450 Volt -50 Hz

2x MAN B&W 8L23/30 diesel generatorsets each 900 kW - 450Volt -50 Hz

Emergency generator

1x MTU 6R183 diesel generatorset

Tank capacity 98%

119.602 m³ excl. slop tank

Slop tank capacity 98%

1.436 m³

Total tank capacity 98%

121.038 m³

Segregation

3

Max. cargo temp.

68°C

Pumps

7x FRAMO Deepwell each 1.800 m³/h

Manifolds

Bow to centre: 120,58 m

Number of holds/tanks

7

Dry cargo capacity

122.043 m³

Number of hatch covers

8

1x Hatch: 13,68 x 13,16 m
6x Hatches: 15,39 x 18,09m

Tank capacities

Ballast: 48.925,3 m³

Diesel oil: 229 t

Heavy fuel: 3.529 t

Lifting equipment

1x Crane - SWL 15,0 t

Manager

KGJ Bulk Fleet Management
Bergen
Norway

Previous managers

1996 - 2008 V.Ships Norway AS

2008 - 2010 Kristian Gerhard Jebsen Skipsrederi AS

2010 - 2014 KGJ OBO & Tankers Fleet Management AS

Operator

SKS OBO & tankers - part of Kristian Gerhard Jebsen Skipsrederi AS
Folke Bernadottes vei 38
5147 Fyllingsdalen
Bergen
Norway

Owner

KGJ Obo & Tankers Fleet Management
Bergen
Norway

Registered owner

SKS Obo and Tankers AS

Previous owners

1996 - 2009 SKS Obo Holding Ltd.

Latest data adjustment

30 November 2015
