Westerschelde 05 May 2015 |
|
Name |

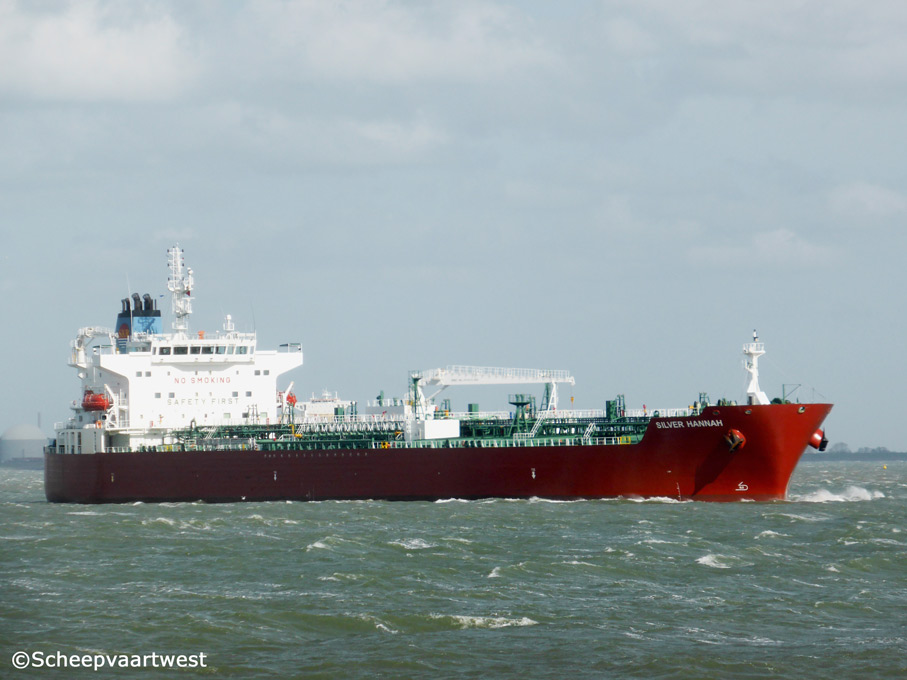

SILVER HANNAH |
|
Type |
Oil tanker / Chemical tanker |
|
Main products |
Chemicals |
|
Transport type |
Isothermal |
|
IMO-number |
9682409 |
|
Call sign |
V7IB4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.460 t |
|
DWT |
Summer: 49.746 t |
|
NT |
13.632 t |
|
Length |
183,06 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m |
|
Draught |
13,27 m |
|
Reg. dimensions L x B x D |
175,27 X 32,20 X 19,10 m |
|
Rule dimensions L x B x D |
172,69 X 32,20 X 19,10 m |
|
Freeboard |
Summer: 5.852 mm |
|
Depth |
19,10 m |
|
Speed |
14,35 knots |
|
Built |
2014 |
|
Keel laid |
12.05.2014 |
|
Launch date |
04.07.2014 |
|
Date of completion |
12.11.2014 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. |
|
Yard number |
2402 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x B&W 6G50ME-B9.2 - 2 stroke 6 cylinder 500 x 2.500 mm diesel engine 7.700 kW / 10.462 hp at 93,4rpm Built:12.11.2014 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 93,4 rpm |
|
Boilers |
1x CHO Kangrim 216,00 m² - 7,0 bar Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 1.125 kVA - 900 kW - 1.304 hp |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 219 hp |
|
Number of tanks |
12 |
|
Total capacity of tanks |
50.824,5 m³ |
|
Tank capacities |
Fuel oil: 1.426,5 m³ Fresh water: 273,9 m³ Water ballast: 22.216,6 m³ |
|
Radio installation |
GMDSS A1+A2+A3 |
|
Manager |
Sinokor Petrochemical Co., Ltd. |
|
Technical manager |
Columbia Shipmanagement(Deutschland) GmbH |
|
Registered owner |
Silver NO.10 S.A |
|
Latest data adjustment |
04 July 2015 |
