Westerschelde 25 June 2020 |
|
Name |

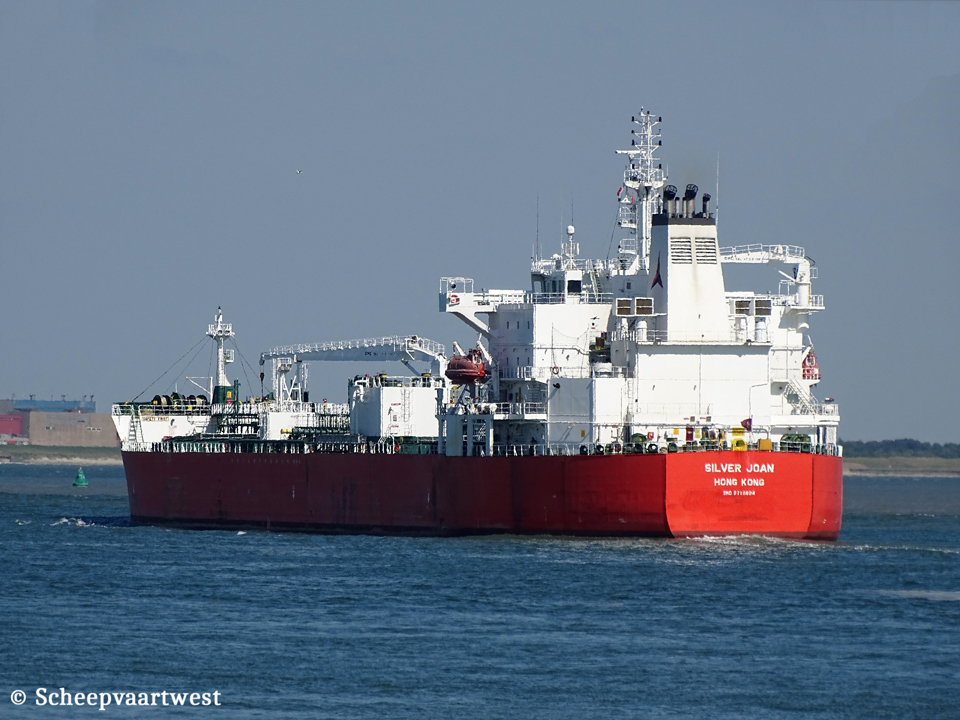

SILVER JOAN |
|
Type |
Chemical/Oil product tanker |
|
IMO-number |
9718894 |
|
Call sign |
VRPS8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.375 t Suez: 31.144,52 t |
|
DWT |
Summer: 49.897 t |
|
NT |
13.768 t Suez: 27.366,88 t Panama: 24.389,08 t |
|
Displacement |
60.245 t |
|
Length |
183,06 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,27 m |
|
Keel to mast end |
48,84 m |
|
Freeboard |
5.862 mm |
|
Depth |
19,10 m moulded |
|
Speed |
14,5 knots |
|
Built |
2016 |
|
Keel laid |
29/12/2015 |
|
Launch date |
23/09/2016 |
|
Delivery date |
29/11/2016 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2440 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6G50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.500 mm combustion engine 7.700 kW / 10.469 hp at 93,4 rpm Manufacturer: HHI Engine & Machinery Div. - South Korea |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. - South Korea |
|
Boilers |
1x Auxiliary boiler - 8,83 MPa 1x Composite boiler - 8,83 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: HHI Electro Electric System |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 100% |
54.387,60 m³ |
|
Number of pumps |
12x cargo pumps each 600 m³/h |
|
Tank capacities |
Hydraulic oil: 18,20 m³ Ballast: 21.876,70 m³ Fresh water: 259,80 m³ Diesel oil: 245,10 m³ Lub oil: 11,20 m³ Fuel oil: 1.421,50 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
26 |
|
Commerical manager |
Tristar Transport LLC Unit 599-2143, Jebel Ali Industrial Area 2 Dubai United Arab Emirates |
|
ISM manager |
Fleet Management Limited 27th Floor, South Island Place 8, Wong Chuk Hang Road, Southern Hong Kong China |
|
Registered owner |
ROC Shipping One Designated Activity Company Care of Tristar Transport LLC , Unit 599-2143, Jebel Ali Industrial Area 2 Dubai United Arab Emirates |
|
Latest data adjustment |
24 November 2021 |
