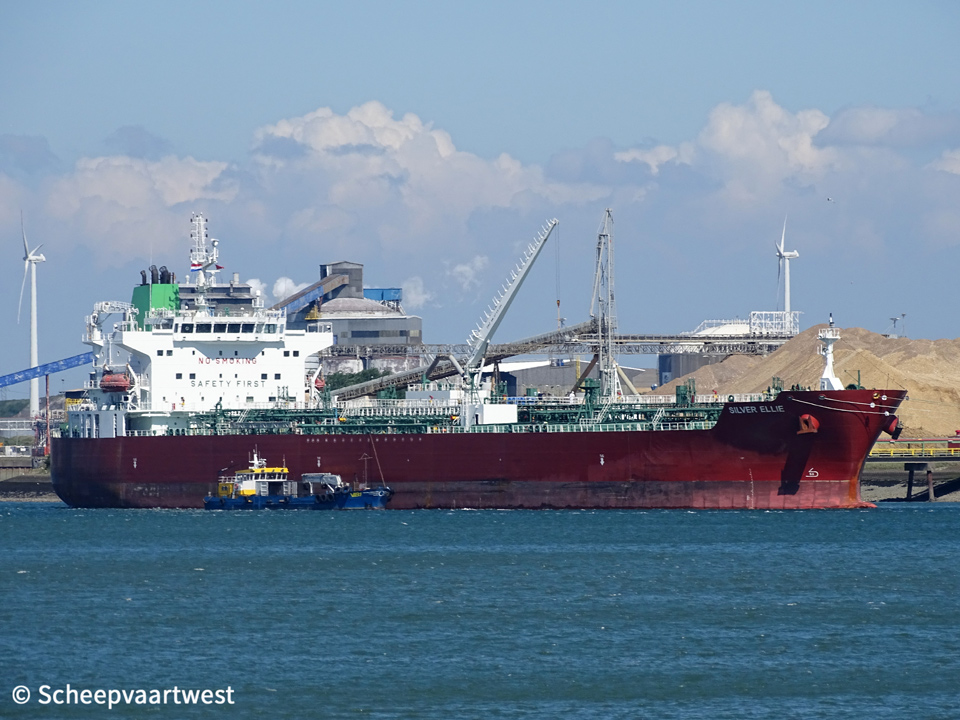

Silver Ellie 01

Vlissingen 11 May 2019



Name

SILVER ELLIE

Type

Chemical & oil product tanker

IMO-number

9692387

Call sign

V7QK6

Flag

Marshall islands

Port of registry

Majuro

GT

29.327 t

DWT

49.635 t

NT

13.745 t

Length

183,06 m overall

Breadth

32,20 m

Draught

Max: 13,27 m

Reg. dimensions L x B x D

175,27 x 32,20 x 19,10 m

Rule dimensions L x B x D

172,69 x 32,20 x 19,10 m

Freeboard

Summer: 5.852 mm

Depth

19,10 m

Speed

14,5 knots

Built

2015

Keel laid

28/07/2015

Launch date

25/09/2015

Date of completion

27/11/2015

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

2430

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/HHI 6G50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.500 mm combustion engine 7.700 kW at 93,4 rpm

Build: 07/2015

Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1x Fixed propeller

Boilers

1x Auxiliary Boiler WTB (Water tube)

Pressure: 8,8 kg/cm²

Heating surface: 216.0 m²

2x Auxiliary Boiler CPB

Pressure: 8,8 kg/cm²

Heating surface: 37,2 m²

Build: 08/2015

Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

3x Main diesel generatorsets each 1.125 kVA - 450 Volt

Number of cargo tanks

12

Cargo tank capacity

Liquid: 54.247 m³

Tank capacities

Fuel oil: 1.422,5 m³

Fresh water: 259,8 m³

Water ballast: 21.887,1 m³

Manager

Sinokor Petrochemical Co., Ltd.

10F Haenam Building

Taepyeongn 64 Sejong-daero

Jung-gu Seoul

Republic of (South)

Technical manager

Columbia Shipmanagement (Deutschland) GmbH

Große Elbstraße 275

22767 Hamburg

Germany

Registered owner

Tongshi International Ship Lease Co., Limited

Latest data adjustment

06 May 2020
