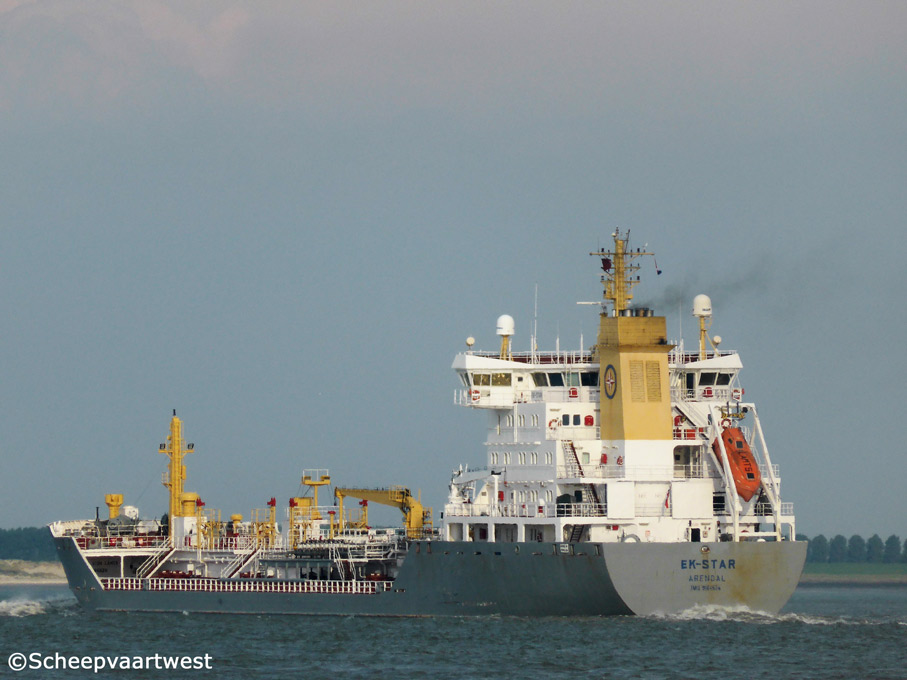

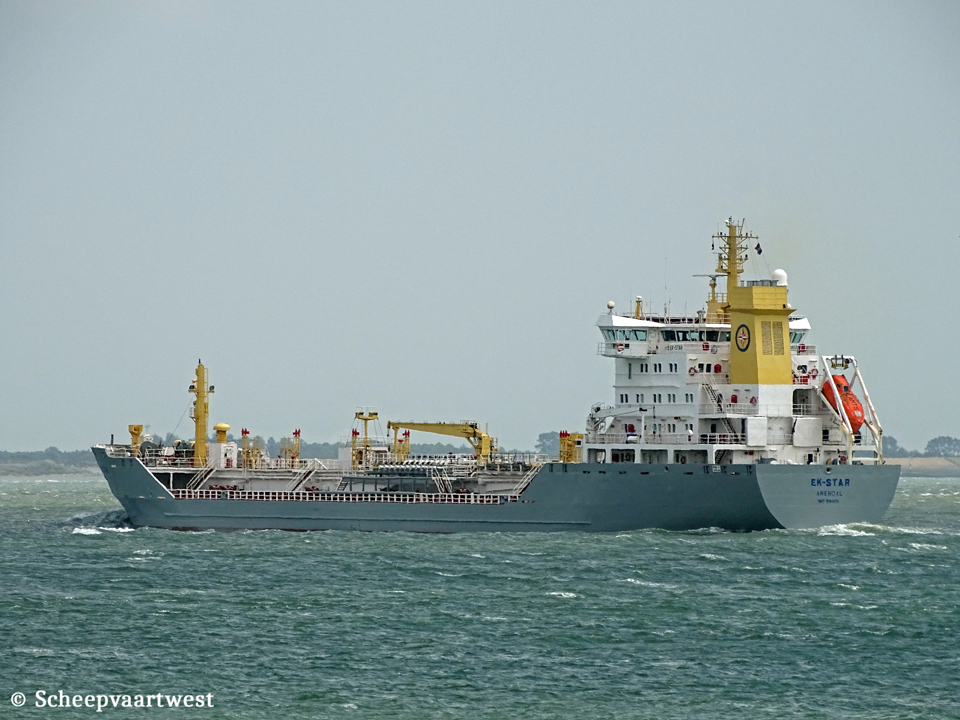

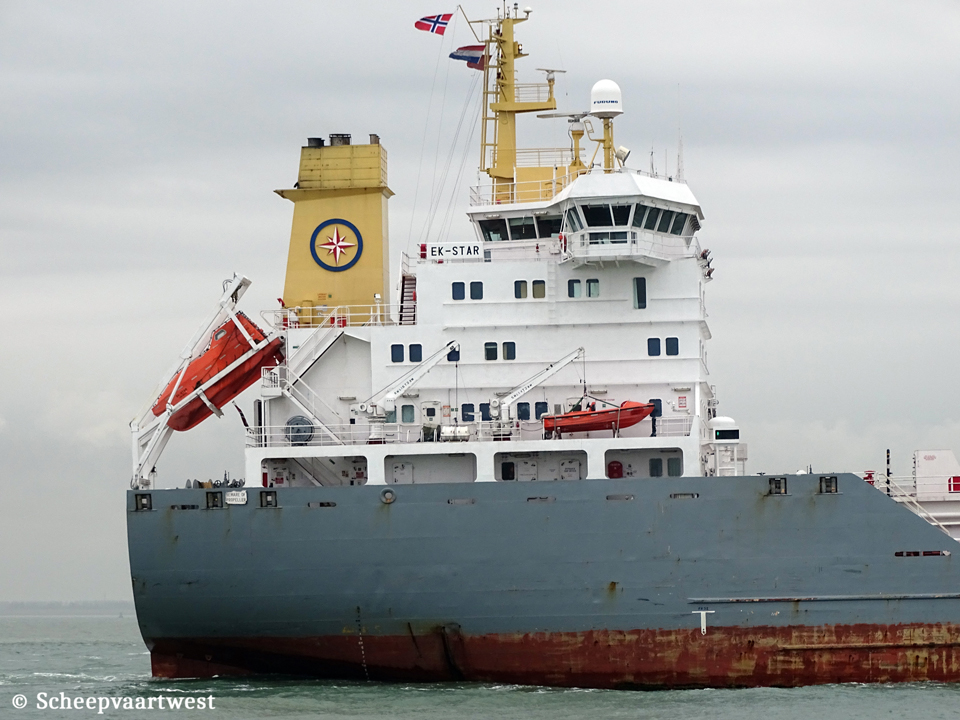

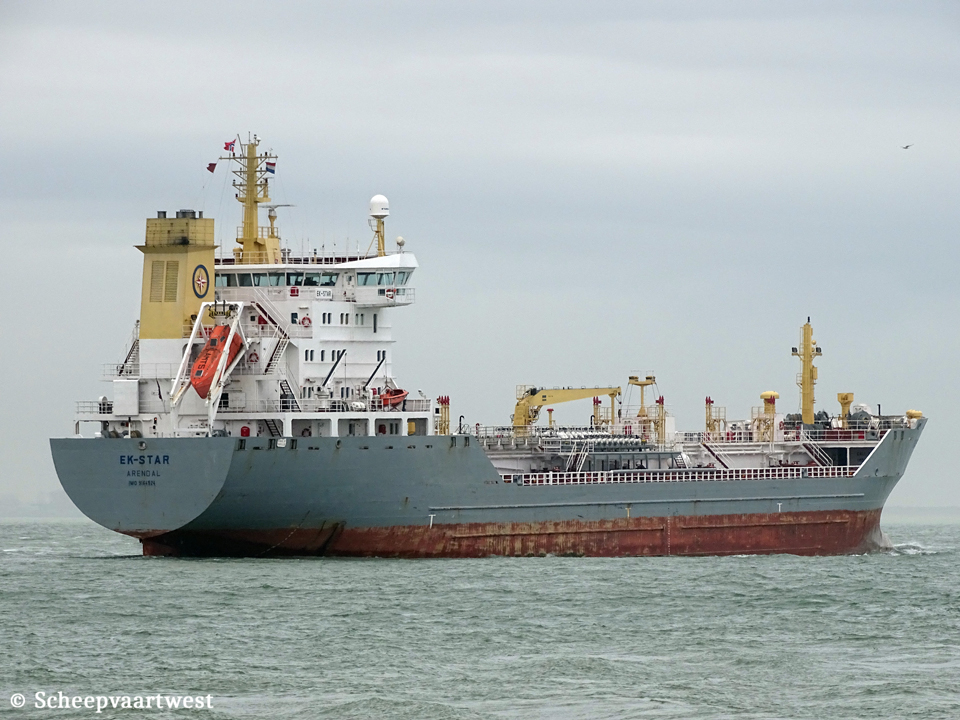

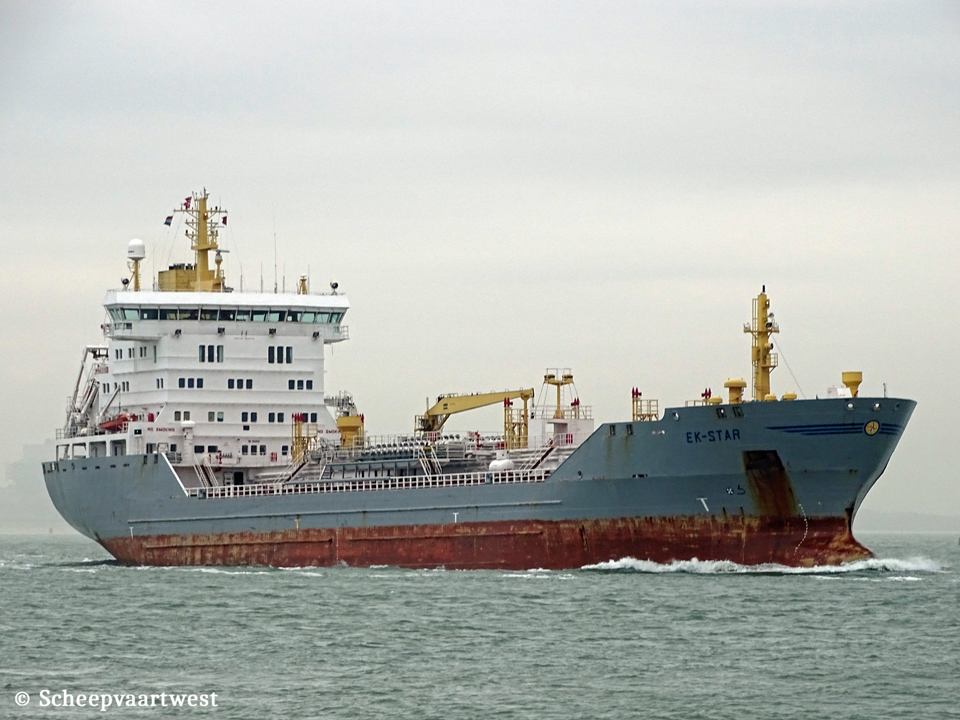

Westerschelde 24 July 2014 |
|
Name |
EK-STAR |
|
Type |
Tanker for oil |
|
IMO-number |
9164524 |
|
Call sign |
LAMT5 |
|
Flag |
Norway |
|
Port of registry |
Arendal |
|
GT |
8.829 t |
|
DWT |
Summer: 13.683 t Winter: 13.253 t |
|
NT |
4.173 m |
|
Length |
134,70 m overall 127,73 m between perpendiculars |
|
Breadth |
20,79 m extreme |
|
Draught |
Max.: 8,61 m |
|
Depth |
11,01 m to upper deck |
|
Speed |
Service: 13,5 knots Ballast: 14,5 knots |
|
Built |
1999 |
|
Keel laid |
23.06.1998 |
|
Launch date |
08.12.1998 |
|
Date of completion |
03.12.1999 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. |
|
Yard number |
2238 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side with top wing |
|
Main engine |
1x MAN B&W 6S42MC diesel engine 5.300 kW at 120,0 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 120,0 rpm Diameter: 4,90 m |
|
Boilers |
1x Thermal oil heater, exhaust heated 2x Thermal oil heater, oil fired |
|
Generators |
4x MAN B&W 5L16/24 main diesel generatorsets each 500 kW at 1.200 rpm |
|
Emergency generator |
1x Volvo Penta TAMD 71B diesel generatorset |
|
Bow thruster |
1x Azimuth 580 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity 98 % |
14.262 m³ |
|
Number of slop tanks |
2 |
|
Slop tank 98% |
170 m³ |
|
Pumps |
12x Deepwell cargo pump each 330 m²/h 2x Deepwell slop pumps each 120 m²/h |
|
Tank capacities |
Water ballast: 5.455,42 m³ HFO: 517 m³ DO: 103 m³ Fresh water: 110 m³ |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t at 18,00 m |
|
Manager |
Osm Shipmanagement AS |
|
Previous managers |
1999 - 2001 OSM Crew Management AS 2001 - 2006 Ektank AB |
|
Owner |
Ektank |
|
Registered owner |
Turus Shipping Ltd. |
|
Latest data adjustment |
09 February 2015 |
