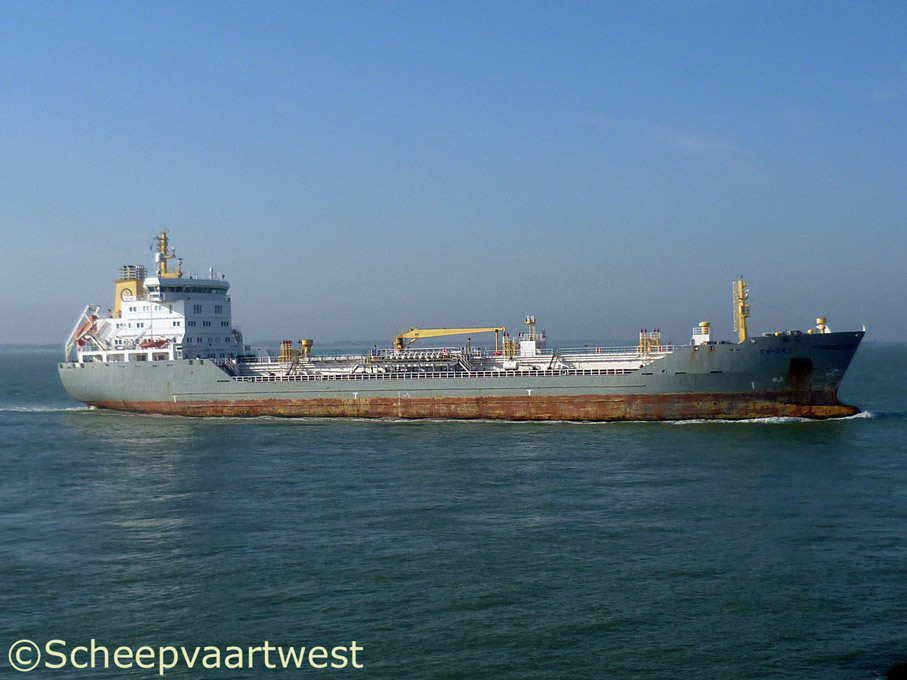

EK-Sky 01
Westerschelde 03 October 2011

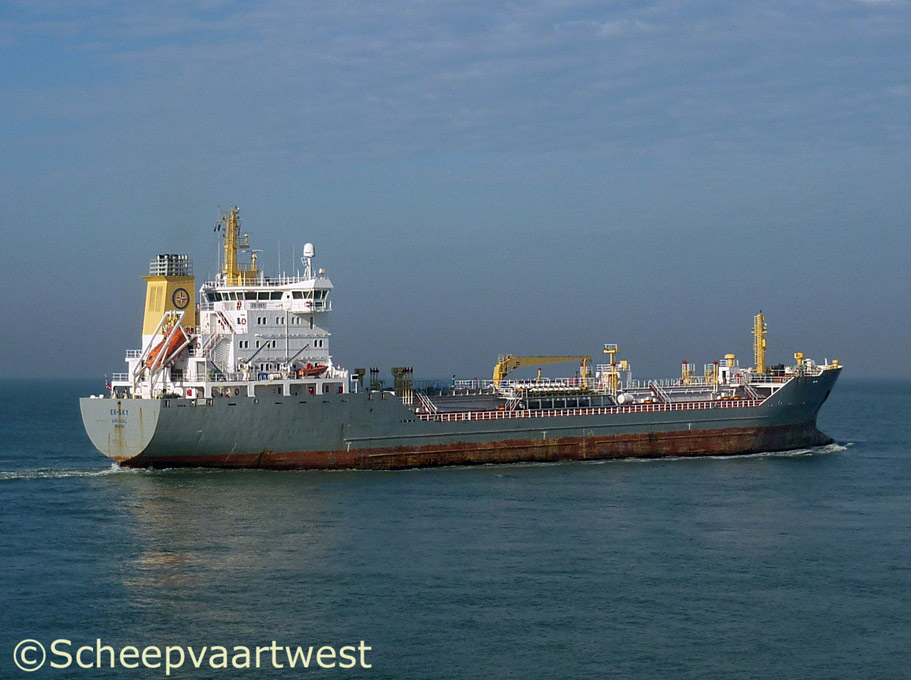

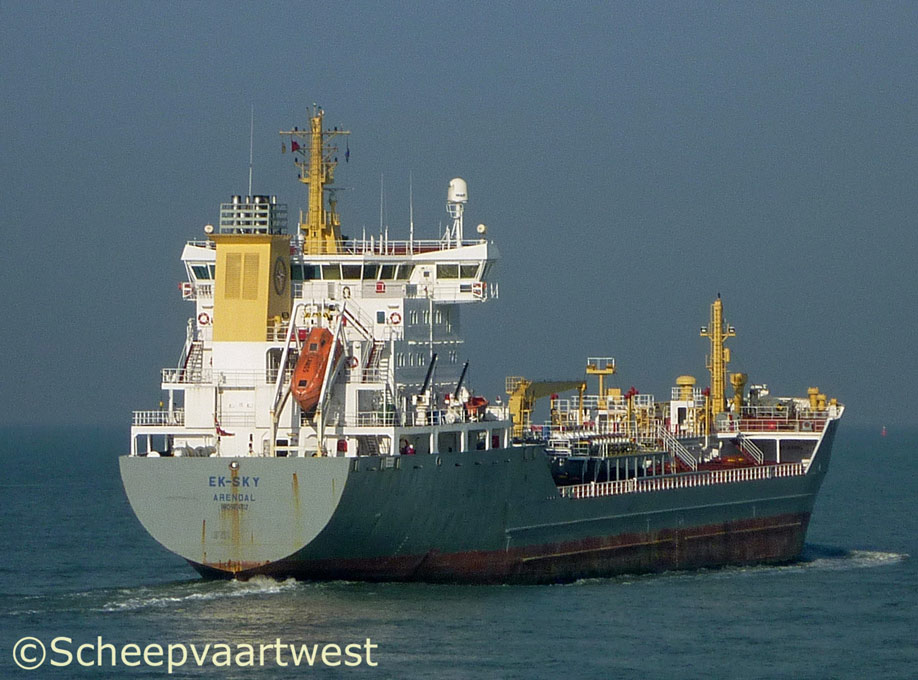

EK-Sky 04   EK-Sky 06
03/10/11   03/10/11



Name

EK-SKY

Type

Chemical / Oil products tanker

IMO-number

9164512

Call sign

LAMS5

Flag

Norway

Port of registry

Arendal

GT

8.829 t

DWT

Summer: 13.786,61 t

Winter: 13.354 t

NT

4.173 t

Length

134,70 m overall

127,00 m between perpendiculars

Breadth

21,79 m overall

Draught

8,60 m

Depth to upperdeck

10,99 m

Speed

Loaded: 13,5 knots

Ballast: 14,5 knots

Built

1999

Keel laid

08.06.1998

Launch date

23.09.1998

Date of completion

20.08.1999

Builder

Jiangnan Shipyard (Group) Co., Ltd.
Feng Chan Village, Chang Xing Town Chongmin County
Shanghai
China

Yard number

2237

Hull material

Steel

Hull type

Double bottom
Double side with top wing

Main engine

1x MAN B&W 6S42MC - 5.300 kW at 120,0 rpm

Builder: MAN B&W Diesel A/S

Propeller

1x Controllable pitch - aft at 120 rpm

Diameter: 4,90 m

Boilers

1x Thermal oil heater, exhaust heated AHE 072 V30 - 470 kW

2x Thermal oil heater, oil fired HE 25 V40 - 2.900 kW each

Generator

4x Man 5L16/24 main diesel generatorsets each 500 kW at 1.200 rpm

Builder: MAN B&W Diesel AG

Emergency generator

1x Volvo Penta TAMD 71B diesel generatorset

Bow thruster

1x Azimuth - 580 kW

Number of tanks

12x Cargo tanks and 2 slop tanks, with one deepwell pump (hydraulic driven) in each tank

Cargo capacity 98%

14.262 m

Cargo pumps

12× Each 330 m³/h at 110 mlc

Slop tank pumps

2× Each 120 m³/h at 110 mlc

Cargo discharge capacity

1.980 m³/h at 110 mlc

Ballast pumps

2× 500 m³/h at 20 mlc each

Tank capacities

Slop: 170 m³

HFO 98%: 517 m³

Diesel oil: 103 m³

Fresh water; 110 m³

Water ballast: 5.455,42 m³

Deck crane

1x Crane - SWL 5,0 t

Manager

OSM Ship Management AS
Svinoddvn. 12
4836 Arendal
Norway

Previous managers

1999 - 2001 OSM Norway AS
Svinoddveien 12
4836 Arendal
Norway

2001 - 2006 Ektank AB
Stora Badhusgatan 18-20
40317 Gothenburg
Sweden

2006 - 2006 OSM Ship Management AB
Backa Bergögatan 18
422 46 Hisings Backa
Sweden

Owner

EKships/Ekchartering AB
c/o Ektank AB
403 17 Göteborg
Sweden
