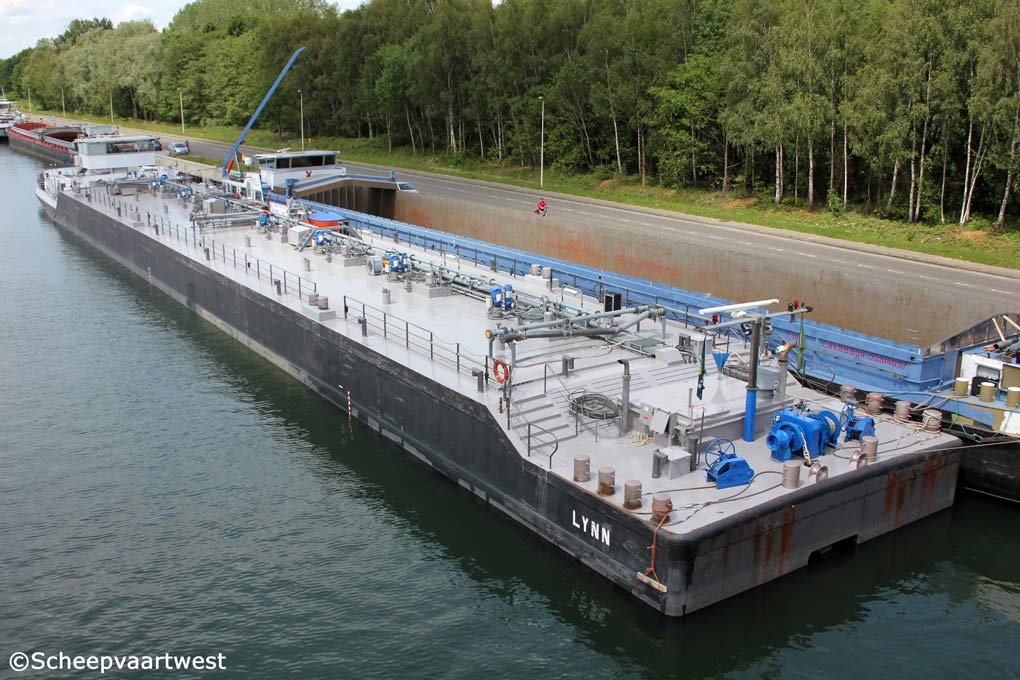

Lynn 01

Wijnegem, Belgium 25 May 2014



Name

LYNN

Type

Inland tanker

ENI-number

07001816

Call sign

HE7204

Flag

Switzerland

Port of registry

Basel

GT

1.734 t

DWT

2.465 t

Length

95,50 m

Breadth

11,45 m

Draught

3,40 m

Depth

5,47 m

Built

2005

Builder hull

Severnav
Drobeta Turnu Severin
Romania

Builder completion

Smits Machinefabriek en Scheepsreparatie B.V.
Krimpen a/d Lek
The Netherlands

Hull material

Steel

Main engine

2x ABC6 MDZC - 6 cylinder diesel engine each 1.103 kW / 1.500 hp at 800 rpm

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

900 Gent

Belgium

Gearbox

2x Reintjes WGF 762 - reduction: 2,418:1

Propellers

2x 5 blades propellers - Diameter 1.750 mm with nozzle Optima diameter 1.714 mm

Generators

2x Scania type DC 16 generatorsets each 458 kVA, 60 Hz

1x Sisu Diesel type 620 DSRIG generatorset 97 kVA, 50 Hz

2x Sisu Diesel type 420 DSRG generatorsets each 71,5 kVA, 50 Hz

1x Scania type DI 12 diesel motor 335 kW at 1.800 rpm

Bow thruster

1x 2 Veth-Jet type 4-K-1200 with electro motor 320 kW at 1.800 rpm

Cargo tank capacity

2.962 m³

Pumps

15x MarFlex MDPD-80 cargo deepwell pumps

2x MarFlex MBDPD-200 ballast pumps

Owner

Navirom AG
Sankt Alban-Anlage 64
4010 Basel
Switzerland

Latest data adjustment

16 January 2015
