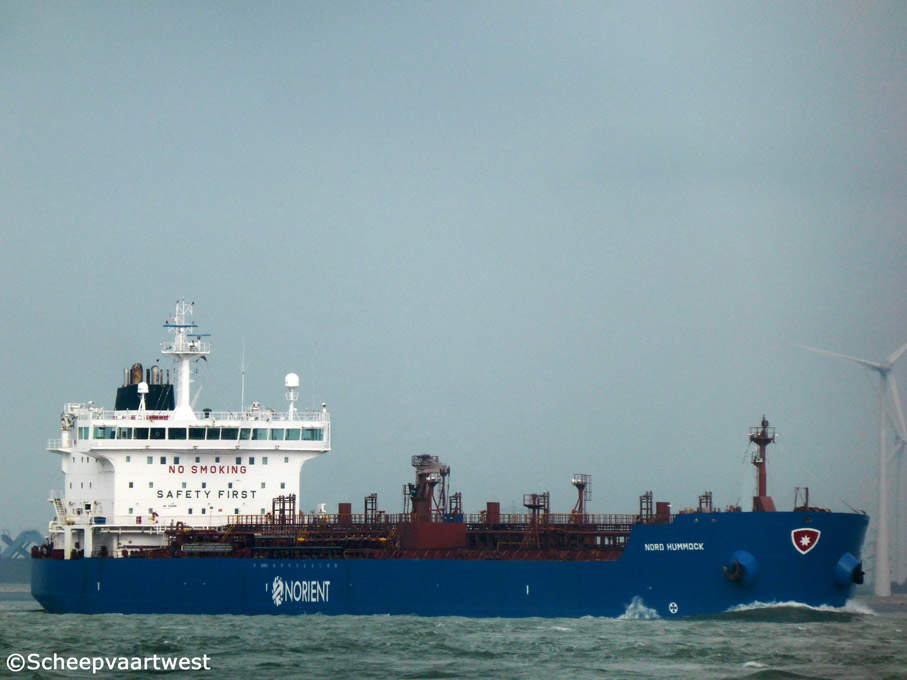

Nord Hummock 01

Westerschelde 12 July 2014

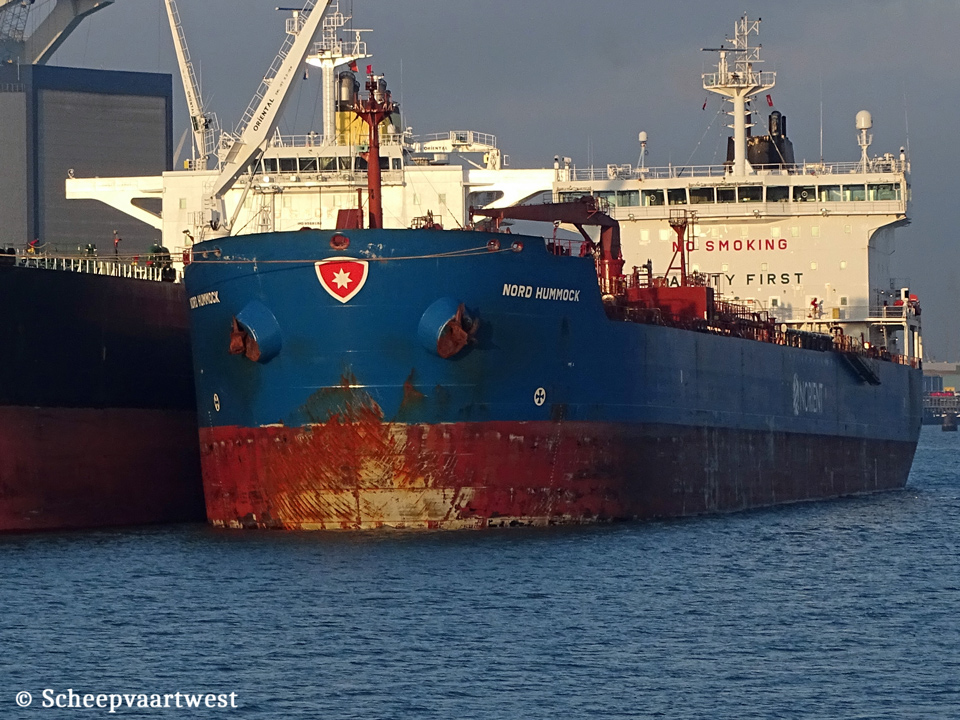

Nord Hummock IMO 9352195 03
Vlissingen 05/02/19


Name

NORD HUMMOCK

Previous names

2007 - 05/2009 Jag Payal

05/2009 - 01/2011 Payal

Type

Tank for oil and chemical

IMO-number

9352195

Call sign

OZHD2

Flag

Denmark

Port of registry

Hellerup

Previous flags

2007 - 2009 India

2009 - 2011 Malta, Valletta - Call sign: 9HA2123

GT

23.304 t

DWT

Summer: 37.159,30 t

Winter: 36.086,30 t

NT

10.232 t

Suez: 19.406 t

Displacement

Summer: 46.003 t

Winter: 44.930 t

Length

182,55 m overall

176,08 m between perpendiculars

Breadth

27,34 m extreme

Draught

Summer: 11,22 m

Winter: 10,98 m

Keel to masthead

47,20 m

Air draft

Lightship: 44,71 m

Normal ballast: 39,42 m

At loaded summer deadweight: 35,98 m

Freeboard

Summer: 5.514 mm

Winter: 5.747 mm

Depth

16,70 m moulded

Speed

14,7 knots ballast

14,0 knots laden

Built

2007

Date of completion

19/03/2007

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

0480

Hull material

Higher tensile steel

Hull type

Double hull

Number of decks

1

Main engine

1x MAN-B&W-BMZ/Hyundai 7S50MC-C - 2 stroke single action 7 cylinder 200 x 2.000 mm combustion engine 11.400 kW / 15.499 hp at 127,0 rpm

Builder: AO Bryanskiy Mashinostroitelnyy Zavod (BMZ) , Bryansk - Russia

Propellers

1x Fixed pitch propeller - aft at 127,0 rpm

Boilers

1x Exhaust gas eEconomiser

1x Auxiliary boiler

Generators

3x Yanmar 6N21AL-EV- 4 stroke 6 cylinder 201 x 290 mm diesel engines each 970 kW connected with generators each 970 kW 440 Volt 60 Hz

Bow thruster

1x 1.224 hp / 912,7 kW

Number of tanks

12

Cargo tank capacity 98%

Seg#1: 13.228,2 m³ (1+5 P/STB)

Seg#2: 13.512,0 m³ (2+6 P/STB)

Seg#3: 14.382,8 m³ (3+4 P/STB)

Total cubic capacity 98%

41.123,13 m³ excluding slop tanks

Slop tanks capacity

875,32 m³

Double valve segregation

6

Number of pumps

10x Centrifugal cargo pumps each 500 m³/h

2x Centrifugal cargo pumps each 320 m³/h

2x Centrifugal cargo pumps each 150 m³/h

2x Centrifugal ballast pumps 750 m³/h

Maximum loading rate

4.800 m³/h

Manifolds

Bow to centre manifold: 92,58 m

Stern to centre manifold: 89,97 m

Distance bridge front to centre of manifold: 56,34 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.540 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 670 mm

Distance main deck to centre of manifold: 2.100 mm

Tank capacities

Marine diesel oil: 1.228,8 m³

Marine gas oil: 175,7 m³

Lifting equipment

1x Crane - SWL 10,0 t

Crew

23

Technical operator

Norden Synergy Ship Management A/S

Strandvejen 52

DK-2900 Hellerup

Denmark

Commercial operator

Norient Product Poll ApS

Strandvejen 52

DK-2900 Hellerup

Denmark

Disponent owner

Dampskibsselskabet Norden A/S

Strandvejen 52

DK-2900 Hellerup

Denmark

Registered owner

Norden Asset Management A/S

Strandvejen 52

DK-2900 Hellerup

Denmark

Latest data adjustment

02 June 2021
