Westerschelde 20 July 2014 |
 |
 |
 |
 |
 |
 |
|||||

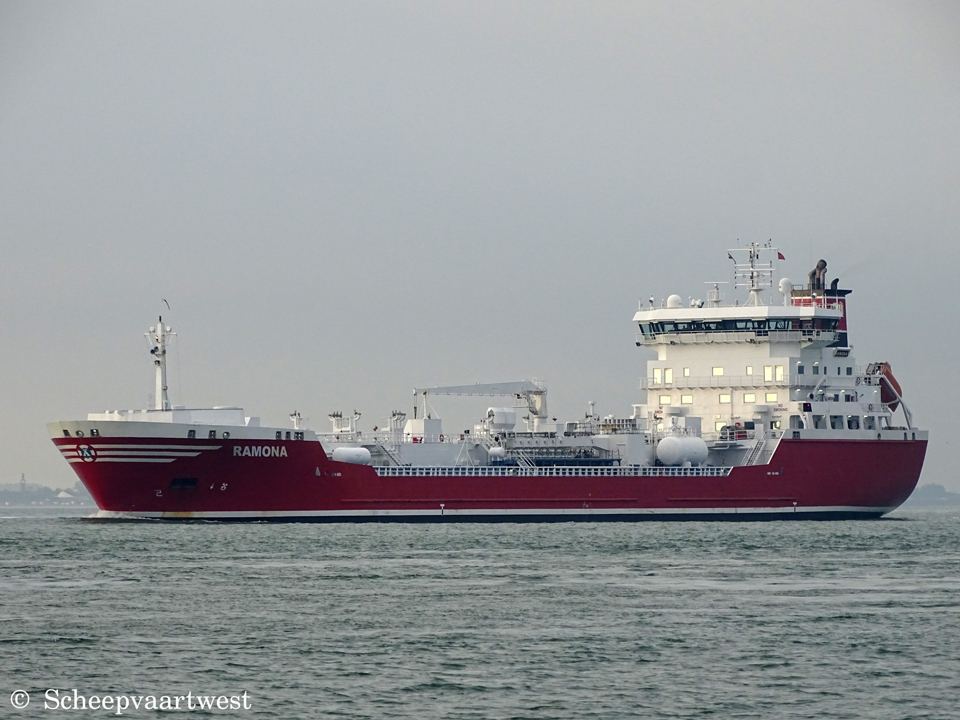

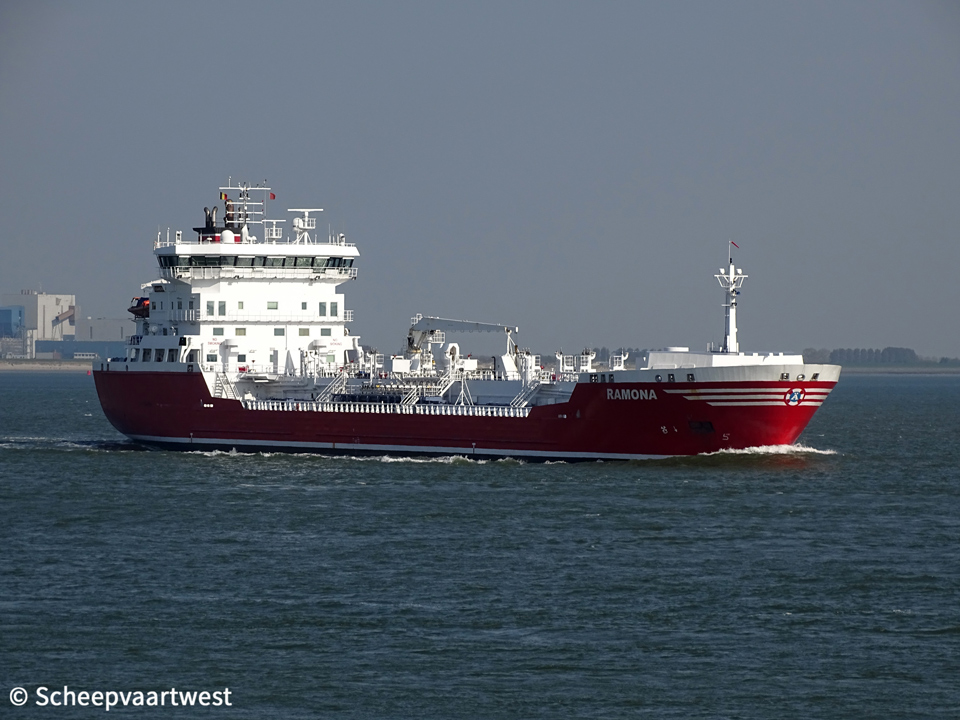

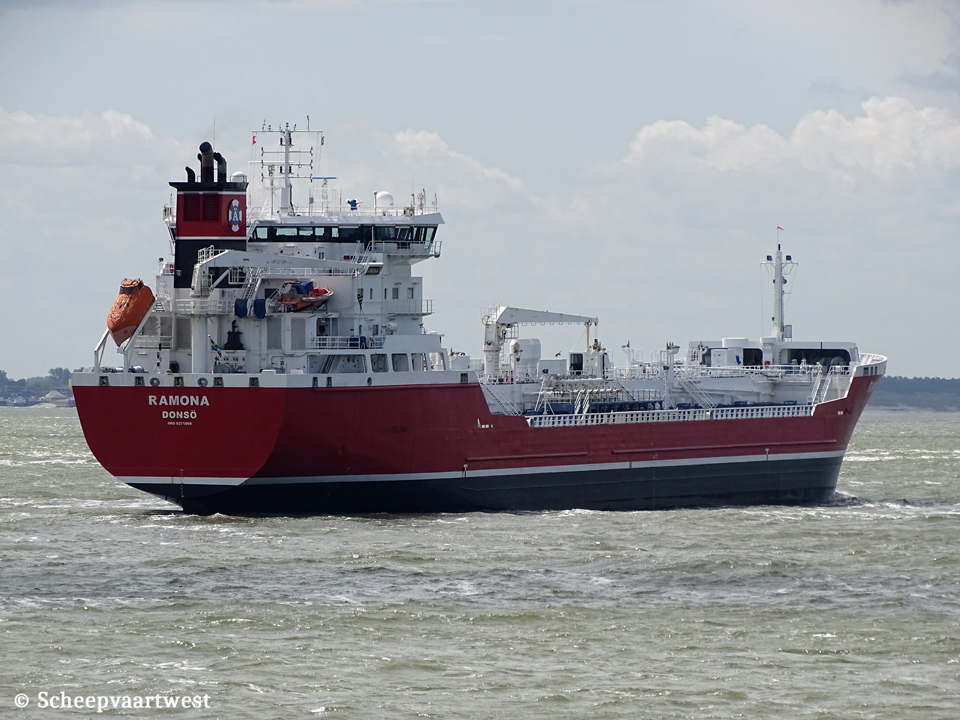

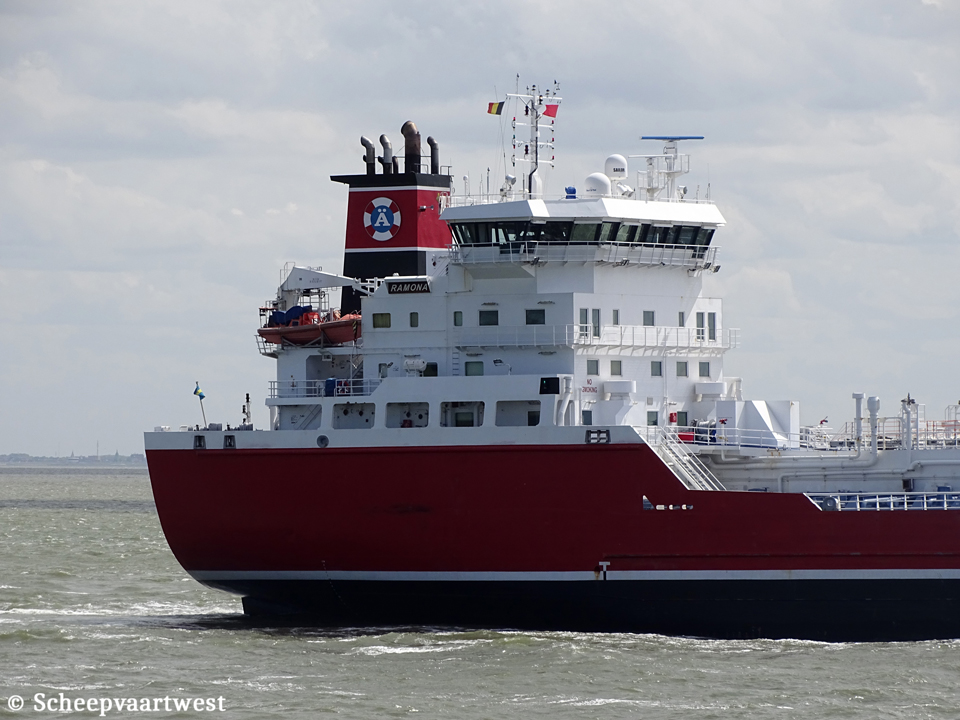

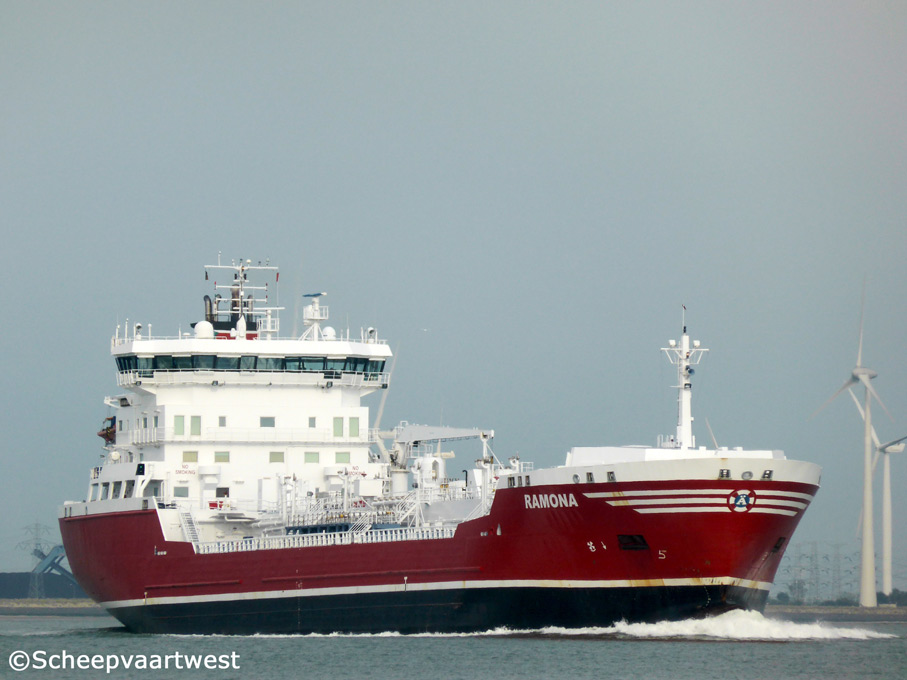

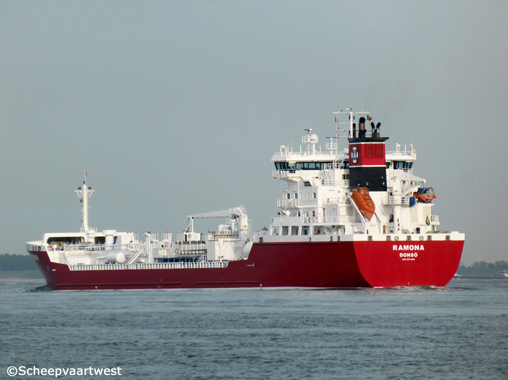

| Antwerpen 29/03/14 | Westerschelde 11/05/15 | Westerschelde 14/10/17 | Westerschelde 17/04/20 | Westerschelde 30/04/20 | Westerschelde 30/04/20 | |||||
|
Name |
RAMONA |
|
Type |
Oil / chemical tanker |
|
IMO-number |
9271896 |
|
Call sign |
SFGZ |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
GT |
11.548 t registered |
|
DWT |
Summer: 17.592 t |
|
NT |
5.553 t registered |
|
Length |
143,97 m overall 135,75 m between perpendiculars |
|
Breadth |
21,82 m |
|
Draught |
Summer: 9,75 m |
|
Air draft |
Max.: 27,00 m |
|
Freeboard |
2.762 mm |
|
Depth |
12,50 m |
|
Speed |
14,5 knots |
|
Built |
2004 |
|
Date of completion |
17/12/2004 |
|
Builder |
Edward Shipyard Shanghai China |
|
Yard number |
H130 |
|
Hull material |
Steel |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 7M43 - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.190 kW / 8.410 hp at 600 rpm Built: 2004 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 118 rpm Builder: Rolls-Royce Kamewa |
|
Boilers |
1x Exhaust gas heater CHR 176,00 m² - 10,0 bar 2x Thermal oil boilers CHO GESAB 121,70 m² - 10,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x ABB 1.250 kVA - 1.000 kW |
|
Generators |
3x Volvo Penta D34 A MT diesel engines each 850 kW connected with Stamford HCM634Jgeneratorsors each 988 kVA |
|
Emergency generator |
1x Diesel generatorset 269 kVA - 215 kW - 380 hp |
|
Bow thruster |
1x Brunvoll retractable azimuth 850 kW |
|
Number of cargo tanks |
12 |
|
Tank capacity at 100 % |
No 1 S / P: 1.279 / 1.263 m³ No 2 S / P: 1.381 / 1.382 m³ No 3 S / P: 1.645 / 1.661 m³ No 4 S / P: 1.903 / 1.899 m³ No 5 S / P: 1.660 / 1.644 m³ No 6 S / P: 1565 / 1.580 m³ Slop S / P: 191 / 191 m³ Total: 19.244 m³ |
|
Total capacity at 98% |
18.820,84 m³ |
|
Segregations |
14x Possible to discharge 7 at same time |
|
Cargo pumps |
12x Framo SD 150 cargo pumps each 330 m³/h 2x Framo SD 100 cargo pumps each 100 m³/h 2x Framo ballast pumps each 500 m³/h |
|
Tank capacities |
Ballast: 7.032 m³ Deck drain tank: 42 m³ HFO: 694 m³ GO: 116 m³ Fresh water drinking: 52 m³ Fresh water technical: 366 m³ |
|
Manager |
Älvtank Rederi Donsö Sweden |
|
Commercial operator |
Furetank Chartering |
|
Registered owner |
Rederi AB Älvtank Donsöhamnväg 27 43082 Donsö Sweden |
|
Latest data adjustment |
20 August 2022 |
