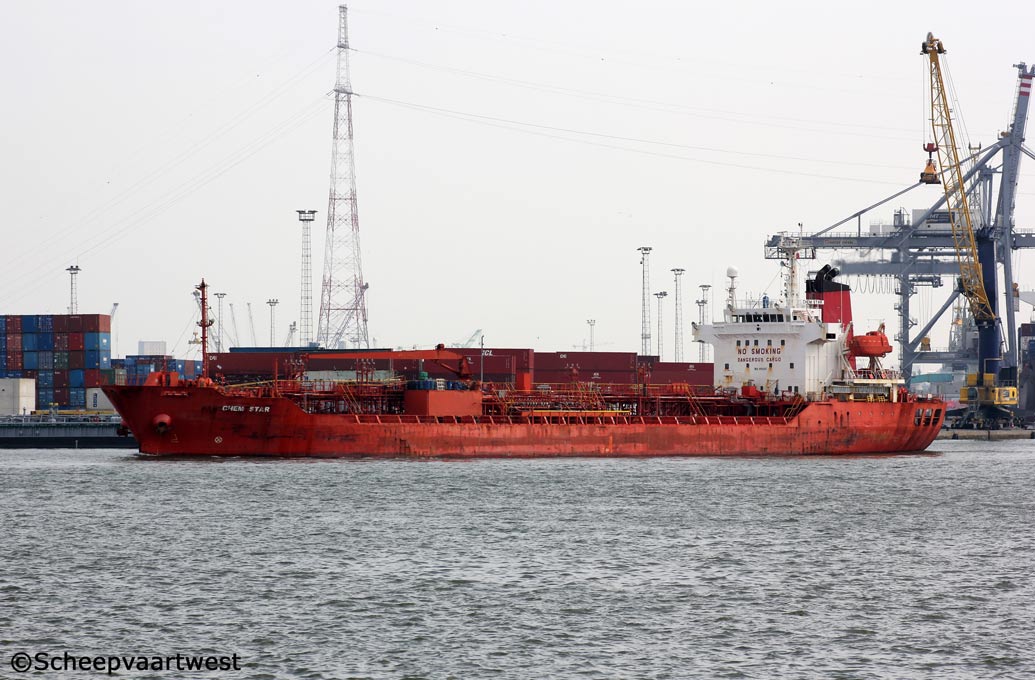

Chem Star 01

Antwerpen 29 March 2014



Name

CHEM STAR

Previous names

1999 - 12.2008 Panam felice

Type

Oil / Molasses / Chemical tanker

IMO-number

9193587

Call sign

V7FI3

Flag

Marshall Islands

Port of registry

Majuro

GT

6.301 t registered

DWT

Summer: 11.615,77 t

NT

3.549 t registered

Length

117,26 m overall

Breadth

20,00 m moulded

Draught

Summer: 8,76 m

Moulded L x B x D

110,00 x 20,00 x 11,20 m

Registered L x B x D

110,10 x 20,00 x 11,20 m

Freeboard

Summer: 2.460 mm

Depth

11,20 m moulded

Speed

13,0 knots

Built

1999

Keel laid

05.12.1998

Launch date

20.02.1999

Date of completion

01.06.1999

Builder

Fukuoka Shipbuilding Co., Ltd.

Fukuoka
Japan

Yard number

1207

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 7 cylinder 370 x 880 mm diesel engine - 3.603 kW / 5.280 hp at 210,0 rpm

Manufacturer: Akasaka Diesels Ltd.

Propeller shaft

1x Sea water lubrication shaft

Diameter: 305 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 10,75 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.749 kVA

Number of tanks

20

Segregations

20

Total cargo tank capacity

12.291 m³

Tank capacities

Fuel oil: 814 m³

Fresh water: 371 m²

water ballast: 3.316 m³

Manager

Fleet Management Hong Kong Limited

Hong Kong
China

Owner

Ace Tankers CV

Strawinskylaan 1057, Tower D, Level 10

1077 XX Amsterdam
The Netherlands

Registered owner

Chemstar Shipping S.A

Latest data adjustment

05 May 2014
