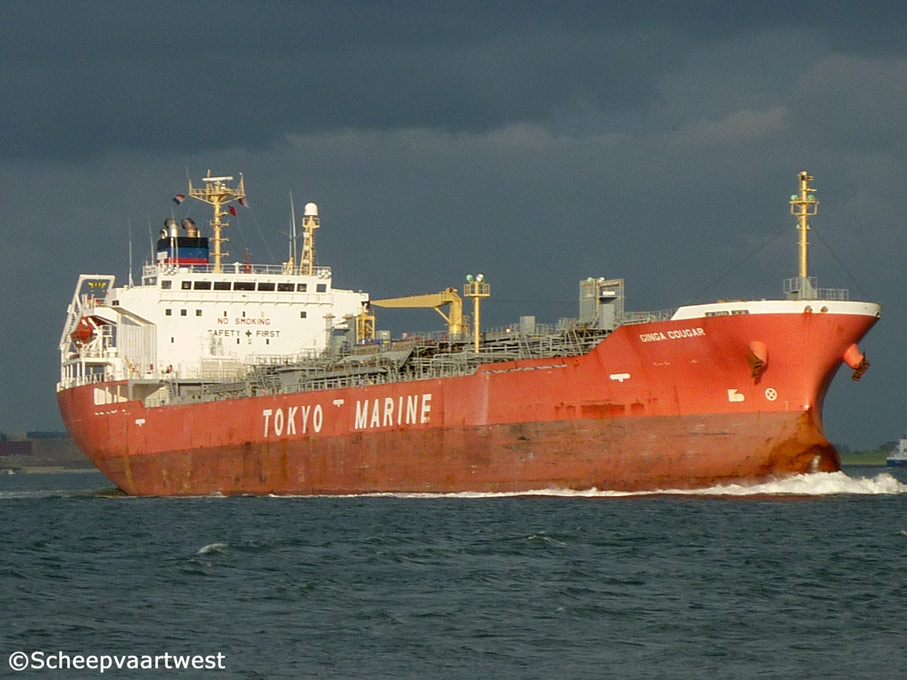

Ginga Cougar 02
Westerschelde 13 July 2012

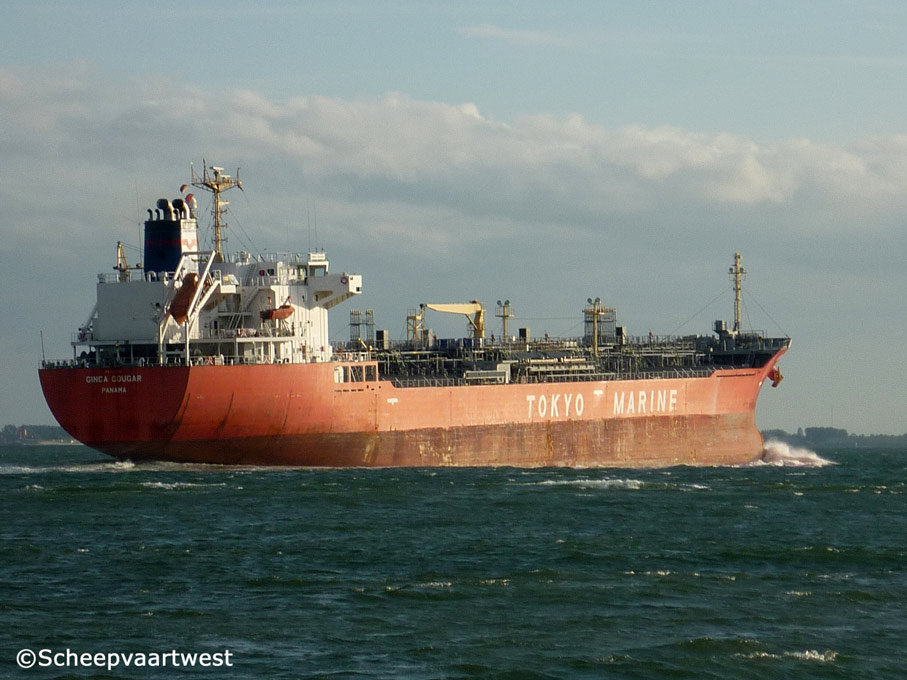

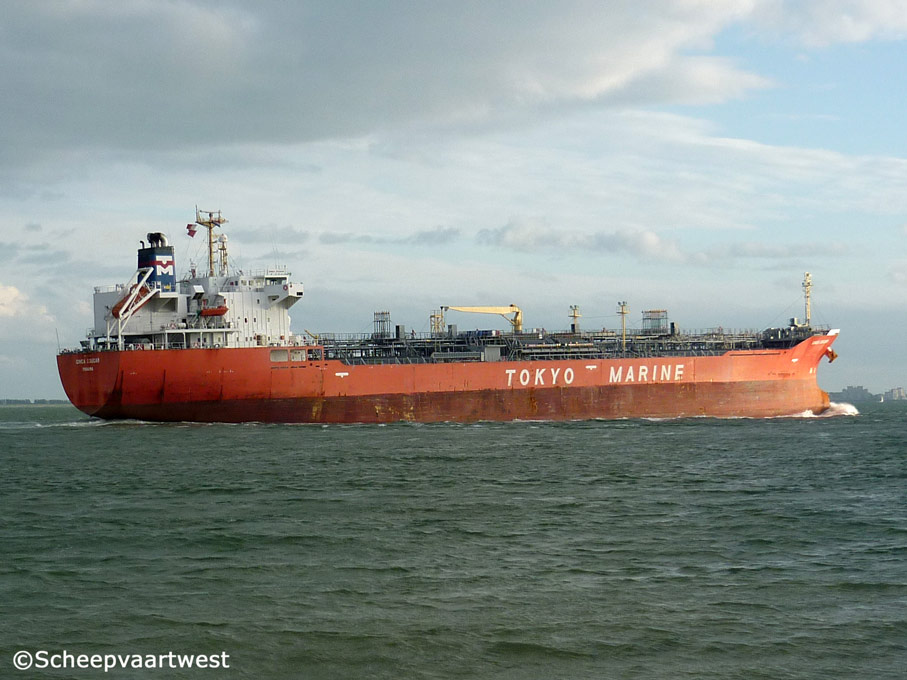

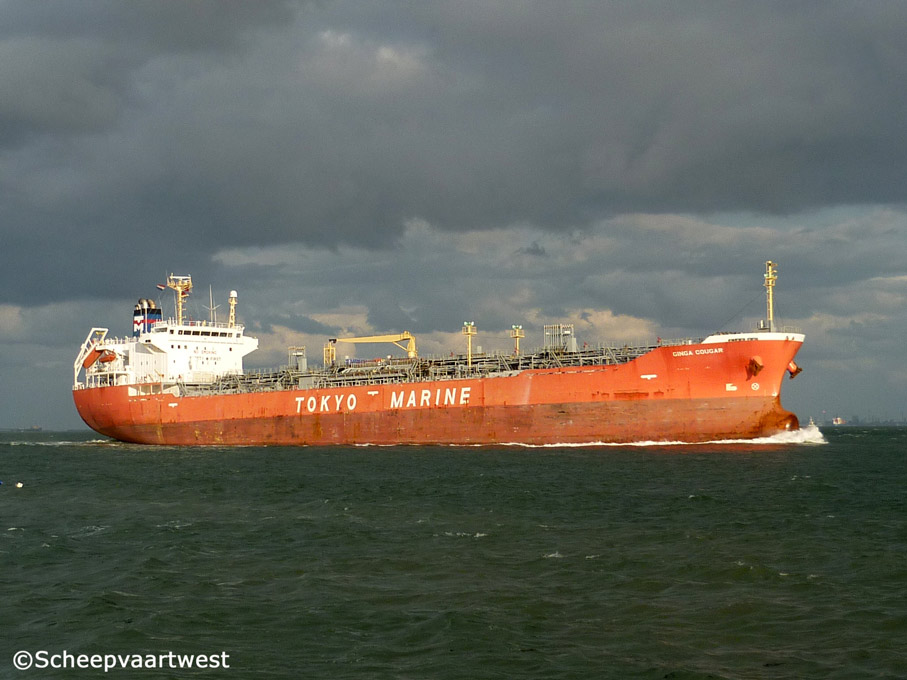

Ginga Cougar 07   Ginga Cougar 08   Ginga Cougar 10
Westerschelde 13/07/12 Westerschelde 13/07/12 Westerschelde 13/07/12


Name

GINGA COUGAR

Type

Oil / Molasses / Chemical tanker

IMO-number

9321861

Call sign

3EAG7

Flag

Republic of Panama

Port of registry

Panama City

GT

16.232 t registered

DWT

Summer: 26.180 t

NT

7.983 t registered

Length

159,98 m overall

Breadth

26,80 m moulded

Draught

Summer: 10,08 m

Moulded L x B x D

154,00 x 26,80 x 14,20 m

Registered L x B x D

154,31 x 26,80 x 14,20 m

Freeboard

4.165 mm

Depth

14,20 m moulded

Speed

16,2 knots

Built

2005

Keel laid

04.06.2004

Launch date

13.10.2004

Date of completion

09.03.2005

Builder

Shin Kurushima Hiroshima Dockyard
Higashihiroshima
Japan

Yard number

5317

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi-Kobe Hatsudoki 6UEC52LA - 2 stroke single acting 6 cylinder 520 x1.600 mm diesel engine - 7.080 kW at 133,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propeller shaft

1x Oil lubrication shaft without monotoring device

Diameter: 445 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 16,06 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Bow thruster

1x 707 kW

Number of cargo tanks

28

Liquid tank capacity

29.631 m³

Tank capacities

Fuel oil: 1.248 m³

Fresh water: 531 m³

Water ballast: 10.807 m³

Manager

Unix Line Pte., Ltd.

18-01, SGX Centre 2, 4, Shenton Way
Republic of Singapore

Operator

Tokyo Marine

Registered owner

Panther Navigation Inc.

18-01, SGX Centre 2

Shenton Way

Republic of Singapore

Last data update

15 January 2014
