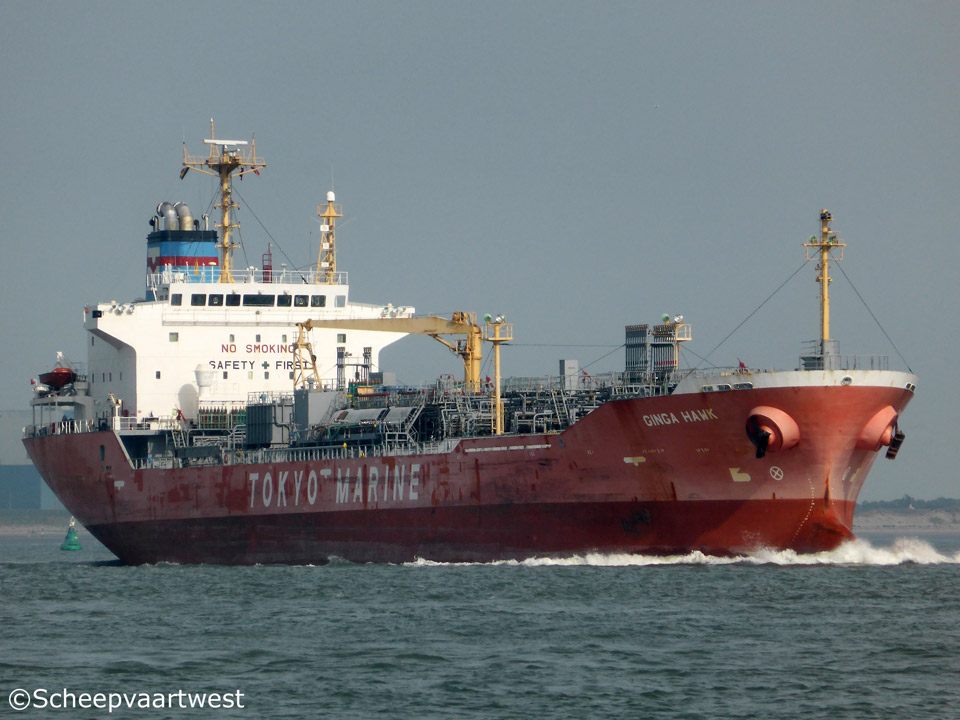

Westerschelde 10 August 2015 |
 |

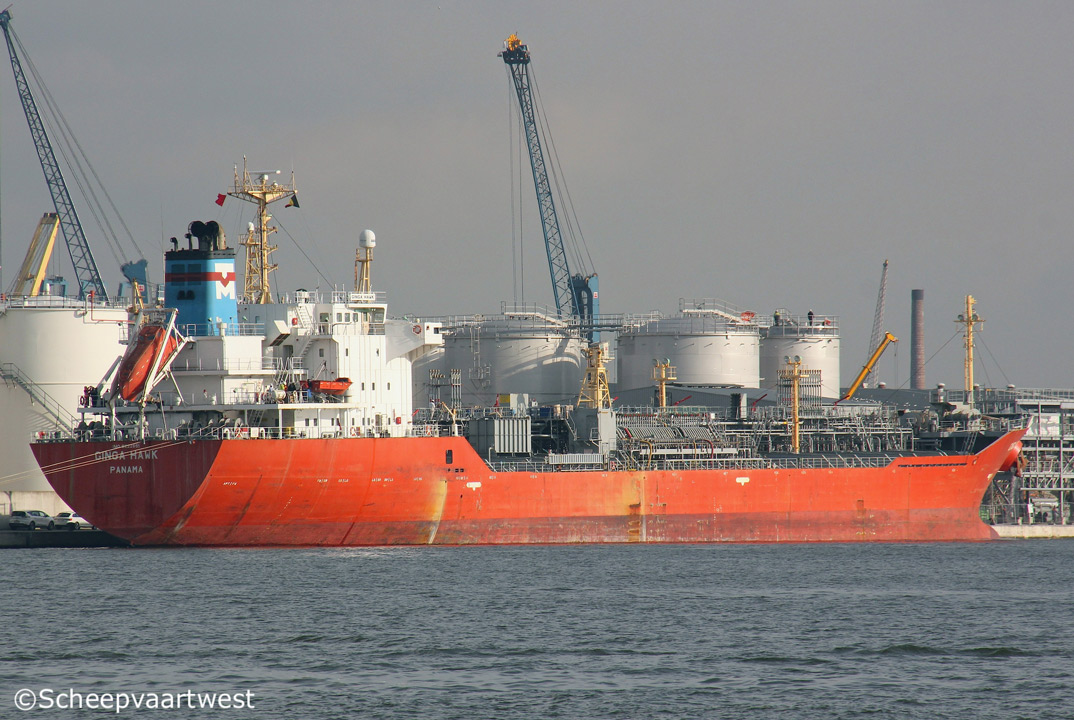

| Antwerpen 30/01/18 |
|
Name |
GINGA HAWK |
|
Type |
Oil/Molasses/Chemical |
|
IMO-number |
9222651 |
|
Call sign |
H3RG |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
12.044 t registered |
|
DWT |
Summer: 19.998 t |
|
NT |
6.206 t registered Panama: 10.128 t Suez: 10.966,15 t |
|
Length |
147,83 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,60 m |
|
Moulded L x B x D |
141,00 x 24,20 x 12,80 m |
|
Registered L x B x D |
141,21 x 24,20 x 12,80 m |
|
Freeboard |
Summer: 3.238 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Max.: 16,4 knots Service: 15,5 knots |
|
Built |
2000 |
|
Keel laid |
18.02.2000 |
|
Launch date |
05.06.2000 |
|
Date of completion |
10.11.2000 |
|
Builder |
Shin Kurushima Hiroshima Dockyard Co., Ltd. Japan |
|
Yard number |
5070 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Kobe Diesel/Mitsubishi 6UEC 52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine MCR: 7.060 kW - 9.600 hp at 133 rpm NSR: 8.640 hp at 128 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 440 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary cylindrical water tube type - 9,8 bar Evaporation: 16,05 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Drip-Proof self-ventilating type main diesel generatorsets each 550 kVA - 440 Volt/60Hz |
|
Bow thruster |
1x Electric motor driven with CPP 515 kW / 700 hp at 1.760 rpm |
|
Number of cargo tanks |
28 |
|
Cargo tank capacity |
Liquid: 21.678 m³ |
|
Pumps |
8x Cargo pumps each 330 m³/h 20 x Cargo pumps each 200 m³/h 2x Hydraulic motor driven, Vertical centrifugal ballast pumps each 350 m³/h |
|
Tank cleaning pump |
2x Hydraulic motor driven, vertical centrifugal type 150 m³/h |
|
Tank capacities |
Fuel oil 1.013 m³ Diesel oil: 90 m³ Fresh water: 855 m³ Ballast water: 7.502 m³ |
|
Accommodation |
Officer: 8 |
|
Manager |
Unix Line Pte. Ltd. Republic of Singapore |
|
Operator |
Tokyo Marine Asia Pte. Ltd. |
|
Registered owner |
MOL Chemical Tankers Pte. Ltd. |
|
Latest data adjustment |
17 January 2017 |
