| Zandvliet 18 November 2013 |
 |
| Zandvliet 18/11/13 |
|
Name |

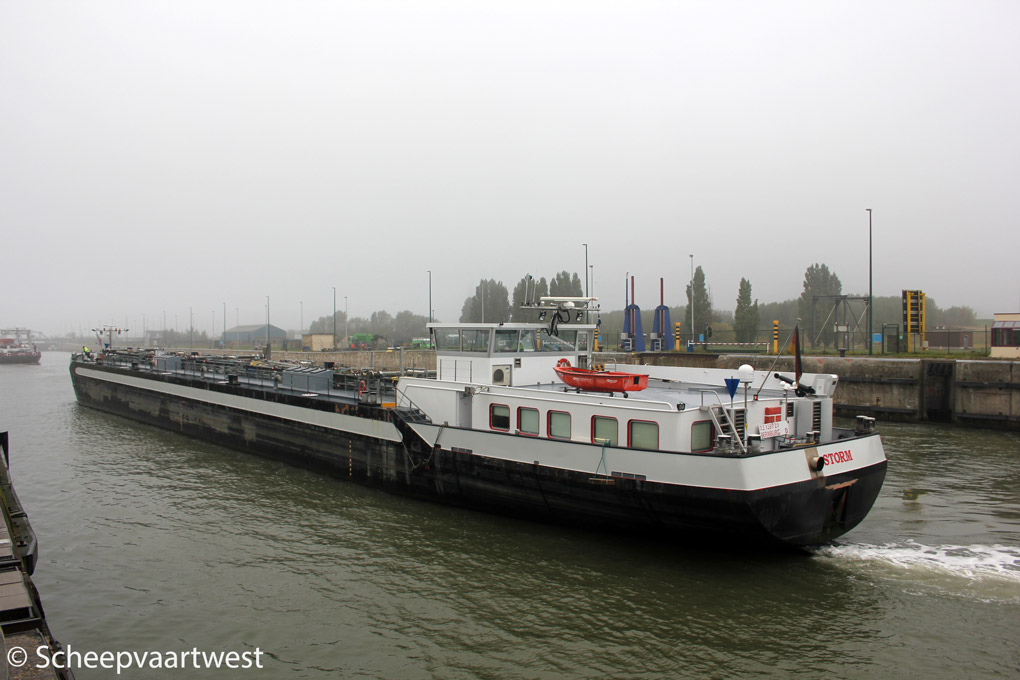

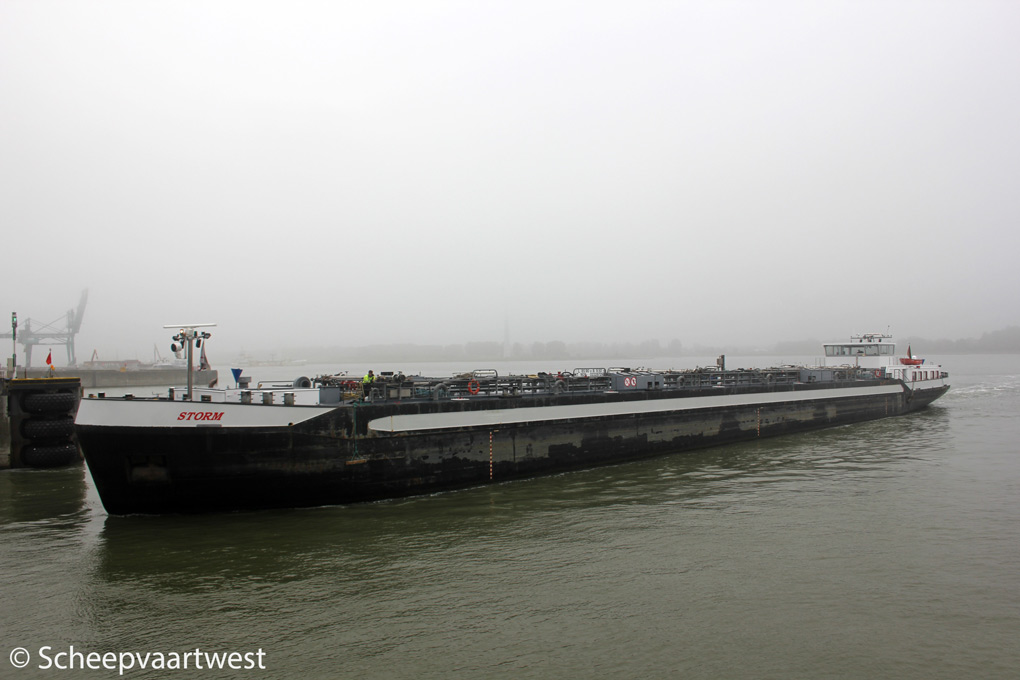

STORM |
|
Type |
Inland tanker |
|
ENI-number |
02328729 |
|
Call sign |
DB3992 |
|
Flag |
Germany |
|
Port of registry |
Bernburg |
|
Tonnage |
1.674 t |
|
Length |
85,95 m overall 84,05 m between perpendiculars |
|
Breadth |
9,46 m |
|
Draught |
3,20 m |
|
Depth |
4,75 m |
|
Built |
2007 |
|
Builder casco
|
Kozielska Stocznia Rzeczna Sp. z o.o. Yard number: 1104 |
|
Builder completion |
Machinefabriek A.A. Vink |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MTU 8V 4000 M60 - 4 stroke 8 cylinder 165 x 190 mm diesel engine - 880 kW / 1.197pk at 1.800 rpm Built: 2006 Builder: MTU Friedrichshafen GmbH, Friedrichshafen - Germany |
|
Gearbox |
1x ZF Masson W4400 reduction 5.542:1 |
|
Propellers |
1x Screw propeller solid at 327 rpm |
|
Electric installations |
Power Voltage: 380 V Lighting Voltage: 220 V Frequency: 50 Hz |
|
Generators |
1x Diesel generatorset 121 kVA - 97 kW - 132 hp |
|
Bow thruster |
1x Cummins - van Wijk - 510 hp |
|
Tank capacity |
1.802 m³ |
|
Pumps |
5x pumps each 100 m³/h |
|
Owner |
C. Philipse |
|
Previous names & owners |
20047 -2012 Storm - Scheepvaartonderneming M. Glebbeek, Aalsmeer - The Netherlands |
|
Last update |
21 November 2013 |
