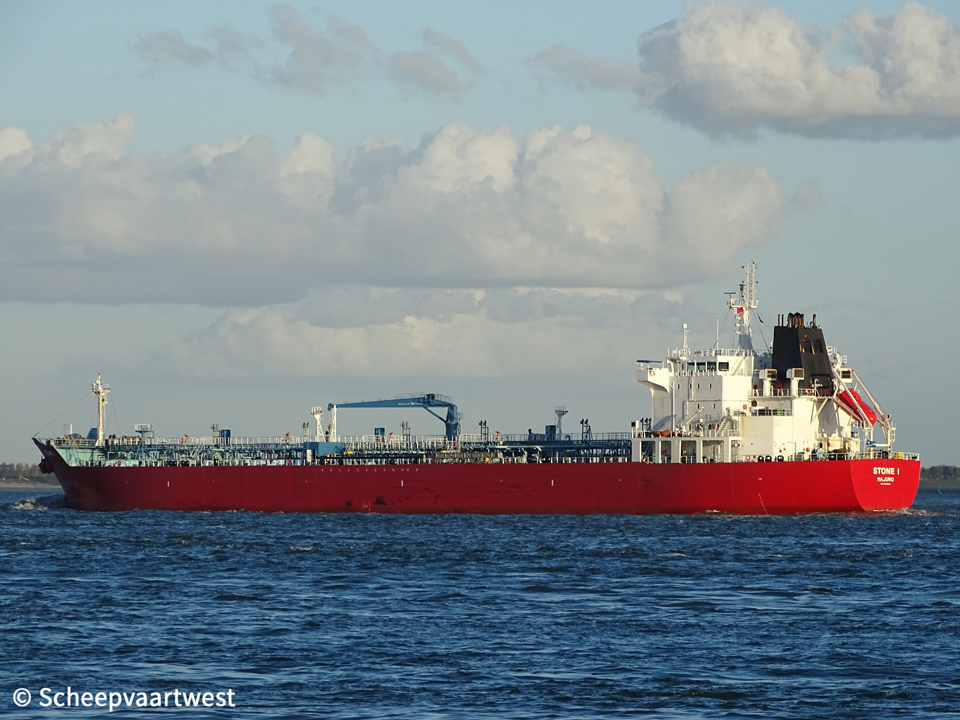

Westerschelde 24 September 2018 |
 |

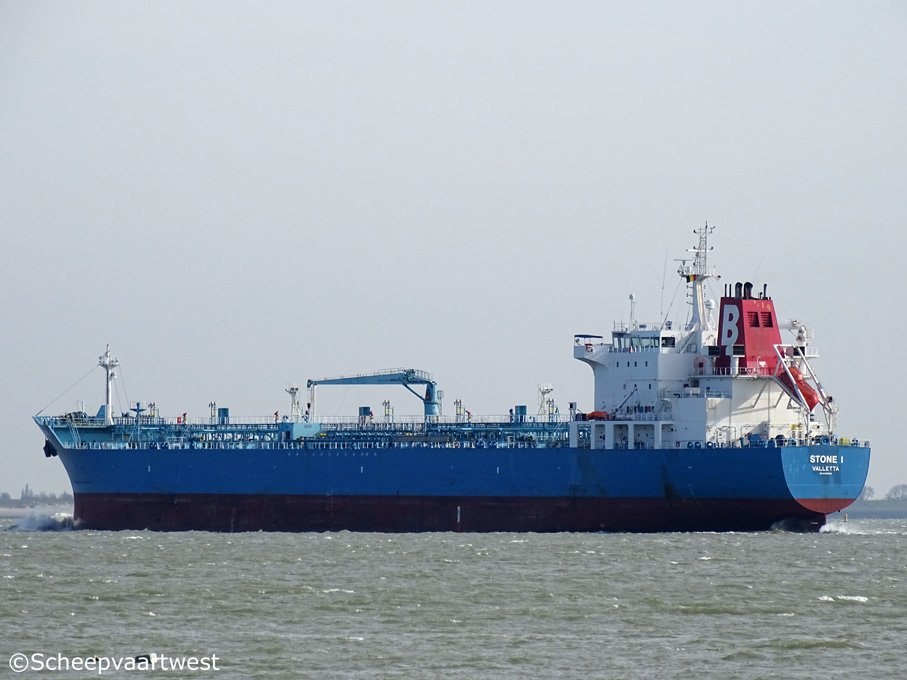

| Westerschelde 28/02/16 |
|
Name |
STONE I |
|
Previous names |
2008 - 08/2013 Rock |
|
Type |
Tanker for oil and chemical tanker - Handysize |
|
IMO-number |
9380582 |
|
Call sign |
V7HX5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flag |
2008 - 2017 Malta, Valletta- Call sign: 9HHM9 |
|
GT |
23.248 t registered Suez: 24.753,19 t |
|
DWT |
Summer: 37.889 t |
|
NT |
9.915 t registered Panama: 19.366 t Suez: 20.958,91 t |
|
Length |
184,32 m overall |
|
Breadth |
27,40 m |
|
Draught |
11,51 m |
|
Moulded L x B x D |
176,00 x 27,40 x 17,20 m |
|
Registered L x B x D |
176,46 x 27,40 x 17,20 m |
|
Keel to mast end |
46,87 m |
|
Freeboard |
5.713 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Service: 14,5 knots Max: 15,7 knots |
|
Built |
2008 |
|
Keel laid |
31/12/2007 |
|
Launch date |
09/01/2008 |
|
Date of completion |
16/05/2008 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2031 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 11 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C MK7 - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 570 mm |
|
Propellers |
1x Fixed pitch mono-block propeller Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired - 9,0 bar Manufacturer: Kang Rim Ind. Co., Ltd.- South Korea |
|
Generators |
3x Yanmar 6N21AL-EV diesel generatorsets each 900 kW Builder: Yanmar Co., Ltd. Amagasaki Plant |
|
Emergency generator |
1 x Cummins NT-855-D(M) diesel generatorset |
|
Bow thruster |
1x Kawasaki type KT-88B3F - 900 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
42.686,2 m³ |
|
Number of slop tanks |
2 |
|
Number of pumps |
10x Framo Deepwell cargo pumps each 500 m³/h 2x Framo Deepwell cargo pumps each 300 m³/h 2x Framo Deepwell cargo pumps each 200 m³/h 2x Ballast pumps each 750 m³/h |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Lubricating oil: 8 Sludge: 6 Fresh water: 5 Diesel oil: 5 Chain: 2 Hydraulic oil: 1 Waste water: 1 Chemical: 1 |
|
Tank capacities 100% |
Diesel oil: 203 m³ Freshwater: 272 m³ Fuel oil: 1.175 m³ Hydraulic oil: 17,2 m³ Lube oil: 95,2 m³ Tank ballast: 17.877,8 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Provision crane - SWL 2,0 t Manufacture: Dongnam Marine Crane Co., Ltd. 1x Hose handling crane - SWL 10,0 t Manufacture: Oriental Precision & Engineering Co., Ltd. |
|
Crew size |
25 |
|
Commercial manager |
Sokana Shipping & Trading Ltd. 1, Gorham Island Westport CT 06880-3217 USA |
|
ISM manager |
Interunity Management Corporation SA 2, Eptanisou Street, Chalandri 152 31 Athens Greece |
|
Previous manager |
Genel Denizcilik Nakliyati A.S. Zenith Gemi Isletmeciligi A.S., Istanbul - Turkey |
|
Registered owner |
Stone Shipping LLC Care of Sokana Shipping & Trading Ltd. 1, Gorham Island Westport CT 06880-3217 USA |
|
Previous owners |
2008 - 2008 Geden Lines 2008 - 2013 Rock Shipping Ltd. |
|
Latest data adjustment |
08 August 2022 |
