Westerschelde 10 August 2015 |
|
Name |

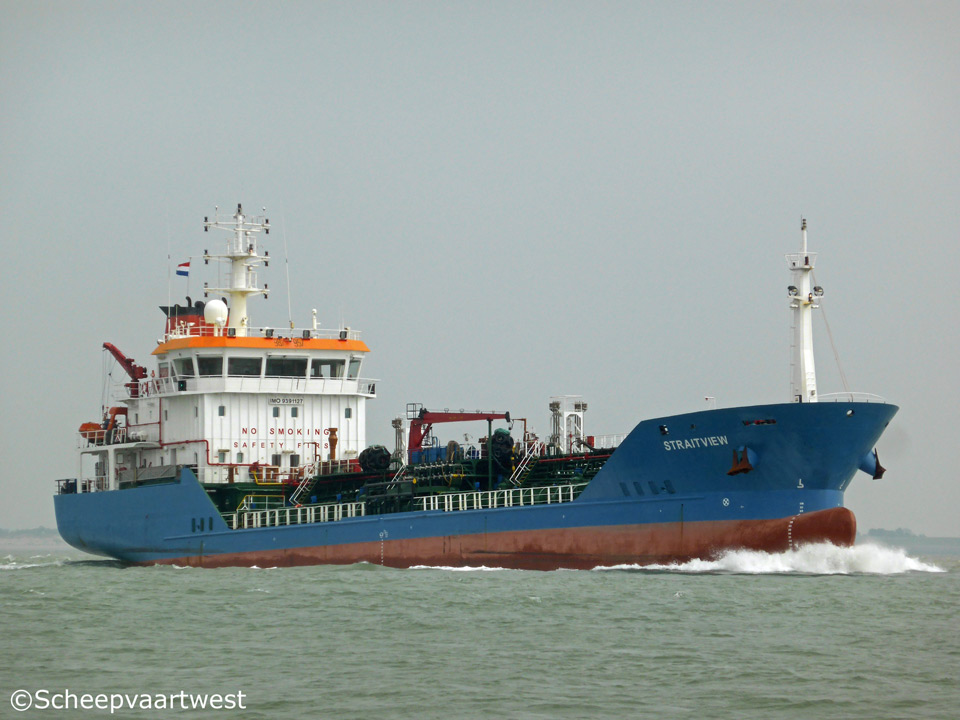

STRAITVIEW |
|
Previous names |
2007 Build as: Sureyya Vardal |
|
Type |
Chemical tanker |
|
IMO-number |
9391127 |
|
Call sign |
9HBX9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
2.222 t registered Suez: 2.444,03 t |
|
DWT |
Summer: 3.550 t |
|
NT |
1.064 t registered Suez: 2.024,42 t |
|
Length |
88,31 m overall 82,25 m between perpendiculars |
|
Breadth |
13,50 m moulded |
|
Draught |
5,80 m |
|
Keel to mast |
26,50 m |
|
Freeboard |
968 mm |
|
Depth |
6,50 m moulded |
|
Speed |
13,5 knots |
|
Built |
2007 |
|
Keel laid |
15.05.2006 |
|
Launch date |
08.04.2007 |
|
Delivery date |
31.08.2007 |
|
Builder |
Dentas Shipbuilding & Repair (Dentas Gemi Insa Ve Onarim Sanayi A.S) |
|
Yard number |
079 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 15 Water tight 34 Oil tight: 5 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine 1.499 kW / 2.037 hp at 750 rpm Manufacturer: Caterpillar Motoren GmbH & Co., KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHR 47,90 m² -10,0 bar |
|
Shaft generator |
1x Leroy Somer 535 kW / 669 kVA |
|
Generators |
2x Leroy Somer main diesel generatorsets each 420 kVA - 336 kW - 469 hp |
|
Emergency generator |
1x Diesel generatorset 138 kVA - 110 kW - 149 hp |
|
Bow thruster |
200 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 100% |
3.827,56 m³ |
|
Number of slop tanks |
1 |
|
Slop tank capacity 98% |
86,55 m³ |
|
Segregation |
12 |
|
Pumps |
12x 100 m³/h each |
|
Manifolds |
Bow centre manifold: 41,80 m |
|
Number of tanks |
Ballast: 9 Sludge: 6 Fuel oil: 5 Diesel oil: 4 Fresh water: 2 Waste water: 2 Lubricating oil: 2 Thermal oil: 1 Chain: 1 |
|
Tank capacities 100% |
Diesel Oil: 35,58 m³ / 32,02 t Freshwater: 85,87 m³ Fuel Oil: 159,53 m³ / 156,33 t Lube Oil: 5,58 m³ / 5,02 t Tank Ballast: 1.354,33 m³ / 1.388,18 t |
|
Lifting equipment |
1x Crane - SWL 2,5 t |
|
Crew |
12 |
|
Manager |
Arcturus SP. Z O.O. |
|
Registered owner |
Sedina Tankers Limited |
|
Latest data adjustment |
20 January 2017 |
