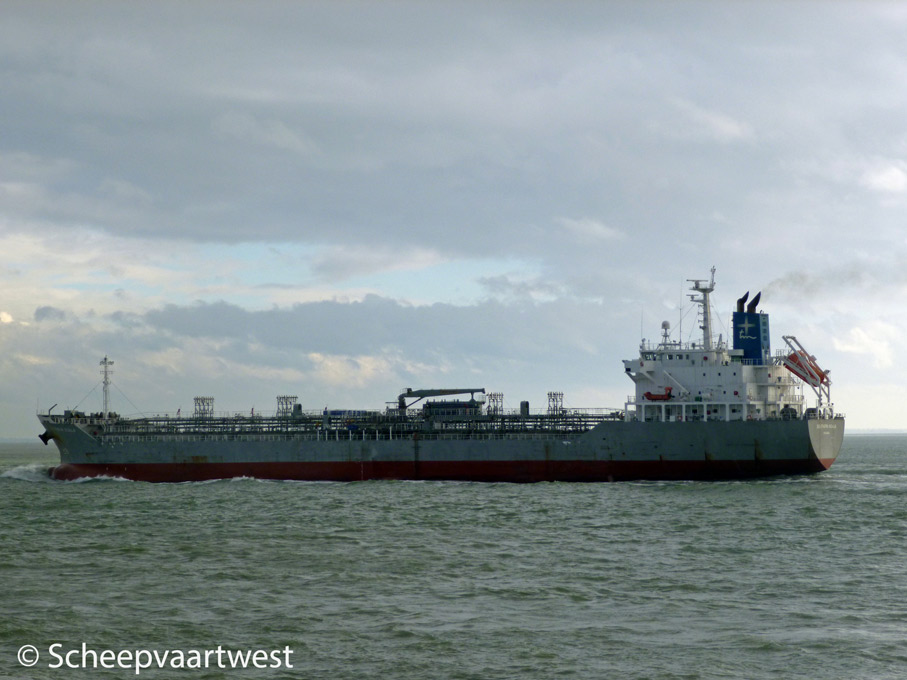

Southern Koala 01
Westerschelde 04 November 2012


Name

SOUTHERN KOALA

Type

Oil / Chemical carrier

IMO-number

9577185

Call sign

3EXJ3

Flag

Republic of Panama

Port of registry

Panama City

GT

12.197 t

DWT

21.290 t

NT

6.534 t

Length

149,00 m overall

Breadth

24,00 m

Draught

5,72 m

Moulded L x B x D

140,00 x 24,00 x 12,80 m

Registered L x B x D

140,03 x 24,00 x 12,80 m

Freeboard

3.117 mm

Depth

12,80 m moulded

Speed

Service: 15,12 knots

Built

2010

Keel laid

19.11.2009

Launch date

02.03.2010

Date of completion

02.06.2010

Builder

Asakawa Shipbuilding Co., Ltd.
Imabari
Japan

Yard number

600

Hull material

Steel

Hull type

Double hull

Main engine

1x B&W - 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine - 6.150 kW at 136,0 rpm

Manufacturer: Hitachi Zosen Corporation Innoshima Works

Propeller shaft

1x sea water lubrication shaft

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 15,87 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Main diesel generatorsets 2.165 kVA

Number of cargo tanks

10

Segregations

20

Cargo capacity 100%

Tank 1P: 1.059,676 m³

Tank 1S: 1.075,444 m³

Tank 2P: 1.297,656 m³

Tank 2S: 1.313,821 m³

Tank 3P: 645,051 m³

Tank 3S: 661,308 m³

Tank 4P: 1.297,679 m³

Tank 4S: 1.311,567 m³

Tank 5P: 1.298,220 m³

Tank 5S: 1.311,208 m³

Tank 6P: 1.297,679 m³

Tank 6S: 1.312,100 m³

Tank 7P: 1.297,287 m³

Tank 7S: 1.310,270 m³

Tank 8P: 646,959 m³

Tank 8S: 663,129 m³

Tank 9P: 1.301,470 m³

Tank 9S: 1.316,399 m³

Tank 10P: 1.068,190 m³

Tank 10S: 1.067,867 m³

Total: 21.891,978 m³

Cargo oil pumps

10x Hydraulic submerged pumps each 300 m³/h

10x Hydraulic submerged pumps each 200 m³/h

1x Portable pump - 70 m³/h

2x Tank cleaning pumps each 120 m³/h

Tank capacities

Fuel oil: 1.203 m³

Fresh water: 332 m³

Water ballast: 6.720 m³

Manager

Southern Shipping Pte., Ltd.

Registered owner

Southern Dragon Chemical S.A.

Last update

25 May 2013
