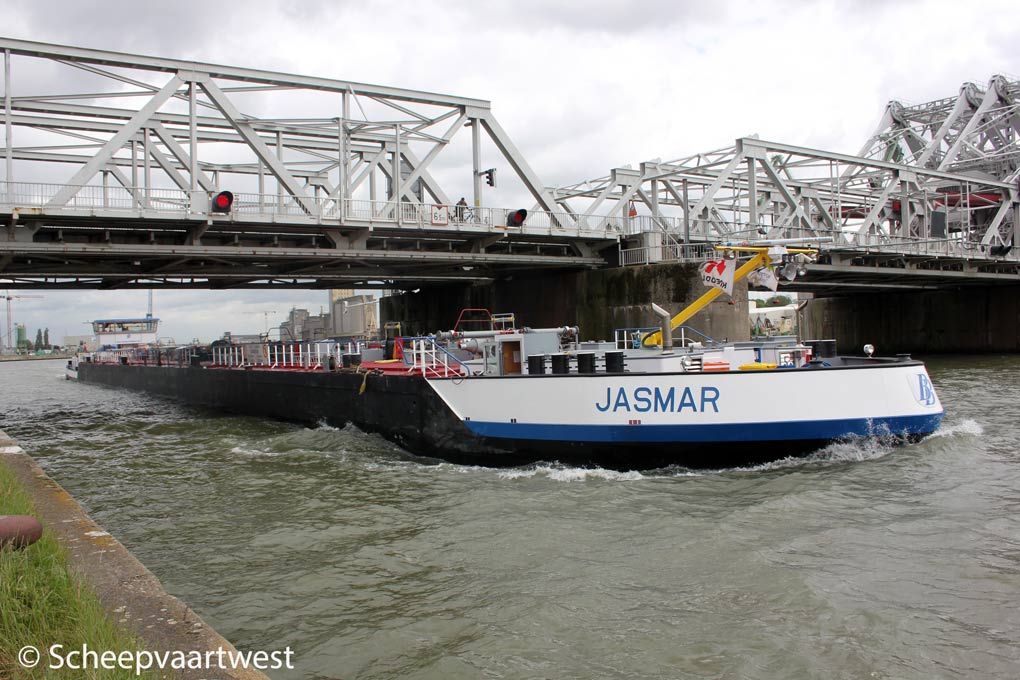

Jasmar 01
Antwerpen 22 May 2013

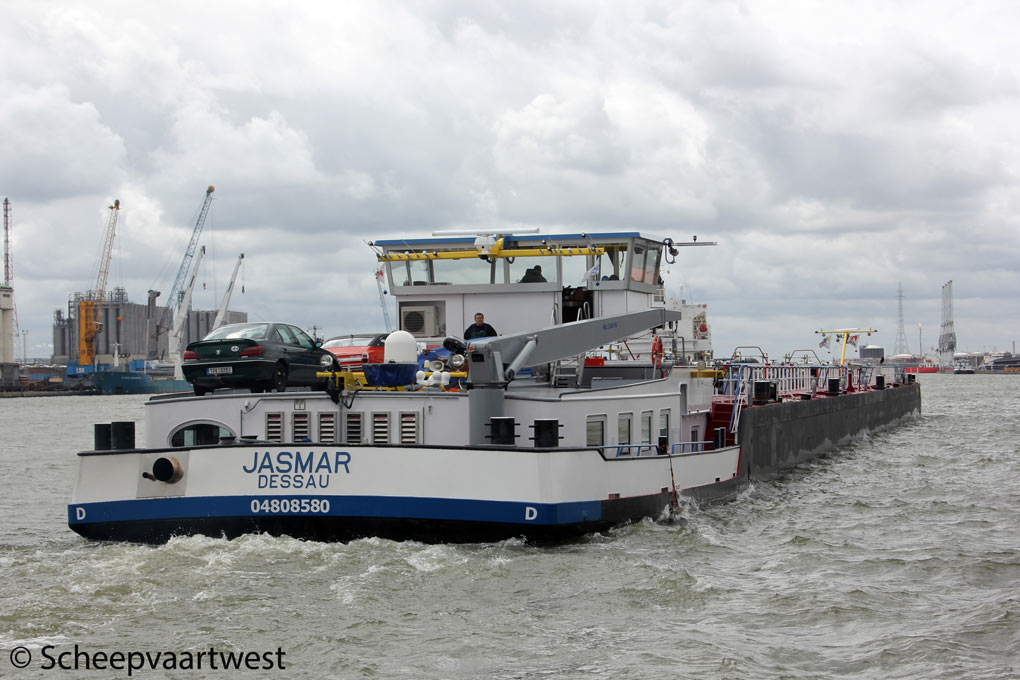

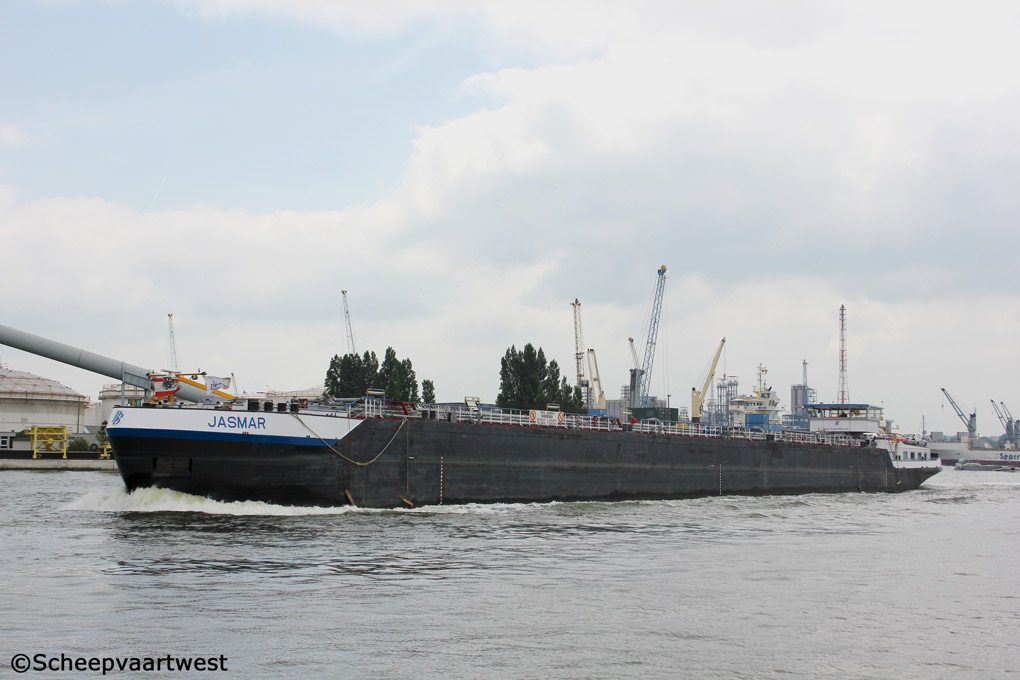

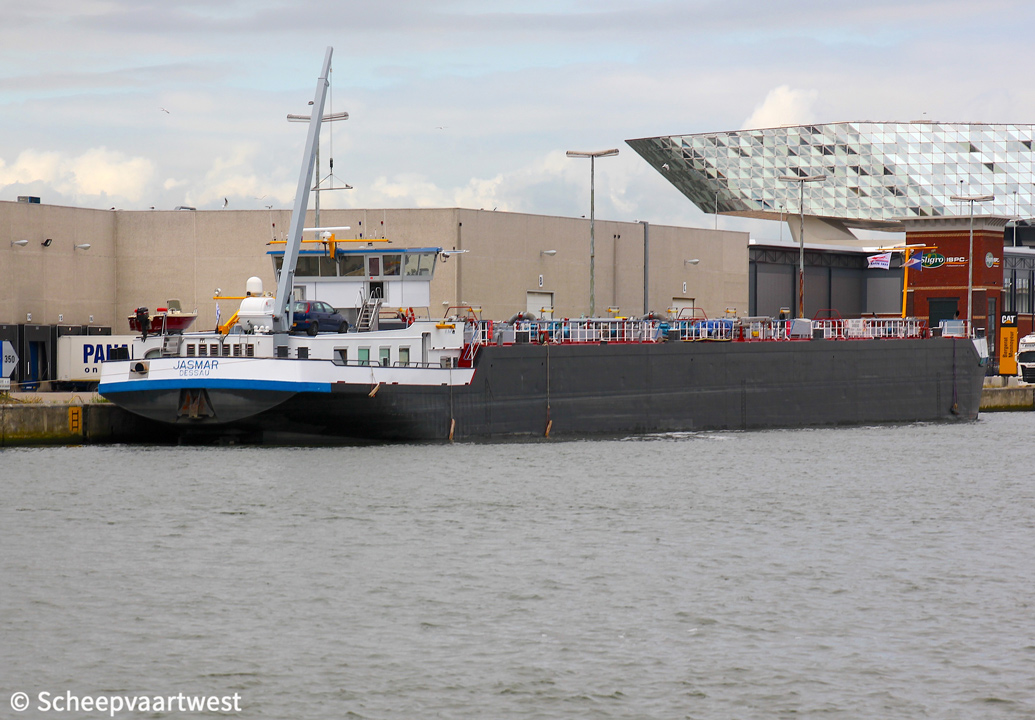

Jasmar 02   Jasmar 03   Jasmar 05
Antwerpen 22/05/13 Antwerpen 30/05/14   Antwerpen 14/07/19



Name

JASMAR

Type

Inland vessel

ENI-number

04808580

Call sign

DG2190

Flag

Germany

Port of registry

Dessau

Tonnage

2.282 t

Length

104,90 m

Breadth

10,04 m

Draught

3,40 m

Depth

5,40 m

Built

2011

Builder

Groningen Shipyard

Waterhuizen

The Netherlands

Hull material

Steel

Main engine

1x Mitsubishi S 12 R-C2MPTK - 1.278 hp / 940 kW at 1.600 rpm

Propellers

1x 5-Blades Promarin propeller diameter 1.700 mm with nozzle Van de Giessen Optima diameter 1.714 mm

Generators

1x Cummins QSX 15C diesel engine coupled with Marathon 572 PSL 4028 generator 450 kVA

1x John Deere 6068 HFU72 diesel engine coupled with Marathon 431 PSL 6202 generator 127 kVA

1x John Deere 4045 TFU70 diesel engine coupled with Marathon 362 CSL 1604 generator 63 kVA

Bow thruster

1x Cummins - Verhaar Omega-Jet type 03100-4k- 383 hp / 282 kW at 1.780 rpm

Cargo pumps

2x Bornemann type EPS500 - 500 m³/h powered by an electro engine 132 kW each

Lifting equipment

1x Car crane - SWL 2.500 kg

Operator

Bout Tankschiffahrt KG

Markheidenfeld

Germany

Owner

Brant Bout

Latest data adjustment

16 January 2015
