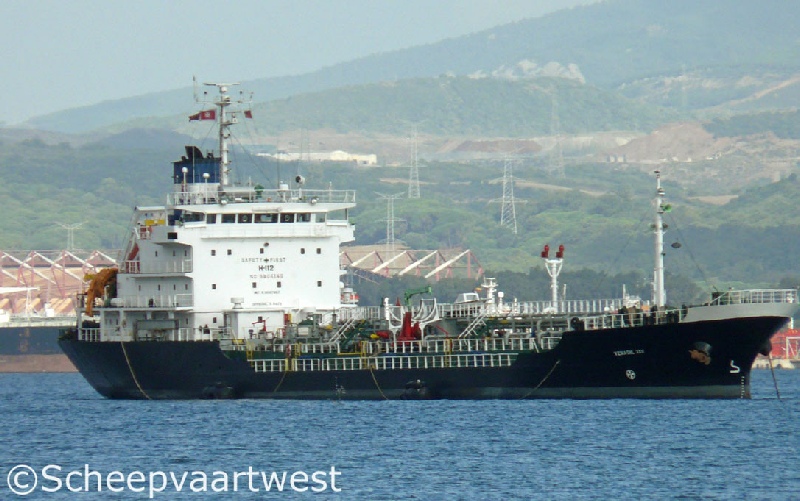

| Gibraltar 21 September 2011 |
|
Name |
VEMAOIL XXV |
|
Previous names |
1993 - 06.11.2003 Koyo Maru |
|
Type |
Oil carrier - Port bunkering and water tankers |
|
IMO-number |
9087867 |
|
Call sign |
9HSA7 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.586 t |
|
DWT |
5.191 t |
|
NT |
1.538 t |
|
Length |
104,70 m overall |
|
Breadth |
15,00 m |
|
Draught |
6,696 m |
|
Moulded L x B x D |
97,00 x 15,40 x 8,00 m |
|
Registered L x B x D |
97,92 x 15,40 x 8,00 m |
|
Keel to masthead |
28,40 m |
|
Freeboard |
Summer: 1.332 mm |
|
Depth |
8,00 m moulded |
|
Speed |
Trial: 13,9 knots |
|
Built |
1993 |
|
Keel laid |
31.08.1993 |
|
Launch date |
20.10.1993 |
|
Date of completion |
17.12.1993 |
|
Date of conversion |
11.12.2003 |
|
Builder |
Kurinoura Dockyard & Shipbuilding |
|
Yard number |
312 |
|
Hull type |
Double hull |
|
Main engine |
1x Akasaka - 4 stroke single acting 6 cylinder 450 x 880 mm diesel engine - 2.942 kW at 210,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Number of propellers |
1x Controllable pitch |
|
Propeller shaft |
1x Sea water lubrication shaft |
|
Boilers |
1x Auxiliary boiler - 4,9 bar Evaporation: 3.767 kW Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Diesel generatorsets - 1.550 kVA |
|
Bow thruster |
1x 480 kW |
|
Number of tanks |
10x Epoxy coated |
|
Tank capacity 98% |
Wings (P & S combined) Number 1: 801,542 m³ Wings (P & S combined) Number 2: 1.419,193 m³ Wings (P & S combined) Number 3: 1.419,195 m³ Wings (P & S combined) Number 4: 1.370,382 m³ Slops tanks: 437,452 m³ |
|
Tank capacity 98% |
5.010,312 m³ ex. slop tanks |
|
Slop tanks cap. 98% |
437,542 m³ |
|
Maximum loading rate |
2.700 m³/h |
|
Cargo pumps |
2x Centrifugal 2.500 m³/h 1x Screw 700 m³/h |
|
Ballast pump |
1x Electric 500 m³/h |
|
Manifolds |
Bow to centre manifold: 51,80 m Stern to centre manifold: 52,90 m Distance bridge front to centre of manifold: 26,60 m Distance between cargo manifold centres: 1.250 mm Distance ships rail to manifold: 1.800 mm Distance manifold to ships side: 2.800 mm Top of rail to centre of manifold: 1.280 mm Distance main deck to centre of manifold: 2.630 mm |
|
Tank capacities |
Fuel oil: 333 m³ Fresh water: 168 m³ Water ballast: 2.152 m³ |
|
Lifting equipment |
2x Cranes - SWL 1,0 t, midship |
|
Manager |
Queensway Navigation |
|
Operator |
Queensway Navigation Co. Ltd. 1, Alexandrou Pantou & Kallirois Str. 176 71 Athens |
|
Owner |
Queensway Navigation |
|
Registered owner |
Sea Ivory Maritime Company Limited Valletta Malta |
