Westerschelde 03 April 2017 |
 |
 |
 |
||
| Westerschelde 03/04/17 | Westerschelde 08/05/15 | Westerschelde 08/05/15 | ||
|
Name |

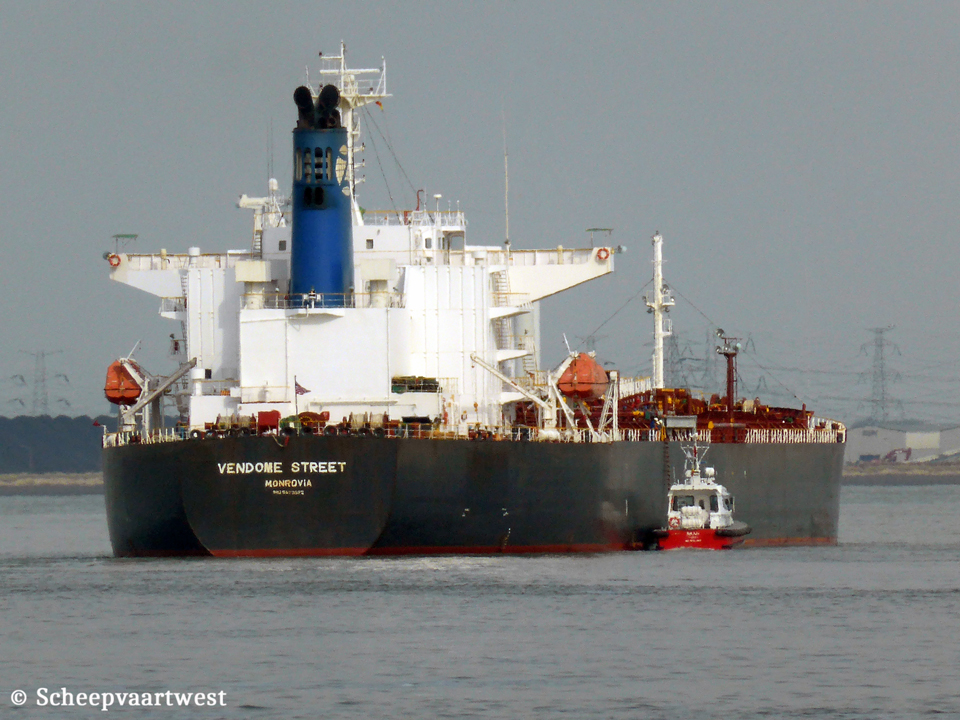

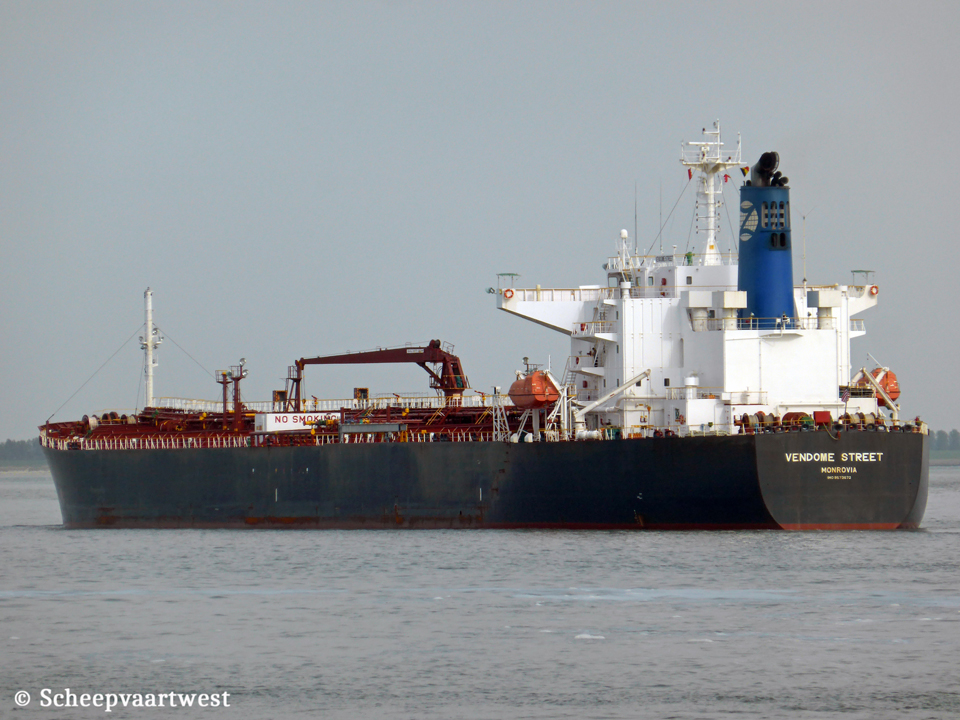

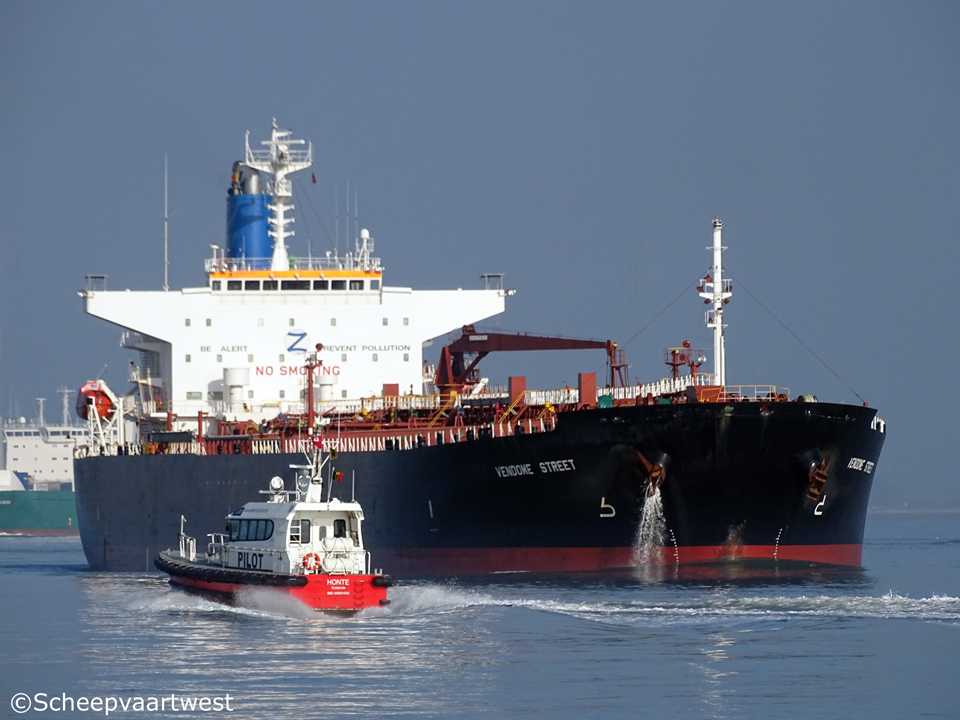

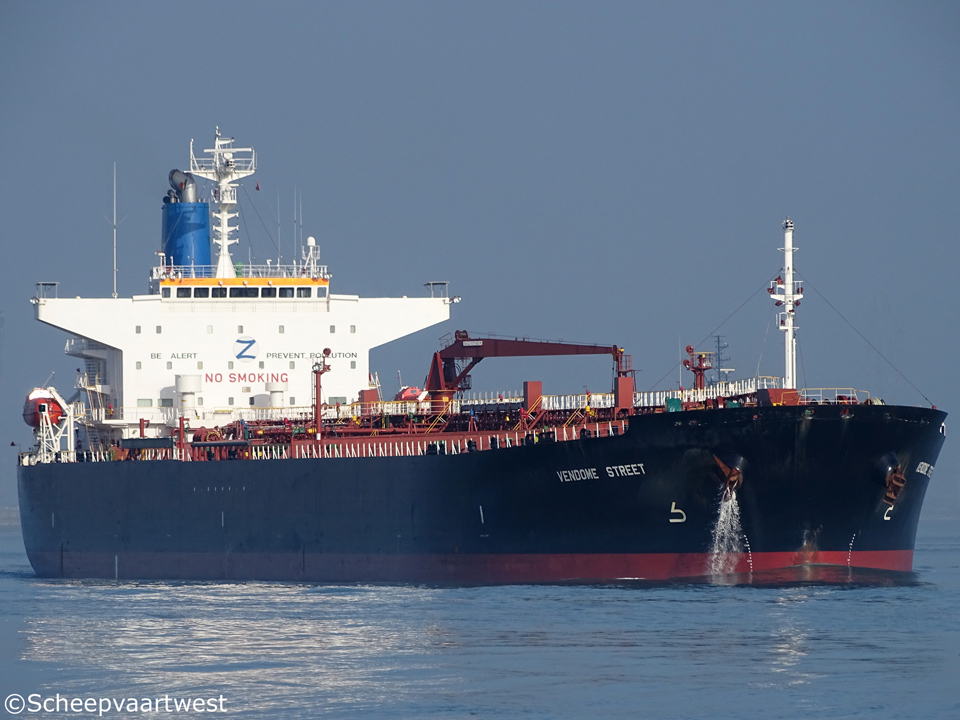

VENDOME STREET |
|
Previous names |
2011 - 11/2013 Pacific Garnet |
|
Type |
Crude and oil products tanker |
|
IMO-number |
9573672 |
|
Call sign |
A8YI6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
28.778 t registered Suez: 30.242,07 t |
|
DWT |
Summer: 47.879 t Winter: 46.517 t |
|
NT |
12.680 t registered Panama: 23.906 t Suez: 27.518,09 t |
|
Displacement |
58.000 t |
|
Light ship |
10.121 t |
|
Length |
179,99 m overall |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 12,62 m |
|
Moulded L x B x D |
172,00 x 32,20 x 19,05 m |
|
Registered L x B x D |
173,47 x 32,20 x 19,05 m |
|
Freeboard |
Summer: 6.462 mm |
|
Depth |
19,05 m moulded |
|
Speed |
15,0 knots |
|
Built |
2011 |
|
Keel laid |
31/05/2010 |
|
Launch date |
28/10/2010 |
|
Date of completion |
08/03/2011 |
|
Builder |
Iwagi Zosen Co., Ltd. Imabari Japan |
|
Yard number |
S-Z291 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsui/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller shaft |
1x Oil Lubrication shaft without monitoring device Diameter: 490 mm |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler - 9,0 MPa 1xExhaust gas economize - 14,0 MPa Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity 100% |
55.076,59 m³ |
|
Tank capacities |
Fuel oil: 2.221,36 m³ Fresh water: 532,50 m³ Ballast: 20.845,59 m³ Diesel oil: 144,33 m³ Lub oil: 20,55 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t Manufacturer: Kyoritsu Kikai Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 0,9 t 1x Provision crane - SWL 2,0 t Manufacturer: Nantong Sekigahara Machinery Manufacturing Co., Ltd. |
|
Manager |
Zodiac Maritime Agencies Ltd. 5th Floor, Portman House 2 Portman Street, London, W1H 6DU United Kingdom |
|
Owner |
Zodiac Maritime Agencies Ltd. London United Kingdom |
|
Registered owner |
Arpege S.A. |
|
Latest data adjustment |
15 August 2024 |
