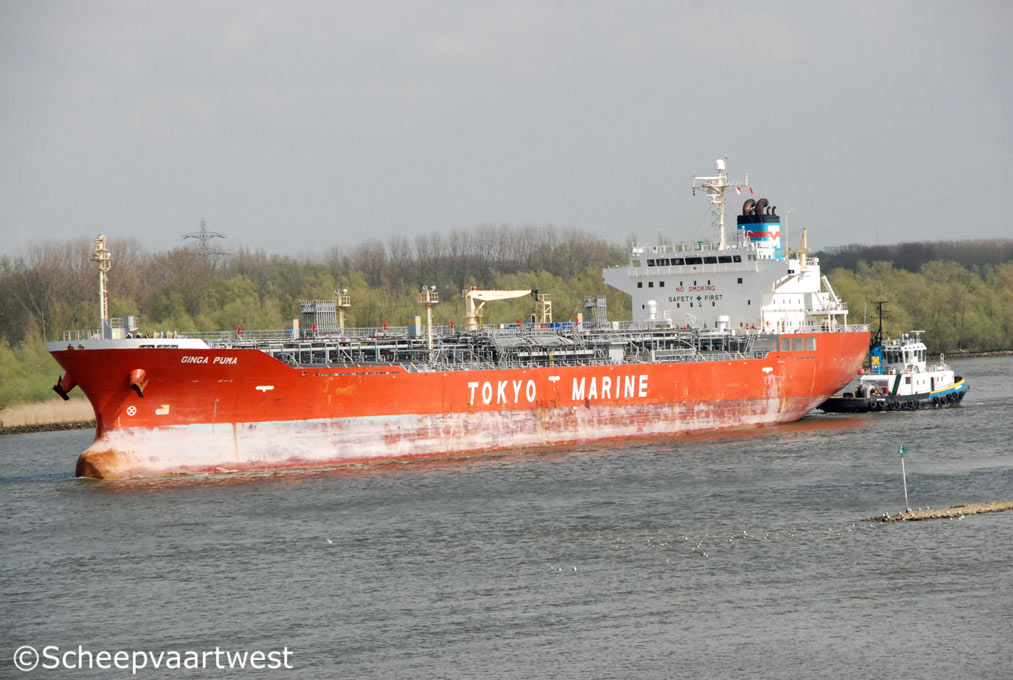

Ginga Puma 02
Spijkenisse 04 April 2011



Name

GINGA PUMA

Type

Oil / Molasses / Chemical tanker

IMO-number

9343780

Call sign

3EFS5

Flag

Republic of Panama

Port of registry

Panama City

GT

16.222 t registered

DWT

Summer: 26.186 t

NT

7.683 t registered

Length

159,98 m

Breadth

26,83 m

Draught

9,88 m

Moulded L x B x D

154,00 x 26,80 x 14,20 m

Registered L x B x D

154,31 x 26,80 x 14,20 m

Freeboard

Summer: 4.165 mm

Speed

16,00 knots

Built

2006

Keel laid

14.12.2004

Launch date

17.01.2006

Date of completion

25.05.2006

Builder

Shin Kurushima Hiroshima Dockyard Co., Ltd.
Higashihiroshima
Japan

Yard number

5366

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 7.080 kW at 133,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propellers

1

Propeller shaft

1x Oil lubrication shaft without monitoring device

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 16,06 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Diesel generatorsets - 2.640 kVA

Cargo tank capacity

Liquid: 29.571 m³

Tank capacities

Fuel oil: 1.248 m³

Fresh water: 531 m³

Water ballast: 10.806 m³

Manager

NT Marine Co., Ltd.
Tokyo
Japan

Operator

Tokyo Marine Europe Ltd.
5th Floor, 5 Lloyd’s Avenue
London EC3N 3AE
United Kingdom

Registered owner

TB Tankship S.A.
