| Antwerpen 05 July 2013 |
|

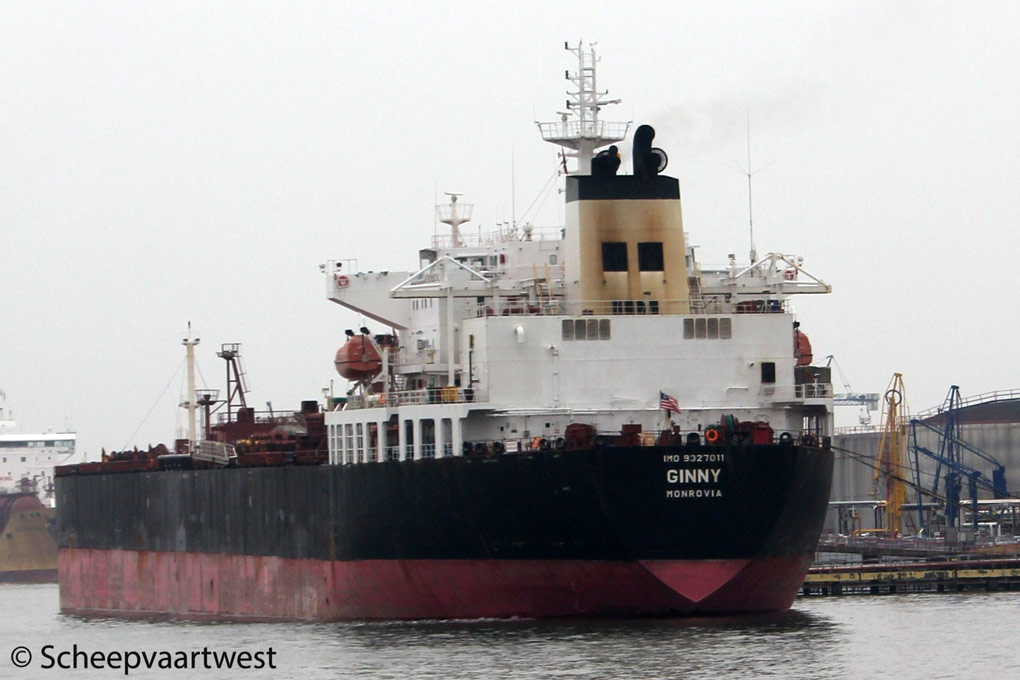

Name |
GINNY |
|
Previous names |
Ginny-H |
|
Type |
Crude oil tanker |
|
IMO-number |
9327011 |
|
Call sign |
A8OF5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
42.010 t registered Suez: 44.162,54 t |
|
DWT |
73.948 t |
|
NT |
22.444 t registered Panama: 34.705 t Suez: 39.750,34 t |
|
Length |
228,60 m overall 219,70 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
14,52 m |
|
Freeboard |
6.315 mm |
|
Depth |
20,80 m moulded |
|
Speed |
15,0 knots |
|
Built |
2008 |
|
Keel laid |
20.12.2004 |
|
Launch date |
21.05.2008 |
|
Date of completion |
18.09.2008 |
|
Builder |
New Century Shipbuilding Co., Ltd. |
|
Yard number |
0307332 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 10 |
|
Main engine |
1x MAN-B&W-HHI 5S60MC-C - 2 stroke 5 cylinder 600 x 2.400 mm diesel engine - 11.300 kW at 105,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1x Wärtsilä CME Zhenjiang propeller Co.; Ltd. |
|
Boilers |
1x Exhaust gas boiler - 10,0 bar 2x Auxiliary oil fired boiler Mission OL 20T/H - 18,0 bar Heating surface: 110 m² each Manufacturer: Aalborg |
|
Generators |
3x Main generatorsets Taiyo FE553B-10 each 900 kW |
|
Number of cargo tanks |
15 |
|
Tank capacity 100% |
86.250,90 m³ / 84.525,89 t |
|
Number of tanks |
Lubricating oil: 15 Ballast: 14 Fuel oil: 9 Fresh water: 6 Diesel oil: 5 Sludge: 4 Waste water: 3 Chain: 2 Portable water: 2 Sea water: 1 Organic compound: 1 |
|
Tank capacities 100% |
Diesel oil: 287,60 m³ / 258,84 t Fresh water: 696,14 m³ Fuel oil: 2.153,89 m³ / 2.110,81 t Lube oil: 142,13 m³ / 127,92 t Tank ballast: 25.305,04 m³ / 25.937,67 t |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,5 t Manufacturer: Jiangyin Xingcheng Marine Machinery 1x Hose handling crane GPH630-15T 25.5M - SWL 15,0 t Manufacturer: TTS Marine (Shanghai) Co.,Ltd. 2x Pneumatic VITTA davit - SWL 1,0 t Manufacturer: Jiangyin Xingcheng Marine Machinery Factory 1x Provision crane - SWL 5,0 t Manufacturer: Jiangyin Xingcheng 1x Pump room pneumatic davit - SWL 1,5 t Manufacturer: Jiangyin Xingcheng Marine Machinery Factory |
|
Operator |
TB Marine Shipmanagement GMBH & Co., KG |
|
Registered owner |
NCS 32/MT Ginny San Edward Shipping Corp. |
|
Last update |
29 July 2013 |
