Nave Cassiopeia 01

Westerschelde 13 Mary 2014

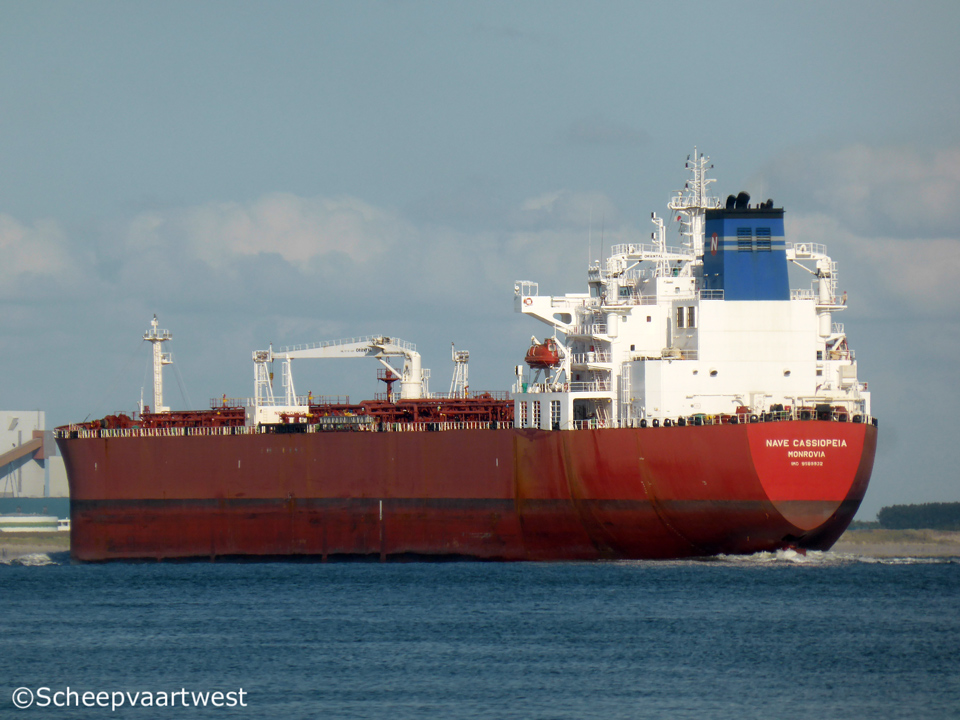

Nave Cassiopeia 02
Westerschelde 09/07/15



Name

NAVE CASSIOPEIA

Type

Oil tanker

IMO-number

9589932

Call sign

D5CT4

Flag

Liberia

Port of registry

Monrovia

GT

42.341 t registered

Suez: 44.438,97 t

DWT

Summer: 74.711,4 t

NT

22.064 t registered

Suez: 39.851,97 t

Length

228,00 m overall

219,00 m between perpendiculars

Breadth

32,24 m

Draught

14,47 m

Freeboard

6.464 mm

Depth

20,90 m moulded

Speed

15,3 knots

Built

2012

Keel laid

23.12.2011

Launch date

01.06.2012

Delivery date

31.08.2012

Builder

Sungdong Shipbuilding & Marine Engineering
Tongyeong
South Korea

Yard number

S3059

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

12

Main engine

1x MAN-B&W-HHI 6S60MC-C8.1 - 6 cylinder 600 x 2.400 mm diesel engine 12.240 kW at 105,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Unfired exhaust gas boiler type Mission XS-2V - 9,0 bar

1x Fired boiler type Mission OL - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Total cargo tank cap. 98%

84.731 m³

Number of tanks

Ballast: 16

Fuel oil: 9

Lubricating oil: 8

Diesel oil: 7

Fresh water: 3

Chain: 2

Sludge: 2

Waste water: 1

Gasoline: 1

Tank capacities

Diesel Oil: 422,6 m³ / 380,34 t

Fuel Oil: 2.290 m³ / 2.244,2 t

Freshwater: 360,2 m²

Lube Oil: 134,2 m³ / 120,78 t

Tank Ballast: 29.364,4 m³ / 30.098.51 t

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 15,0t

2x Provision cranes - SWL 4,0 t each

Manager

Navios Tankers Management Inc.
85, Akti Miaouli street
Piraeus, GR 185 38
Greece

Registered owner

Rhodes Shipping Corporation

Latest data adjustment

22 March 2016
