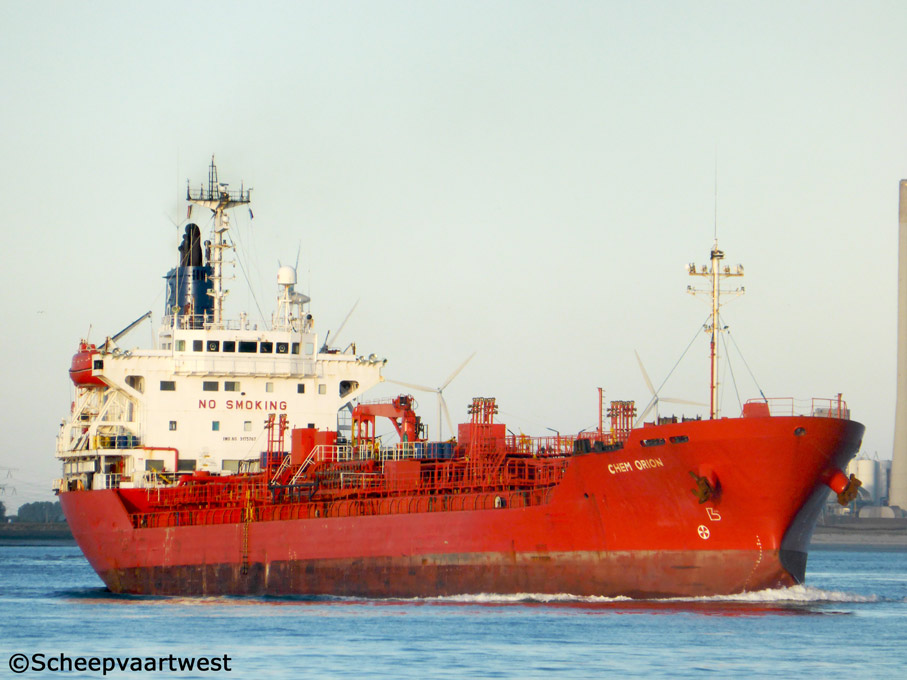

Westerschelde 11 June 2014 |
|
Name |
CHEM ORION |
|
Previous names |
1998 - 12.2004 Oriental Jasmin |
|
Type |
Oil / Molasses / Chemical tanker |
|
IMO-number |
9175767 |
|
Call sign |
V7GZ9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
5.997 t registered |
|
DWT |
Summer: 10.306,6 t |
|
NT |
3.254 t registered Suez: 6.435,47 t Panama: 5.097 t |
|
Light ship |
3.314 t |
|
Length |
125,00 m overall |
|
Breadth |
18,82 m extreme |
|
Draught |
Summer: 7,76 m |
|
Moulded L x B x D |
117,00 x 18,80 x 9,90 m |
|
Registered L x B x D |
117,00 x 18,80 x 9,90 m |
|
Air draft |
29,68 m ballast condition |
|
Freeboard |
2.163 mm |
|
Depth |
9,90 m moulded |
|
Speed |
14,6 knots |
|
Built |
1998 |
|
Keel laid |
11.04.1998 |
|
Launch date |
09.07.1998 |
|
Date of completion |
24.09.1998 |
|
Builder |
Asakawa Shipbuilding Co. Ltd. |
|
Yard number |
405 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 350 x 1.050 mm diesel engine - 3.883 kW at 210,0 rpm Manufacturer: I-Mex Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 320 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler- 9,4 bar Evaporation: 12,70 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Generators - 1.165 kVA |
|
Number of cargo tanks |
20 |
|
Number of segregation |
20 |
|
Cargo liquid capacity 98% |
11.329 m³ |
|
Loading rate |
400 m³/h |
|
Pumps |
20x Pumps Deepwell 4 x 300 m³/h each 4 x 260 m³/h each 12 x 170 m³/h each |
|
Manifolds |
Number of manifolds on each side: 20 Distance bow to centre manifold: 62,50 m Distance deck to centre manifold: 2,18 m |
|
Tank capacities |
Fuel oil: 685 m² Fresh water: 389 m³ Water ballast: 2.996 m³ |
|
Manager |
Bernhard Schulte Shipmanagement (Cyprus) Company Ltd. |
|
Registered owner |
Chem Orion S.A. |
|
Latest data adjustment |
15 July 2014 |
