| Westerschelde 09 May 2017 |
|
Name |

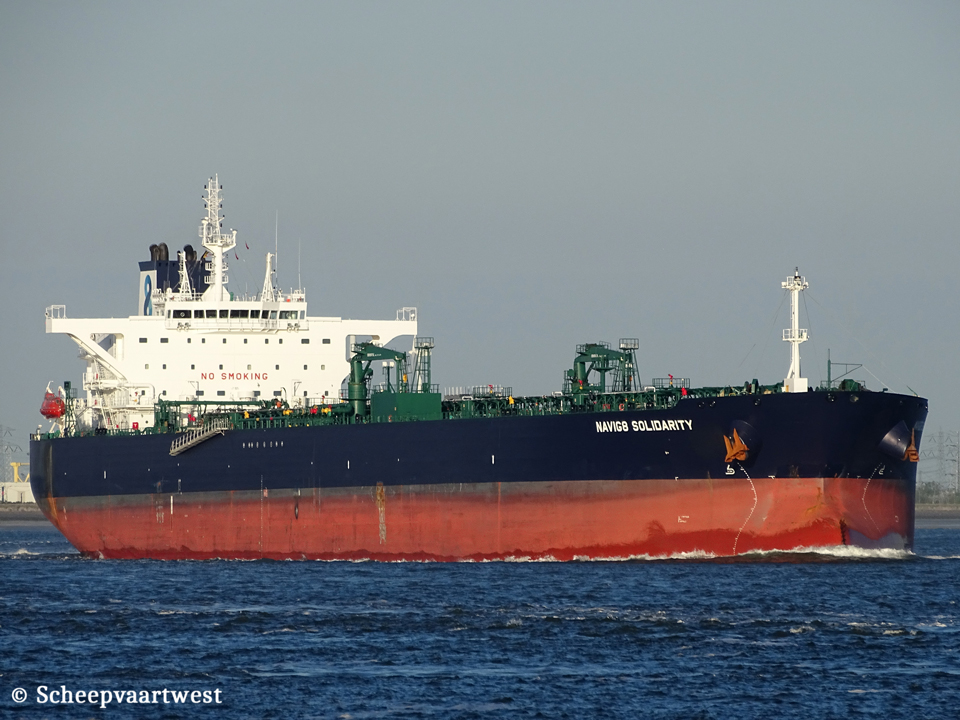

NAVIG8 SOLIDARITY |
|
Type |
Oil product tanker |
|
IMO-number |
9708576 |
|
Call sign |
V7JN7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
64.031 t Suez: 64.801,79 t |
|
DWT |
109.999 t |
|
NT |
32.073 t Suez: 54.331,34 t Panama: 52.495 t |
|
Displacement |
130.149,1 t |
|
Length |
249,90 m overall 241,30 m between perpendiculars |
|
Breadth |
44,00 m moulded |
|
Draught |
13,60 m |
|
Keel to mast end |
52,40 m |
|
Freeboard |
6.874 mm |
|
Depth |
21,50 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2015 |
|
Keel laid |
16/02/2015 |
|
Launch date |
17/08/2015 |
|
Date of completion |
23/11/2015 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering Co. Ltd. 940 Gongdan-Ro Gwangdo-Myeon, Tongyoeng-Si,Gyung South Korea |
|
Yard number |
S3080 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/STX 6G60ME-C9.2 - 2 stroke single acting 6 cylinder 600 x 2.292 mm combustion engine 11.350 kW / 15.431 hpat 80,0 rpm Manufacturer: STX Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
2x Auxiliary boiler - 18,0 MPa each 1x Exhaust gas economizer - 21,0 MPa Builder: KangRim |
|
Generators |
3x Main diesel generatorsets each 900 kW |
|
Number of tanks |
14 |
|
Caro tank capacity |
Liquid: 127.851 m³ |
|
Number of pumps |
3x Cargo pumps each 3.000 m³/h |
|
Tank capacities |
Fuel oil: 2.875,8 m³ Fresh water: 1.993,4 m³ Water ballast: 42.568,9 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,0 t 1x Hose handling Crane, upper deck(Port) - SWL 15,0 t 1x Hose handling Crane, upper deck(Starboard) - SWL 15,0 t 1x Provision Crane, Upper Deck (Starboard) - SWL 2,0 t 1x Provision crane, A-Deck(Port) - SWL 4,0 t |
|
Crew size |
30 |
|
Operator |
Navig8 Shipmanagement Private Ltd. |
|
Registered owner |
Navig8 Product Tankers 3 Inc. |
|
Renamed |
2018 STI Solidarity Marshall Islands, Majuro - call sign: V7JN7 Owner: Haonian International Ship Lease Co., Limited Manager: Scorpio Marine Management (India) Private Limited |
|
Latest data adjustment |
31 October 2022 |
