Westerschelde 09 December 2016 |
|
Name |

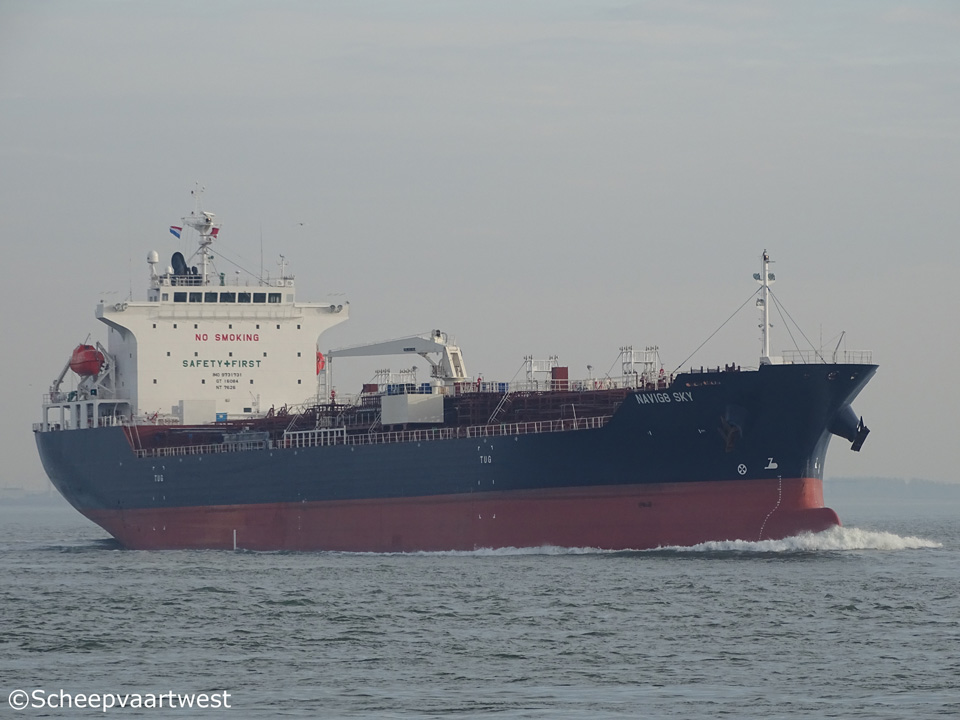

NAVIG8 SKY |
|
Type |
Oil/Chemical carrier |
|
IMO-number |
9731731 |
|
Call sign |
V7ST2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
16.084 t registered |
|
DWT |
25.193,27 t |
|
NT |
7.626 t registered |
|
Length |
160,00 m overall |
|
Breadth |
25,00 m moulded |
|
Draught |
Summer: 10,37 m |
|
Moulded L x B x D |
149,80 x 25,00 x 14,80 m |
|
Registered L x B x D |
149,97 x 25,00 x 14,80 m |
|
Freeboard |
4.466 mm |
|
Depth |
14,80 m moulded |
|
Speed |
Max.: 15,4 knots |
|
Built |
2016 |
|
Keel laid |
09.12.2015 |
|
Launch date |
06.02.2016 |
|
Date of completion |
10.08.2016 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. |
|
Yard number |
617 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x B&W 5S46ME-B8.3 - 2 stroke 5 cylinder 460 x1.932 mm diesel engine 5.200 kW at 110 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation:19,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 2.406 kVA |
|
Cargo tank capacity |
Liquid: 30.020 m³ incl. slop tanks |
|
Segregation |
18 |
|
Tank capacities |
Fuel oil: 1.186,91 m³ Fresh water: 549,69 m³ Ballast: 9.400 m³ |
|
Accommodation |
25 |
|
Manager |
TB Marine Shipmanagement GmbH & Co. KG Paul-Dessau-Straße 6 |
|
Owner |
Navig8 Chemicals Tankers Inc. |
|
Registered owner |
Navig8 Chemical Tankers 20 Inc |
|
Latest data adjustment |
31 December 2016 |
