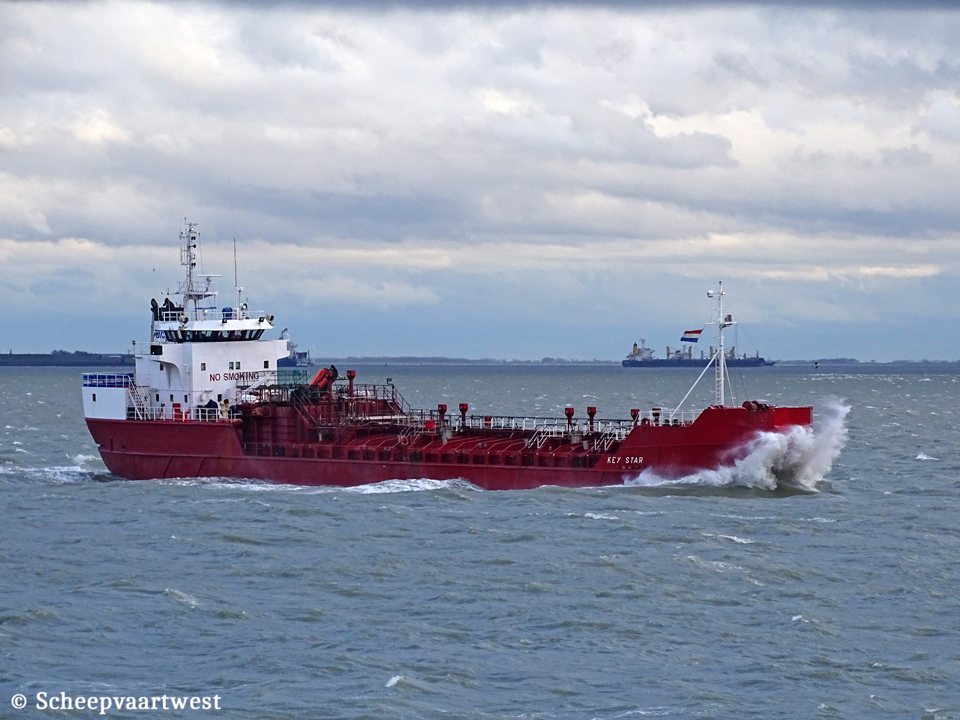

| Westerschelde 17 June 2018 |
 |
 |
 |
|||

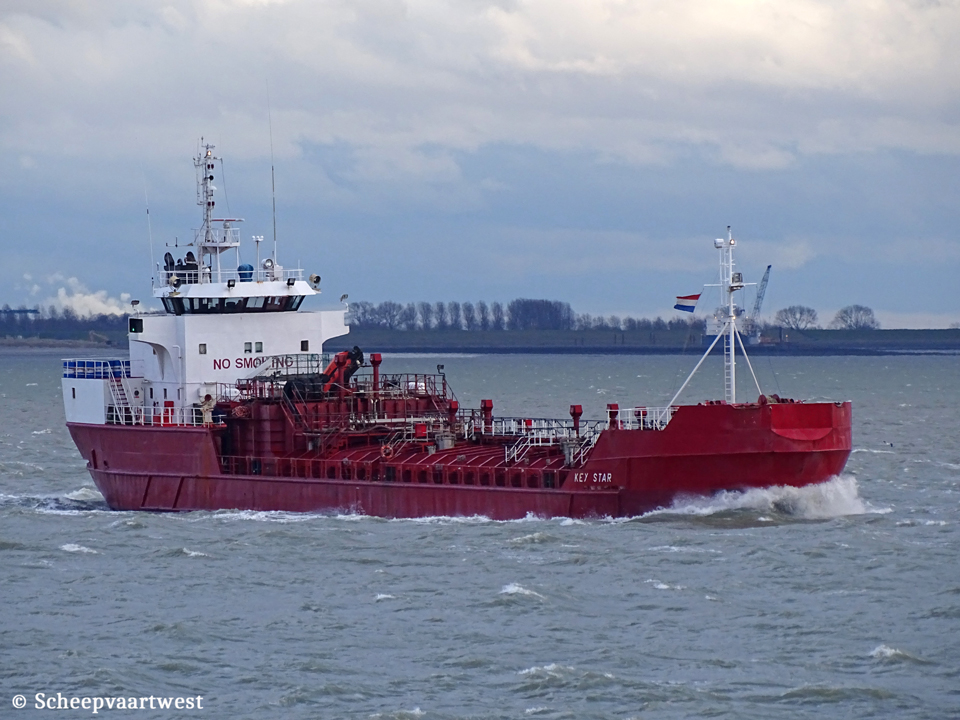

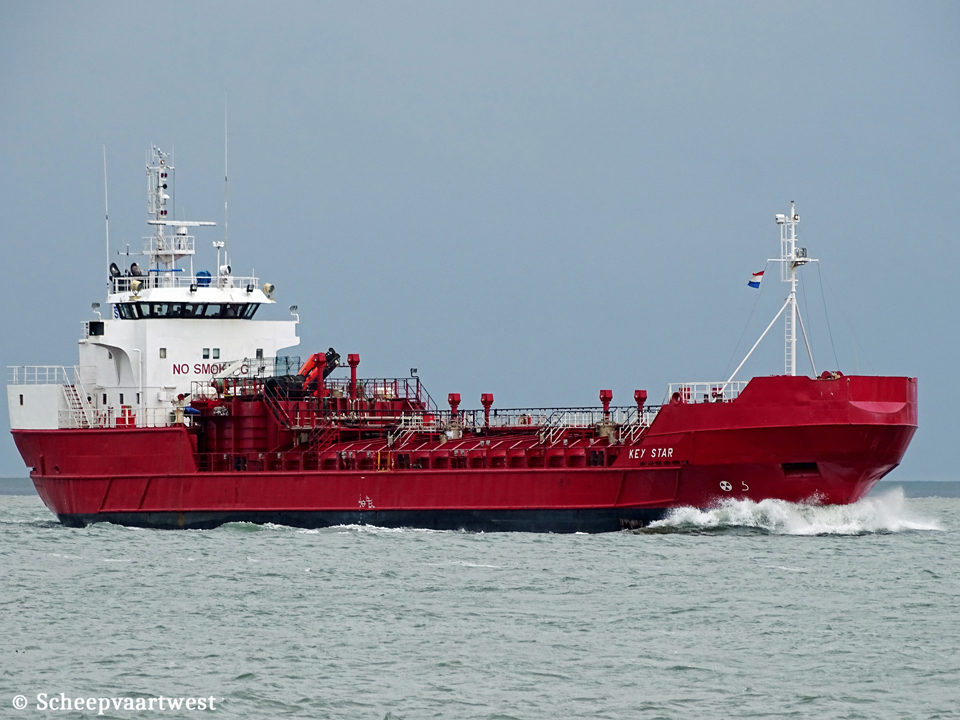

| Westerschelde 17/06/18 | Westerschelde 20/12/19 | Westerschelde 20/12/19 | |||
|
Name |
KEY STAR |
|
Previous names |
1992 - 2003 Sava Star 2003 - 2011 Orastar |
|
Type |
Chemical tanker |
|
IMO-number |
8719102 |
|
Call sign |
5BFN3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
1992 - 2011 Norway, Bergen - Call sign: LAH5 |
|
GT |
2.160 t |
|
DWT |
Summer: 3.650 t Winter: 3.546 t |
|
NT |
1.009 t |
|
Length |
74,65 m overall 70,02 m between perpendiculars |
|
Breadth |
12,70 m moulded |
|
Draught |
Summer: 6,02 m |
|
Keel to mast end |
26,50 m |
|
Depth |
8,60 m moulded |
|
Speed |
11,0 knots |
|
Built |
1992 |
|
Launch date |
07/10/1991 |
|
Date of completion |
05/1992 |
|
Builder |
Sava Shipyard Sremska Macvanska Mitrovica Serbia ex: Yugoslavian |
|
Yard number |
300 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Bergen Diesel KRM 8 - 4 stroke 8 cylinder 250 x 300 mm combustion engine 1475 kW / 2.004 hp at 750 rpm Built: 1992 |
|
Electrical propulsion gen. |
1x 440 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHO 48,50 m² - 8,0 bar 1x CHO 276-03/A 48,50 m² - 8,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V |
|
Generators |
3x Diesel generatorsets each 162 kVA - 130 kW - 177 hp |
|
Bow thruster |
1x 220 kW / 300 hp |
|
Number of tanks |
10 |
|
Cargo tank capacity 98% |
Tank 1P: 52,68 m³ Tank 1S: 52,11 m³ Tank 2P: 280,22 m³ Tank 2S: 290,37 m³ Tank 3P: 588,11 m³ Tank 3S: 598,22 m³ Tank 4P: 593,31 m³ Tank 4S: 592,11 m³ Tank 5P: 280,97 m³ Tank 5S: 285,09 m³ Total: 3.613,2 m³ |
|
Loading rate |
600 m³/h |
|
Discharge rate |
600 m³/h |
|
Number of pumps |
3x Cargo pumps each 205 m³/h |
|
Cargo lines |
8 inches |
|
Number of manifold |
3 each side |
|
Manifolds |
Height deck to manifold: 2,80 m Distance rail to manifold: 4,23 m Distance bow centre manifold: 45,871 m Distance between manifolds: 0,96 m |
|
Commercial manager |
Gullfonn Management AS 5953 Fonnes Norway |
|
ISM manager |
Blue Light Star Marine Service Pvt. Ltd. Suite H, Marine House, 93, Dr Maheshwari Road Sandhurst Road Mumbai, 400009 India |
|
Registered owner |
Fonnship AS Bergen Norway |
|
Renamed |
02/2023 Nor Star Guinea-Bissau, Bissau - Call sing: J5AE9 |
|
Latest data adjustment |
27 January 2024 |
