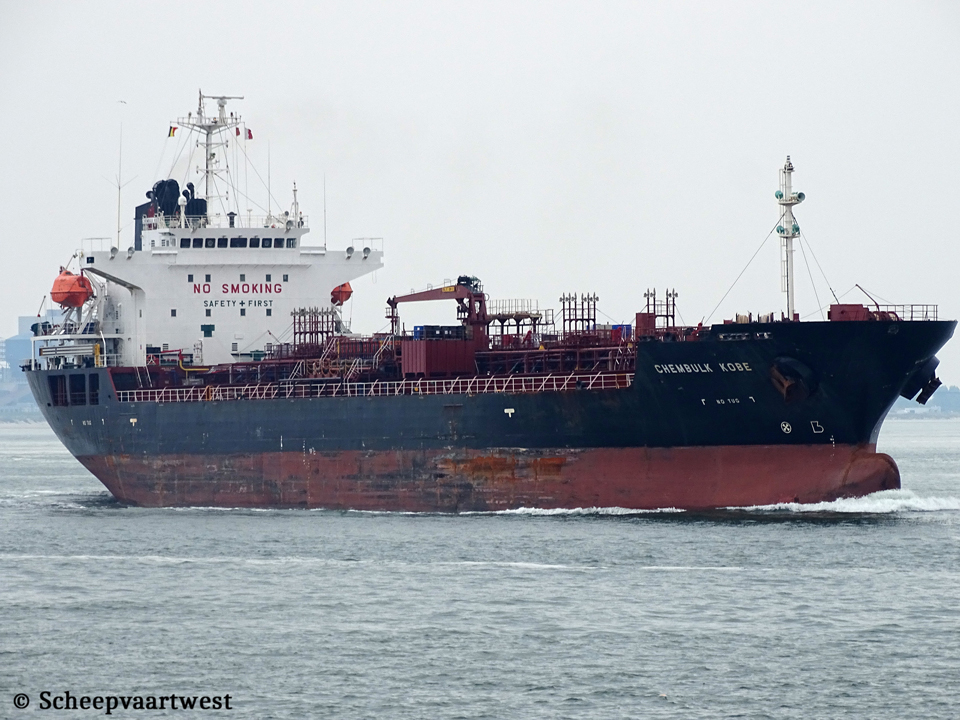

Chembulk Kobe IMO 9263136 01
Westerschelde 17 May 2019



Name

CHEMBULK KOBE

Type

Chemical/Oil products tanker

IMO-number

9263136

Call sign

V7OP4

Flag

Marshall islands

Port of registry

Majuro

Previous flags

2002 - 2015 republic of Singapore, Singapore City - Call sign: 9VFA6

GT

11.573 t

DWT

21.183 t

NT

6.084 t

Length

145,50 m overall

137,00 m between perpendiculars

Breadth

23,73 m extreme

Draught

10,13 m

Reg. dimensions L x B x D

137,92 x 23,70 x 13,35 m

Rule Dimensions L x B x D

137,00 x 23,70 x 13,35 m

Keel to mast end

37,58 m

Freeboard

3.254 mm

Depth

13,35 m

Speed

Service: 14,3 knots

Max: 15,5 knots

Built

2002

Keel laid

27/01/2002

Launch date

17/05/2002

Date of completion

30/07/2002

Builder

Usuki Shipyard Co., Ltd.

Usuki

Japan

Yard number

1676

Hull material

Steel

Hull type

Double hull

Main engine

1x Kawasaki/MAN-B&W 6S42MC - 2 stroke 6 cylinder 420 x 1.764 combustion engine 6.150 kW / 8.362 hp at 136,0 rpm

Builder: Kawasaki Heavy Industries, Ltd. Precision Machinery Business Division - Japan

Propellers

1x Fixed pitch propeller

Boilers

Auxiliary Boiler WTB - 9,0 kg/cm²

Heating surface: 184,2

Economizer EGB - 13,5 kg/cm²

Heating surface: 151,0

Builder: Miura Co., Ltd., Matsuyama - Japan

Generators

3x Diesel generatorsets each 550 kVA / 450 Volt

Bow thruster

1x 681 kW

Number of tanks

20 + 2 slop tanks

Cargo tank capacity

Liquid: 22.636 m³

Number of pumps

20x Cargo pumps each 250 m³/h

Tank capacities

Fuel oil: 1.086,5 m³

Fresh water: 612,5 m³

Water ballast: 7.322,1 m³

Commercial manager

Chembulk Ocean Transport LLC

175, Rennell Drive,

Southport CT 06890-1491

USA

ISM manager

Norstar Ship Management Pte. Ltd.

Registered owner

Chembulk Kobe LLC

Disponent owner

Chembulk Ocean Transport LLC

Renamed

2020 Carp

Gabon - Call sign: TRA120

Manager: Ovtrans Petrol Transport - Vietnam

Owner: Sao Viet Petrol Transportation - Vietnam

Latest data adjustment

19 July 2022
